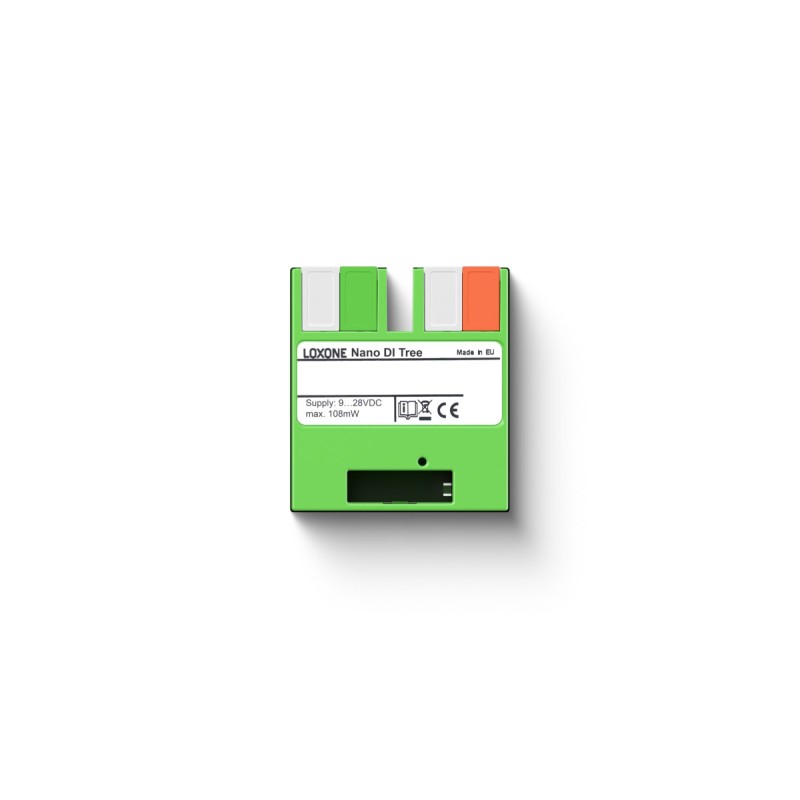

Nano DI Tree
  • Nano DI Tree
  • Nano DI Tree
  • Nano DI Tree
  • Nano DI Tree
  • Nano DI Tree

Nano DI Tree

100242
Loxone
Kč2,049
Tax excluded
Kč430 Tax
Kč2,479 Tax included
Quantity
3567 Items

Product Details
100242
3567 Items

Data sheet

Product Characteristics: Colours
Green: RAL 6018
Electrical Specifications: Supply voltage
9 … 28 V DC
Electrical Specifications: Power consumption
max. 0.108 W
Electrical Specifications: Power loss at max. load
max. 0.108 W
Ambient Conditions: Temperature
-40 … 70 °C / -40 … 158 °F
Ambient Conditions: Humidity
max. 95 % RH (non-condensing)
Ambient Conditions: Ingress protection
IP20
Connection Terminals: Terminal type
24 V DC & Loxone Tree; DG220B
Connection Terminals: Wire cross-section
0.28 … 0.8 mm² / AWG 23 … 18
Connection Terminals: Stripping length
5 … 6 mm / 0.2 … 0.24”
Connection Terminals: Temperature resistance
-40 … 105 °C / -40 … 221 °F
Product Characteristics: Finish
Matte
Weight & Dimensions: Net weight
54 g
Weight & Dimensions: Product dimensions
38.3 x 34.3 x 10.5 mm / 1.50 x 1.35 x 0.41” (L x W x H)
Certifications & Standards: Standards
UL 62368-1:2019 Ed.3+R:22Oct2021; CSA C22.2#62368-1:2019 Ed.3+U1; IEC 62368-1:2018
Interfaces: LOXONE Tree
connection with Miniserver / Tree Extension
Inputs: Digital (6)
Logic 0: 0 … 2.2 V DC; Undefined: 2.3 … 4.9 V DC; Logic 1: 5 … 24 V DC; Ri = 57 kOhm; 24 V Output: max. 0.1 A; Useable as frequency counter: ; - Max. frequency: 500 Hz; - Min. pulse width: 1 ms; - Accuracy: ± 1 Hz
Connecting Cable: Wire cross-section
0.2 mm² / AWG 24
Connecting Cable: Stripping length
8 mm / 0.3"
Connecting Cable: Temperature resistance
80 … 105 °C / 176 … 221 °F
Connecting Cable: Length
250 mm / 9.84"
Datasheet

Electrical Specifications

Supply voltage 9 … 28 V DC
Power consumption max. 0.108 W
Power loss at max. load max. 0.108 W

Inputs

Digital (6) Logic 0: 0 … 2.2 V DC
Undefined: 2.3 … 4.9 V DC
Logic 1: 5 … 24 V DC
Ri = 57 kOhm
24 V Output: max. 0.1 A
Useable as frequency counter:
- Max. frequency: 500 Hz
- Min. pulse width: 1 ms
- Accuracy: ± 1 Hz

Interfaces

LOXONE Tree Connection with Miniserver / Tree Extension

Ambient Conditions

Temperature -40 … 70 °C / -40 … 158 °F
Humidity max. 95 % RH (non-condensing)
Ingress protection IP20

Connection Terminals

Terminal type 24 V DC & Loxone Tree
DG220B
Wire cross-section 0.28 … 0.8 mm² / AWG 23 … 18
Stripping length 5 … 6 mm / 0.2 … 0.24”
Temperature resistance -40 … 105 °C / -40 … 221 °F

Connecting Cable

Wire cross-section 0.2 mm² / AWG 24
Stripping length 8 mm / 0.3"
Temperature resistance 80 … 105 °C / 176 … 221 °F
Length 250 mm / 9.84"

Connection Diagram

Connection Diagram Connection Diagram

Product Characteristics

Colours Green: RAL 6018
Finish Matte

Weight & Dimensions

Net weight 54 g
Total weight 74 g
Product dimensions 38.3 x 34.3 x 10.5 mm / 1.50 x 1.35 x 0.41” (L x W x H)
Product dimensions drawing Product dimensions drawing
Pack size 79 x 79 x 41 mm / 3.11 x 3.11 x 1.61” (L x W x H)

Certifications & Standards

Standards UL 62368-1:2019 Ed.3+R:22Oct2021
CSA C22.2#62368-1:2019 Ed.3+U1
IEC 62368-1:2018
