| Nominal voltage |
2 x 2 x 0,8 mm (Data wires Tree / sensory 24V): max. 25 VDC 2 x 1,5 mm² (Power wires): 230 VAC The power wire with 2 x 1.5 mm² can be loaded with 230 V, but the data wire must not be connected to a 230 V circuit. Before connecting the data conductors, the entire circuit must be limited to a maximum of 25 V. |
|---|---|
| Test voltage | 5500 VAC |
| CPR class | Eca |
| Temperature |
moved: -15 … 70 °C / 5 … 158 °F permanently installed: -30 … 80 °C / -22 … 176 °F |

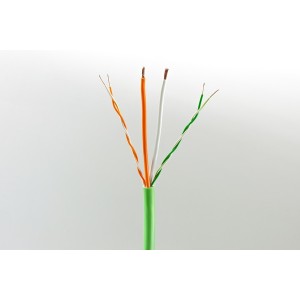

| Data wires (LOXONE Tree): |
2x 0.8 mm Ø (0.5 mm² / AWG21) - solid copper conductor - twisted pair - colours: green, green-white |
|---|---|
| Conductor wires for low-power devices |
2x 0.8 mm Ø (0.5 mm² / AWG21) - solid copper conductor - twisted pair - colours: orange, orange-white |
| Conductor wires for high-power devices |
2x 1.5 mm² / AWG16 - fine-stranded copper conductor - conductor construction: 28 x 0.245 mm Ø - colours: orange, white-orange |
| Meter markings | Yes |
| CU-Content | 50 kg/km |
| Colours | Green: RAL 6018 |
|---|---|
| Material Isulating cover and cover | PVC |
| Finish | Matte |

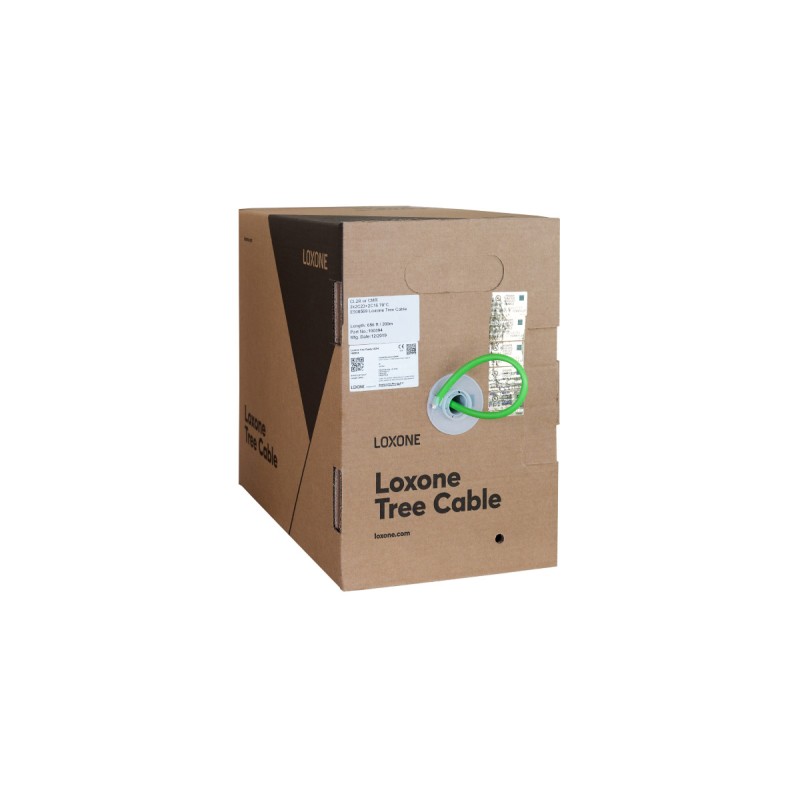

| Packaging presentation | 200 m / 656 ft |
|---|---|
| Net weight | 19 kg / 41.9 lb |
| Total weight | 19.7 kg / 43.4 lb |
| Product dimensions | 7.5mm / 0.30” (D) |

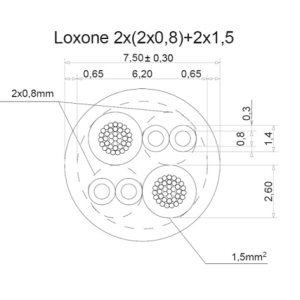

| Product dimensions drawing |
|
| Packaging dimensions | 495 x 270 x 495 mm / 19.49 x 10.63 x 19.49” (L x W x H) |
| Ingress protection | IP20 |
|---|---|
| Certifications | UL CL2, 2x2C21+2C16, UL File No. E508569 |
