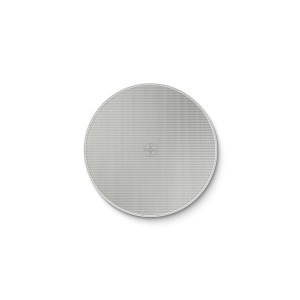

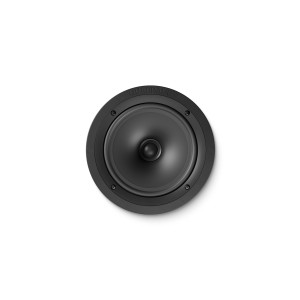

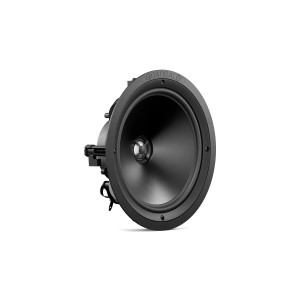

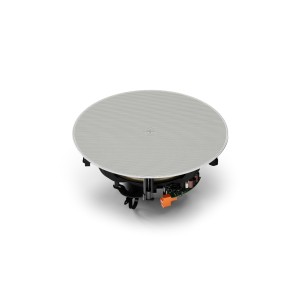

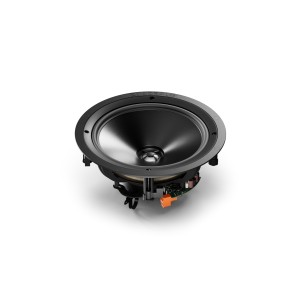

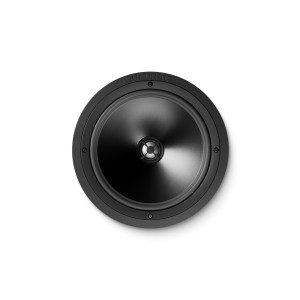

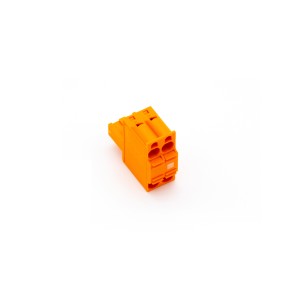

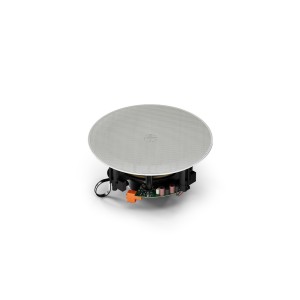

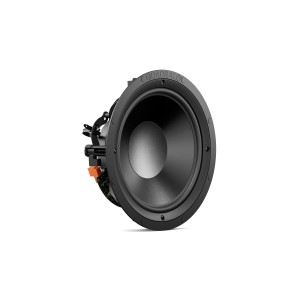

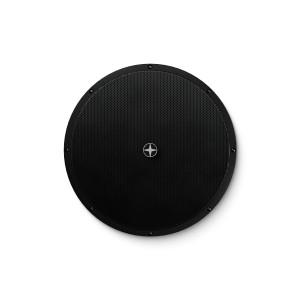

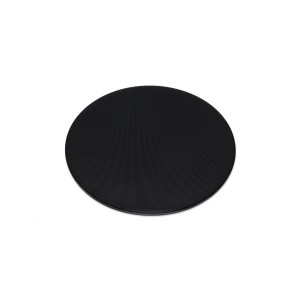

Install Speaker 10 Client

610153
Loxone
Kč9,230
Tax excluded
Kč1,938 Tax
Kč11,168 Tax included
Quantity
551 Items

Product Details

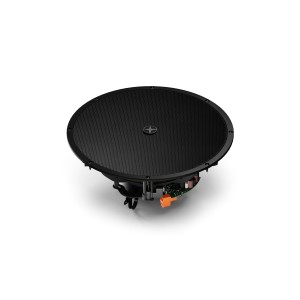

610153
551 Items

Data sheet

Product Characteristics: Colours
Speaker: Black, RAL9004; Front grille: White, RAL9003
Ambient Conditions: Humidity
max. 95 % RH (non-condensing)
Connection Terminals: Terminal type
24VDC: TFKC 2.5; Tree Turbo, MCI: DG220B
Connection Terminals: Wire cross-section
24VDC: 1 ... 2.5mm² / AWG17... 12; Tree Turbo, MCI: 0.28 ... 0.8mm² / AWG23 ... 18
Connection Terminals: Stripping length
24VDC: 10mm / 0.39“; Tree Turbo, MCI: 5 … 6mm / 0.2 … 0.24"
Connection Terminals: Temperature resistance
24VDC: -40 ... 70°C / -40 ... 158°F; Tree Turbo, MCI: -40 ... 105°C / -40 ... 221°F
Product Characteristics: Finish
Matte
Weight & Dimensions: Net weight
2.85 kg
Weight & Dimensions: Product dimensions
289 x 111 mm / 11.38 x 4.37" (Ø x D)
Certifications & Standards: Degree of pollution
3
Audio Specifications: Speaker type
2-Way active speaker
Audio Specifications: Frequency range
35 ... 23000Hz
Audio Specifications: Tweeter Ø
32 mm / 1.25“
Audio Specifications: Woofer Ø
254 mm / 10“
Audio Specifications: Woofer membrane material
Altima (Aluminium-, Titanium-, Magnesium- composite)
Weight & Dimensions: Hole cut out size
258 mm / 10.2" (Ø)
Weight & Dimensions: Installation depth
108 mm / 4.25"
Weight & Dimensions: Max. panel thickness
36 mm / 1.41"
Supply and Power: Power consumption
0,05W (Standby); 35W (Peak)
Audio Specifications: Crossover frequency
1 600 Hz
Audio Specifications: Tweeter dome material
Titanium
Supply and Power: Supply voltage
18VDC ... 26VDC
Interfaces: Master-Client Interface (MCI)
up to 20 speaker clients per Master; up to 30m wire length between clients; up to 600m total length; Wiring: Twisted pair, Line topology
Audio Specifications: Class-D Amplifier
35W nominal power; 70W peak power
Audio Specifications: SPL
108dB @ 1m max.
Connection Terminals: Conductor type
24VDC: Stranded / Solid; Tree Turbo, MCI: Solid
Connection Terminals: Connection type
24VDC: Push-in; Tree Turbo, MCI: Push-in

Snadná instalace na libovolné místo

Reproduktory Master/Client lze namontovat na strop, stěnu nebo do nábytku. Pro použití v otevřeném prostoru (např. perforovaný akustický strop) důrazně doporučujeme odpovídající back box.


Install Speaker 7

Passiv/Master/Client

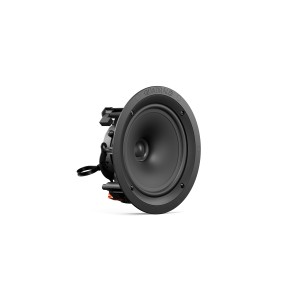

Install Speaker 10

Passiv/Master/Client

Install Sub 10

Master/Client

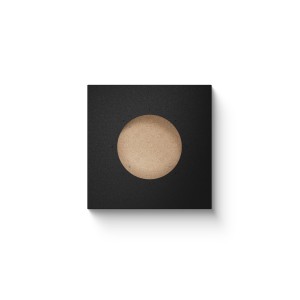

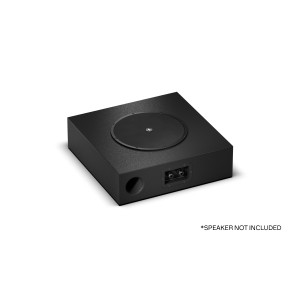

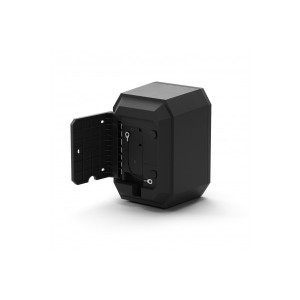

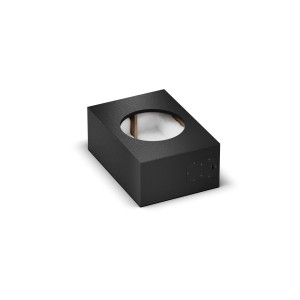

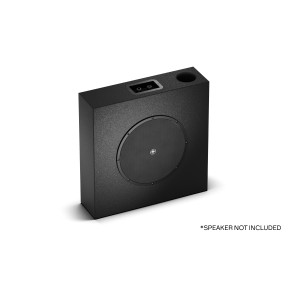

Surface Box for 10" Install Speaker

Č. p.: 610159

Č. p.: 610172


✔

✔

Surface Box for 7" Install Speaker

Č. p.: 610158

Č. p.: 610171

✔

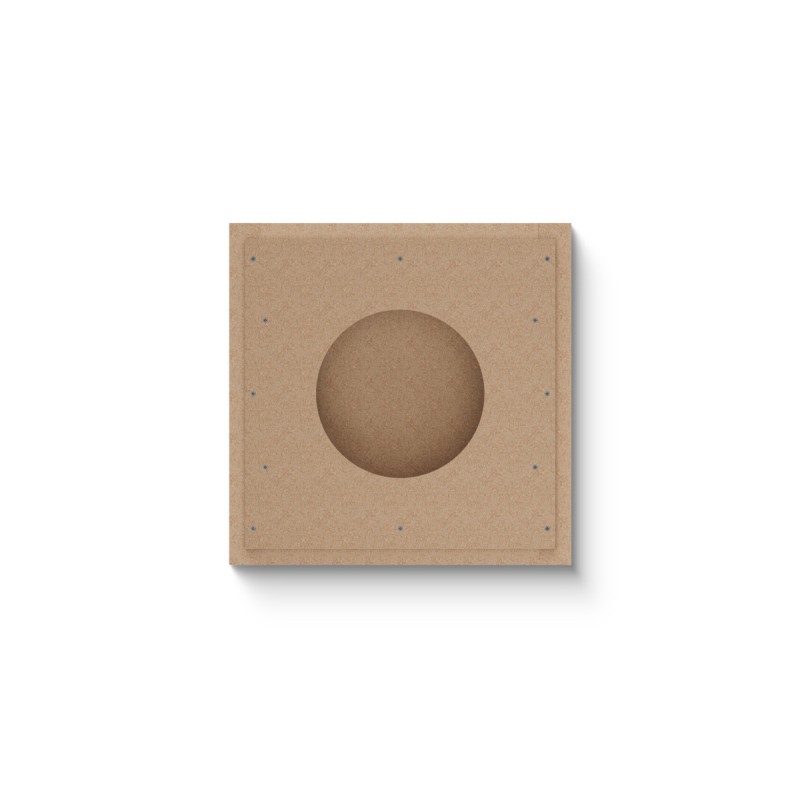

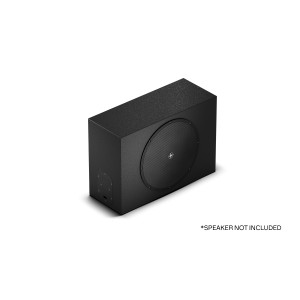

Box for 10" Install Speaker

Č. p.: 610164


✔

✔

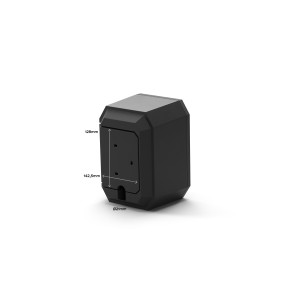

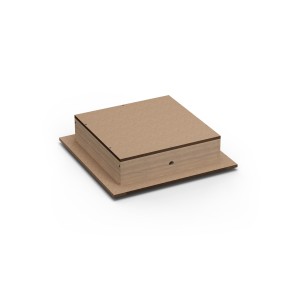

Backbox for 10" Install Speaker

Č. p.: 610160


✔

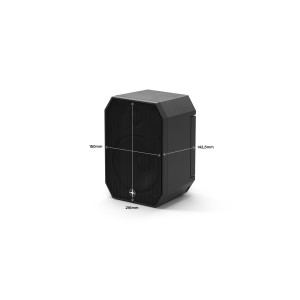

Backbox for 7" Install Speaker

Č. p.: 200202

✔

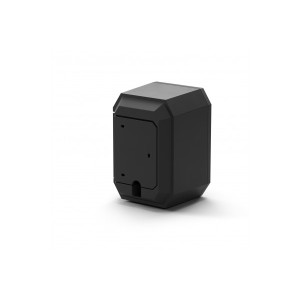

Concrete Backbox for 7" Install Speaker

Č. p.: 610161

✔



Concrete Backbox for 10" Install Speaker

Č. p.: 610173


✔


Vlastní box na míru

(např. do nábytku)

Nejméně 7 litrů

Výplň z tlumicího materiálu.

Nejméně 17 litrů

Výplň z tlumicího materiálu.

Nejméně 30 litrů

Výplň z tlumicího materiálu.

Doporučení pro instalaci: vzdálenost od stěn
Počet reproduktorů v místnosti
Datasheet

Supply and Power

Supply voltage 18VDC ... 26VDC
Power consumption 0,05W (Standby)
35W (Peak)

Interfaces

Master-Client Interface (MCI) up to 20 speaker clients per Master
up to 30m wire length between clients
up to 600m total length
Wiring: Twisted pair, Line topology

Audio Specifications

Speaker type 2-Way active speaker
Class-D Amplifier 35W nominal power
70W peak power
Frequency range 35 ... 23000Hz
Crossover frequency 1 600 Hz
SPL 108dB @ 1m max.
Woofer Ø 254 mm / 10“
Woofer membrane material Altima (Aluminium-, Titanium-, Magnesium- composite)
Tweeter Ø 32 mm / 1.25“
Tweeter dome material Titanium

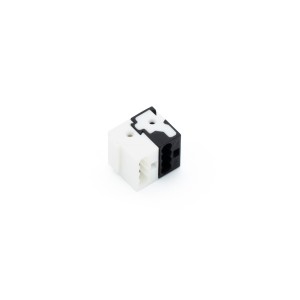

Connection Terminals

Terminal type 24VDC: TFKC 2.5
Tree Turbo, MCI: DG220B
Wire cross-section 24VDC: 1 ... 2.5mm² / AWG17... 12
Tree Turbo, MCI: 0.28 ... 0.8mm² / AWG23 ... 18
Conductor type 24VDC: Stranded / Solid
Tree Turbo, MCI: Solid
Stripping length 24VDC: 10mm / 0.39“
Tree Turbo, MCI: 5 … 6mm / 0.2 … 0.24"
Temperature resistance 24VDC: -40 ... 70°C / -40 ... 158°F
Tree Turbo, MCI: -40 ... 105°C / -40 ... 221°F
Connection type 24VDC: Push-in
Tree Turbo, MCI: Push-in

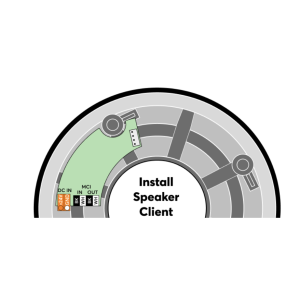

Connection Diagram

Connection Diagram Connection Diagram

Product Characteristics

Colours Speaker: Black, RAL9004
Front grille: White, RAL9003
Finish Matte

Weight & Dimensions

Net weight 2.85 kg
Total weight 3.45 kg
Hole cut out size 258 mm / 10.2" (Ø)
Installation depth 108 mm / 4.25"
Max. panel thickness 36 mm / 1.41"
Product dimensions 289 x 111 mm / 11.38 x 4.37" (Ø x D)

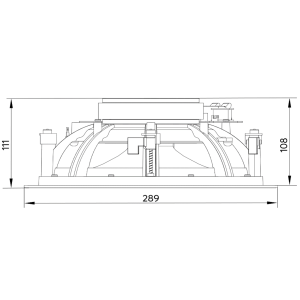

Product dimensions drawing Product dimensions drawing
Pack size 325 x 330 x 150 mm / 12.80 x 12.99 x 5.91" (L x W x H)

Certifications & Standards

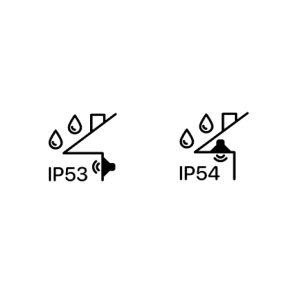

Ingress protection Ingress protection
Degree of pollution 3

Ambient Conditions

Humidity max. 95 % RH (non-condensing)
Položka Množství
Montážní šablona 1

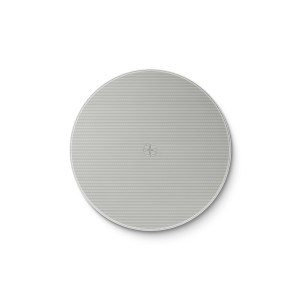

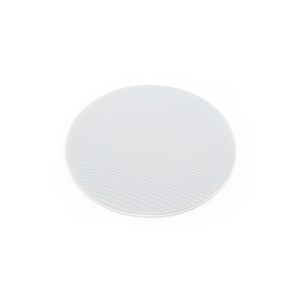

Mřížkový kryt (bílý) 1
Příbalový leták 1
