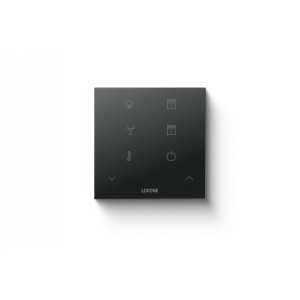

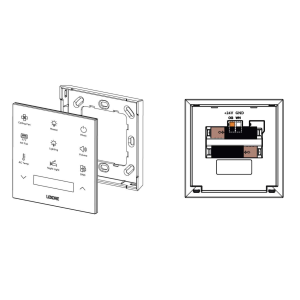

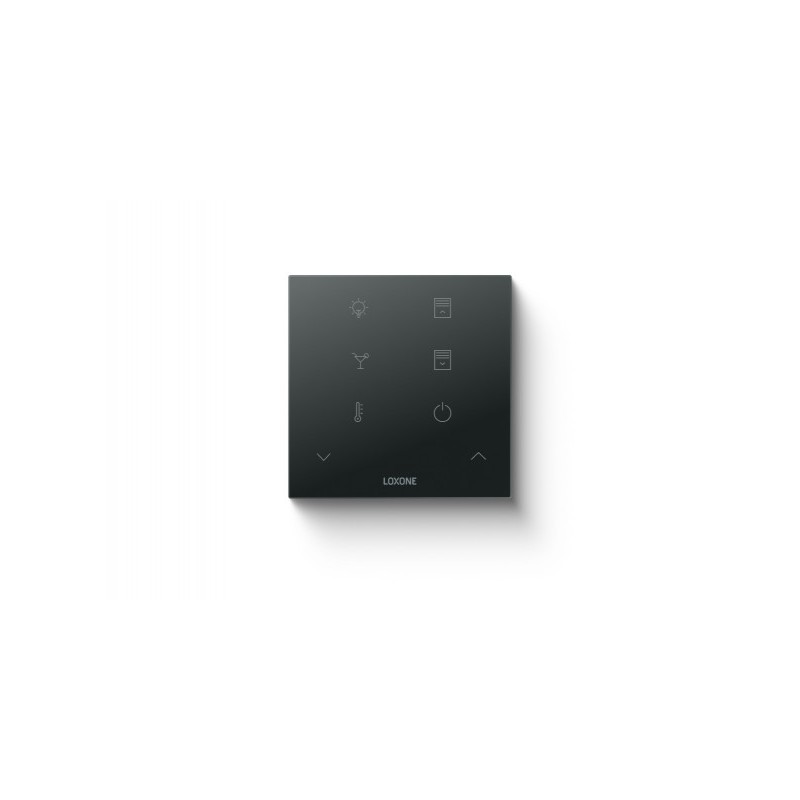

Touch Pure Flex Standard Air antracitová Gen. 1 – výběhový model

Data sheet

Product Characteristics: Colours

Black: RAL 9005

Ambient Conditions: Humidity

max. 95% r.H. (non condensing)

Connection Terminals: Terminal type

DG220B

Connection Terminals: Wire cross-section

0.28 … 0.8 mm² / AWG 23 … 18

Connection Terminals: Stripping length

5 … 6 mm / 0.2 … 0.24”

Connection Terminals: Temperature resistance

-40 … 105°C / -40 … 221°F

Product Characteristics: Finish

Matte

Weight & Dimensions: Net weight

102 g

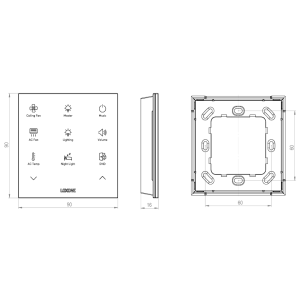

Weight & Dimensions: Product dimensions

90 x 90 x 16 mm / 3.55 x 3.55 x 0.63” (L x W x H)

Certifications & Standards: Safety class

IP44

Technical Data: Power Supply

9 … 28VDC or 2x AAA batteries

Interfaces: Interfaces

LOXONE Air: 868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW internal antenna

Technical Data: Power consumption

typ. 0.2W, max. 1.7W at display brightness 100%

Technical Data: Power loss

max. 1.7W

Technical Data: Battery Lifetime

up to 1 year

Technical Data: Touch area

capacitive touch detection 12/14 touch points

Technical Data: Click feedback

Yes

Technical Data: Temperature detection range

-40 … 125°C +/- 0.5°C -40 … 257°F +/- 0.9°F

Technical Data: Humidity detection range

0 … 100% r. H. +/- 2%, (non condensing)

Technical Data: Ambient temperature

-20 … 40°C / -4 … 104°F

Technical Data: Recommended mounting height

135cm / 53.15"
