Data sheet
| Speaker type | 2-way |
|---|---|
| Frequency range | 50…25.000Hz |
| Nominal impedance | 8 Ohm |
| Woofer membrane material | Fiber reinforced kraft paper |
| Power rating of connectors | 50W |
|---|---|
| Maximum power | 80 W |
| Crossover frequency | 2,2kHz |
| Sensitivity | 86dB |
| Tweeter dome material | Silk |
| Temperature | -30 … 70 °C / -22 … 158 °F |
|---|---|
| Humidity | max. 95 % RH (non-condensing) |

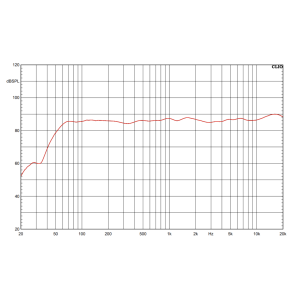

| Frequency response diagram |
|
|---|

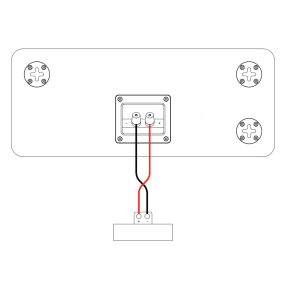

| Connection Diagram |
|
|---|
| Product dimensions | 440mm x 180mm x 112mm / 17.32" x 7.09" x 4.41" |
|---|---|
| Product dimensions | 510mm x 257mm x 184mm / 20.08" x 10.12" x 7.24" |
| Product weight | 3,75kg / 8.27lbs |
| Total weight | 4,75kg / 10.47lbs |

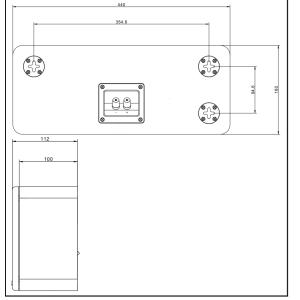

| Product dimensions drawing |
|
| Safety class | IP20 |
|---|
| Položka | Množství |
|---|---|
| Přední kryt | 1 |
| Instalační šablona | 1 |
| Krytka šroubu | 1 |
