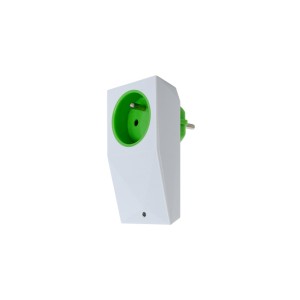

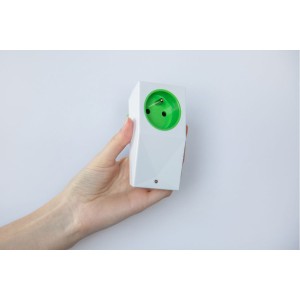

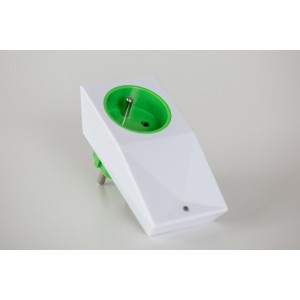

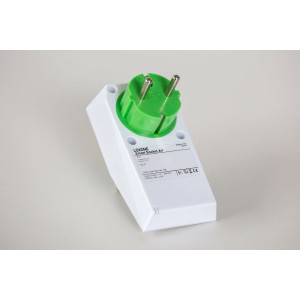

Smart Socket Air – typ E
  • Smart Socket Air – typ E
  • Smart Socket Air – typ E
  • Smart Socket Air – typ E
  • Smart Socket Air – typ E

Smart Socket Air – typ E

100120
Loxone
Kč1,994
Tax excluded
Kč419 Tax
Kč2,412 Tax included
Quantity
477 Items

Product Details
100120
477 Items

Data sheet

Product Characteristics: Colours
Green: RAL6018 White: RAL9003
Electrical Specifications: Power consumption
max. 0.50 W
Electrical Specifications: Power loss at max. load
2.3 W
Ambient Conditions: Humidity
max. 95% r.H. (non condensing)
Product Characteristics: Finish
Matte
Weight & Dimensions: Net weight
114 g
Weight & Dimensions: Product dimensions
106x53.8x29.5mm / 4.17x2.12x1.16” (LxWxH) (without plug)
Electrical Specifications: Max. inrush current
24 A
Electrical Specifications: Outputs
protective contact socket outlet (single-pole switched with internal relay, bistable) total load max. 10A (Plug Type J) total load max. 13A (Plug Types E, F, G)
Interfaces: LOXONE Air
868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW internal antenna
Electrical Specifications: Power Supply
110 ... 230VAC, 50/60Hz
Electrical Specifications: Temperature
-20 ... 35°C / -4 ... 95°F
Electrical Specifications: Temperature detection range
-40 … 125°C / -40 … 257°F; +/- 0.5°C / 0.9°F
Electrical Specifications: Power detection range
0 ... 4kW
Electrical Specifications: Energy detection range
0 ... ∞ kW/h
Electrical Specifications: Pairing button
can also be used as a push button
Certifications & Standards: Safety class
IP30
Datasheet

Electrical Specifications

Power Supply 110 ... 230VAC, 50/60Hz
Power consumption max. 0.50 W
Power loss at max. load 2.3 W
Max. inrush current 24 A
Outputs protective contact socket outlet (single-pole switched with internal relay, bistable) total load max. 10A (Plug Type J) total load max. 13A (Plug Types E, F, G)
Temperature -20 ... 35°C / -4 ... 95°F
Temperature detection range -40 … 125°C / -40 … 257°F; +/- 0.5°C / 0.9°F
Power detection range 0 ... 4kW
Energy detection range 0 ... ∞ kW/h
Pairing button can also be used as a push button

Interfaces

LOXONE Air 868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW internal antenna

Ambient Conditions

Humidity max. 95% r.H. (non condensing)

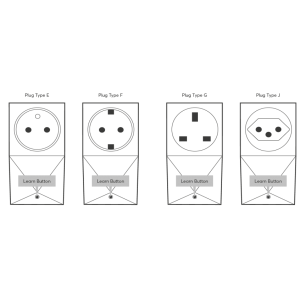

Plug Types

Plug types drawing Plug types drawing

Product Characteristics

Colours Green: RAL6018 White: RAL9003
Finish Matte

Weight & Dimensions

Net weight 114 g
Total weight 140 g
Product dimensions 106x53.8x29.5mm / 4.17x2.12x1.16” (LxWxH) (without plug)

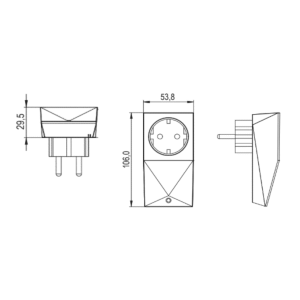

Product dimensions drawing Product dimensions drawing
Pack size 116x60x79mm / 4.57x2.36x3.11” (LxWxH)

Certifications & Standards

Safety class IP30
Comments (0)
Grade
No customer reviews for the moment.
16 other products in the same category:
Out-of-Stock Wall Display 10″

Reference: 100891

Wall Display 10″

(0)
Tablety na zdi byly vždy jen kompromisem. LOXONE Wall Display 10″ s takovými provizorními řešeními skoncuje. Přináší známé uživatelské rozhraní LOXONE ve velkém, přehledném formátu přímo na vaši zeď. Všechny důležité funkce, od osvětlení a stínění přes vnitřní klima až po audio, vidíte přehledně a ovládáte jediným dotykem. Vyvinuto jako centrální místo ve...
Kč17,050 tax excl.
Kč3,580 Tax
Kč20,630 tax incl.
More Wall Display 10″
Out-of-Stock
In stock: 0
Out-of-Stock Touch Pure Flex Battery Air zlatá

Reference: 100882

Touch Pure Flex Battery Air zlatá

(0)
Poznámka: Jde o produkt vyráběný na míru. V momentě objednání se objednávka stává závaznou a nevratnou. Počítejte prosím s dvoutýdenní čekací dobou od objednání tohoto produktu.*V pohotovostním režimu se Touch Pure Flex Air přepne do úsporného režimu. Stavové LED diody nejsou při provozu na baterii k dispozici.
Kč4,529 tax excl.
Kč951 Tax
Kč5,480 tax incl.
More Touch Pure Flex Battery Air zlatá
Out-of-Stock
In stock: 0
You might also like

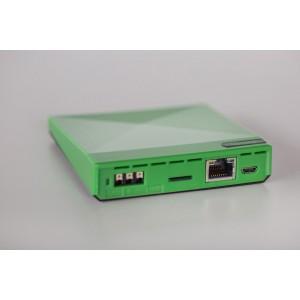

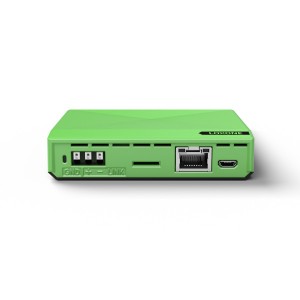

Miniserver Go
