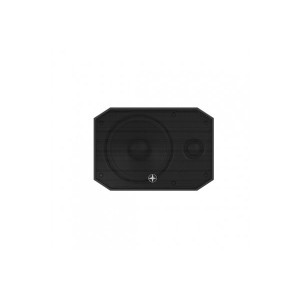

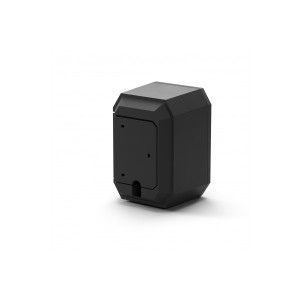

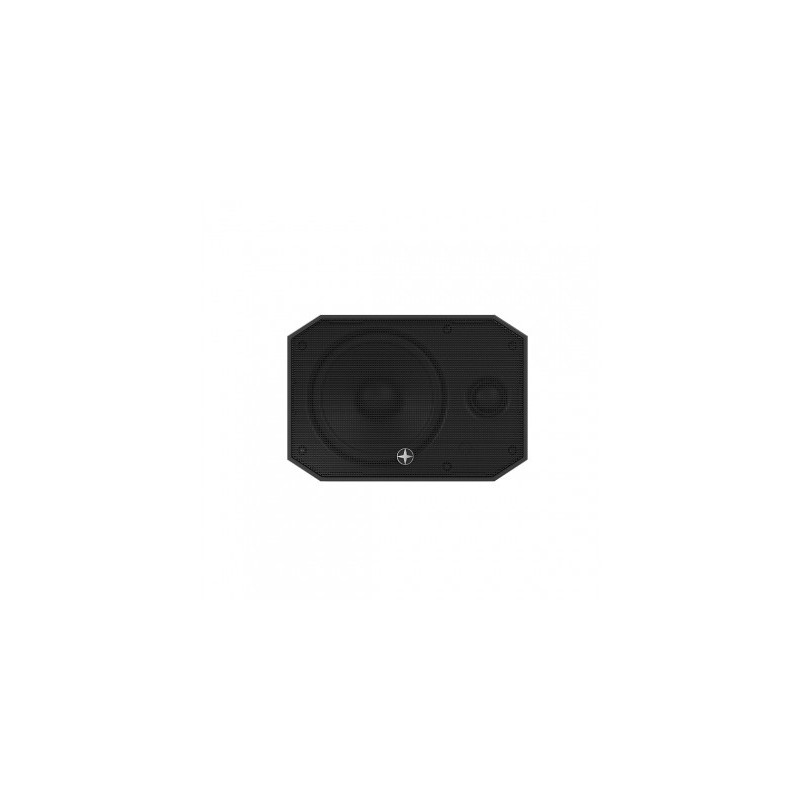

Satellite Speaker IP64 Master

Data sheet

Product Characteristics: Colours

Black: RAL 9005

Ambient Conditions: Temperature

-10…50 °C / 14…122 °F

Ambient Conditions: Humidity

max. 100 % RH (non-condensing)

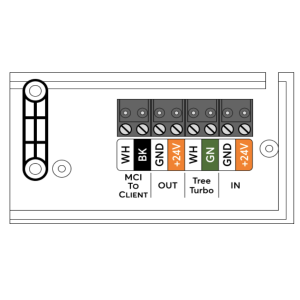

Connection Terminals: Terminal type

24VDC, Tree Turbo, MCI: ; WJ332K

Connection Terminals: Wire cross-section

24VDC, Tree Turbo, MCI: ; 0.28 ... 1.5mm² / AWG23 ... 15

Connection Terminals: Stripping length

24VDC, Tree Turbo, MCI: ; 6mm / 0.24“

Connection Terminals: Temperature resistance

24VDC, Tree Turbo, MCI: ; -40 ... 105°C / -40 ... 221°F

Product Characteristics: Finish

Matte

Weight & Dimensions: Net weight

2.65 kg

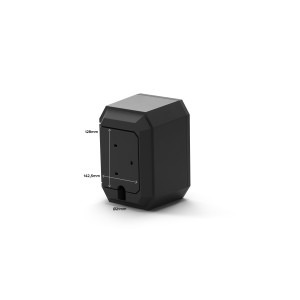

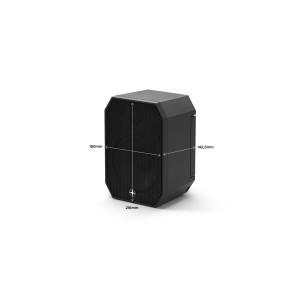

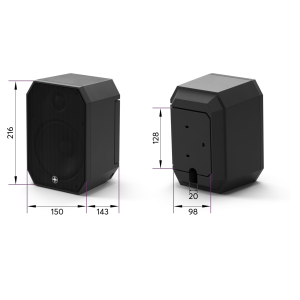

Weight & Dimensions: Product dimensions

216 x 150 x 143 mm / 8.5 x 5.9 x 5.6"

Connection Terminals: Tightening torque

24VDC, Tree Turbo, MCI: ; 0.4Nm / 0.295 lbf.ft

Interfaces: LOXONE Tree Turbo

Connection with Audioserver or Miniserver Compact

Audio Specifications: Speaker type

2-Way active speaker

Audio Specifications: Frequency range

48 … 25000Hz

Audio Specifications: Tweeter Ø

25mm / 1“

Audio Specifications: Woofer Ø

140mm / 5.5“

Audio Specifications: Woofer membrane material

Polypropylene

Supply and Power: Power consumption

1.5 W (Standby); 35 W (Peak)

Certifications & Standards: Ingress protection

IP64

Audio Specifications: Crossover frequency

1800Hz

Audio Specifications: Tweeter dome material

Silk, polymer coated

Supply and Power: Supply voltage

18…26 VDC

Interfaces: Master-Client Interface (MCI)

up to 20 speaker clients per Master; up to 30m wire length between clients; up to 600m total length; Wiring: Twisted pair, Line topology

Interfaces: Wireless

Bluetooth: Input V4.2

Audio Specifications: Class-D Amplifier

35W nominal power; 70W peak power

Audio Specifications: SPL

101dB @ 1m max.

Connection Terminals: Conductor type

24VDC, Tree Turbo, MCI: ; Stranded / Solid

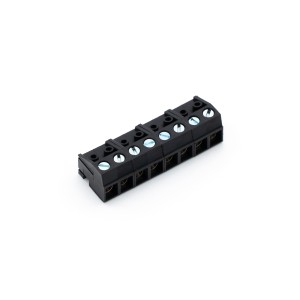

Connection Terminals: Connection type

Screw terminals
