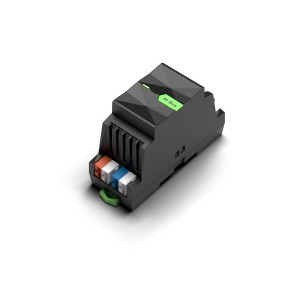

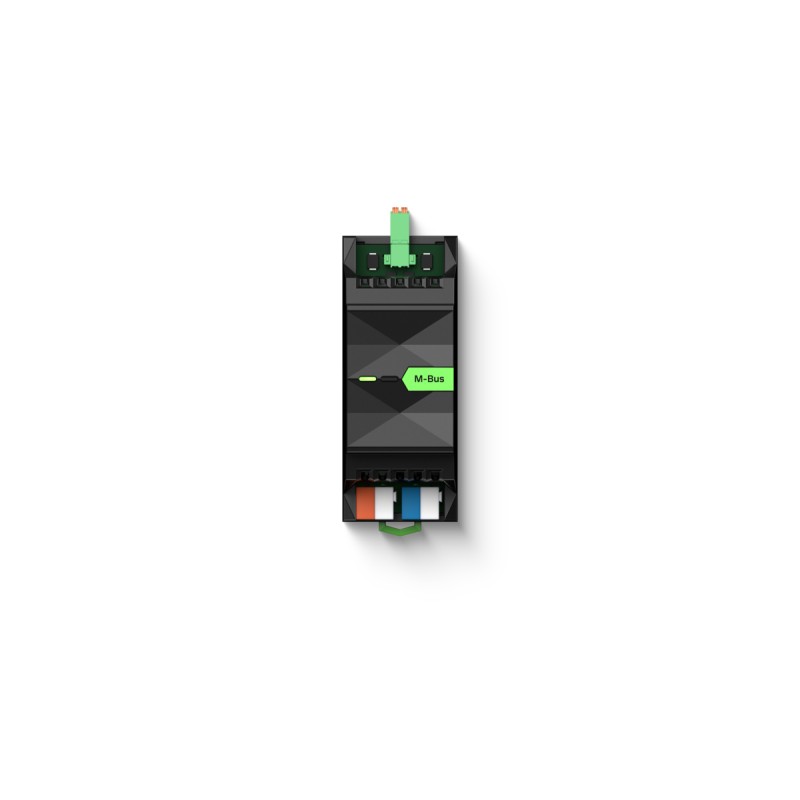

| Supply voltage | 20 … 28 VDC |
|---|---|
| Power consumption |
0.6 W (no bus load) 2.9 W (incl. 45 mA bus load) |
| Power loss at max. load | 1.3 W (at 45 mA bus load) |
| LOXONE Link | Connection with Miniserver |
|---|---|
| M-Bus |
M-Bus devices: max. 30 devices Bus length: max. 100 m Bus topologies: Bus, Line, Star, Tree Baud rate: 300 ... 9600 bd (adjustable) Bus voltage: High: 36 V, Low: 24 V Bus load: max. 45 mA / 30 unit loads, lmax: 145 mA (45 mA + 100 mA margin) |
| Temperature | -40 … 70 °C / -40 … 158 °F |
|---|---|
| Humidity | max. 95 % RH (non-condensing) |
| Ingress protection | IP20 |

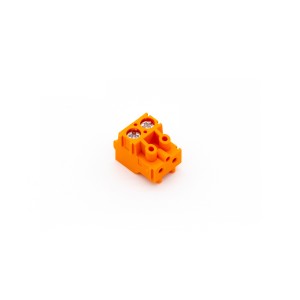

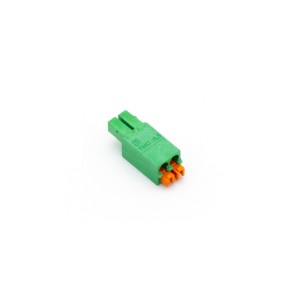

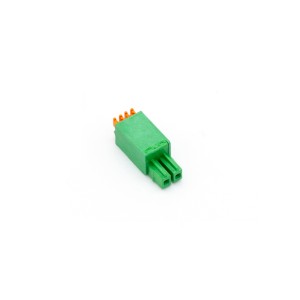

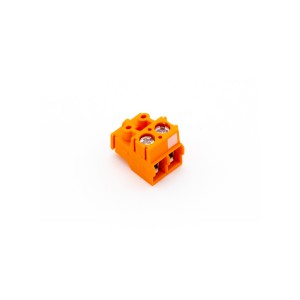

| Terminal type |
24 VDC & LOXONE Link Interface DG220B FMC 0.5 |
|---|---|
| Wire cross-section |
0.25 … 0.8 mm² / AWG 23 … 18 0.14 … 0.5 mm² / AWG 26 … 20 |
| Stripping length |
5 mm / 0.2" 7 mm / 0.28" |
| Temperature resistance |
-40 … 105 °C / -40 … 221 °F -40 … 70 °C / -40 … 158 °F |

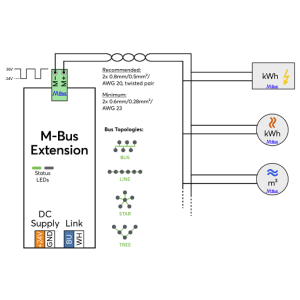

| Connection Diagram |
|
|---|
| Mounting type | DIN rail according to EN 50022, 35 mm |
|---|---|
| Colours | Black: RAL 9005 |
| Finish | Matte |
| Net weight | 63g |
|---|---|
| Total weight | 81 g |
| Product dimensions | 88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units |

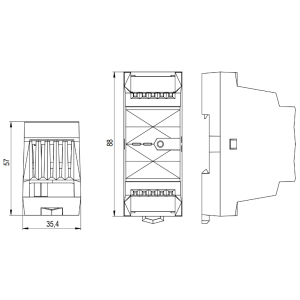

| Product dimensions drawing |
|
| Pack size | 121 x 38 x 62 mm / 4.76 x 1.50 x 2.44” (L x W x H) |
| Standards | EN 13757 |
|---|
