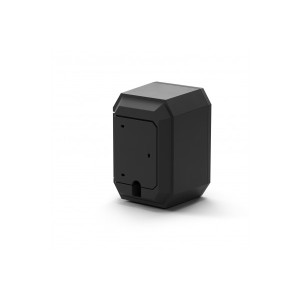

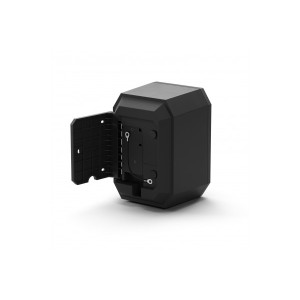

Ať už se jedná o interiér restaurace, hospody nebo komerčních prostor…
…klidně venku – díky certifikaci IP64 lze Satellite Speaker použít kdekoli.
| Supply voltage | 18…26 VDC |
|---|
| Power consumption |
0.05W (Standby) 35W (Peak) |
|---|
| Master-Client Interface (MCI) |
up to 20 speaker clients per Master up to 30m wire length between clients up to 600m total length Wiring: Twisted pair, Line topology |
|---|
| Speaker type | 2-Way active speaker |
|---|---|
| Class-D Amplifier |
35W nominal power 70W peak power |
| Frequency range | 48 … 25000Hz |
| Crossover frequency | 1800Hz |
| SPL | 101dB @ 1m max. |
| Woofer Ø | 140mm / 5.5“ |
| Woofer membrane material | Polypropylene |
| Tweeter Ø | 25mm / 1“ |
| Tweeter dome material | Silk, polymer coated |
| Temperature | -10…50 °C / 14…122 °F |
|---|---|
| Humidity | max. 100 % RH (non-condensing) |
| Terminal type | 24VDC, MCI: WJ332K |
|---|---|
| Wire cross-section |
24VDC, MCI: 0.28 ... 1.5mm² / AWG23 ... 15 |
| Conductor type | 24VDC, MCI: Stranded / Solid |
| Stripping length | 24VDC, MCI: 6mm / 0.24“ |
| Temperature resistance |
24VDC, MCI: -40 ... 105°C / -40 ... 221°F |
| Tightening torque | 24VDC, MCI: 0.4Nm / 0.295 lbf.ft |
| Connection type | 24VDC, MCI: Screw terminals |

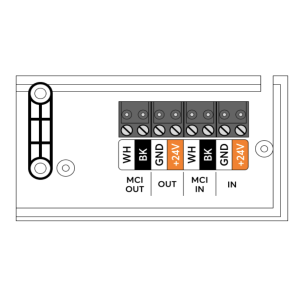

| Connection Diagram |
|
|---|
| Colours | Black: RAL 9005 |
|---|---|
| Finish | Matte |
| Net weight | 2.65 kg |
|---|---|
| Total weight | 2.89 kg |

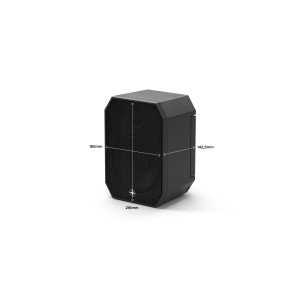

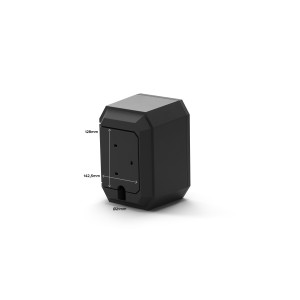

| Product dimensions | 216 x 150 x 143 mm / 8.5 x 5.9 x 5.6" |

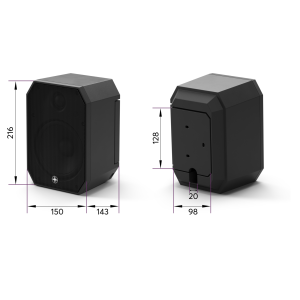

| Product dimensions drawing |
|
| Pack size | 250x180x170mm / 9.84x7.09x6.69" (LxWxH) |
| Ingress protection | IP64 |
|---|
| Položka | Množství |
|---|---|
| Instalační šablona | 1 |
| Příbalový leták | 1 |
