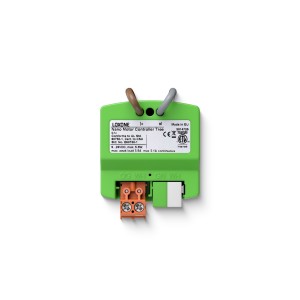

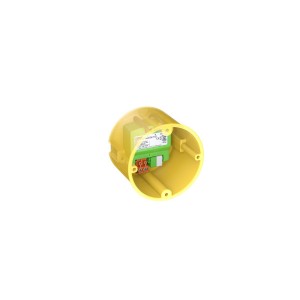

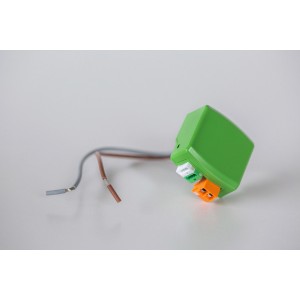

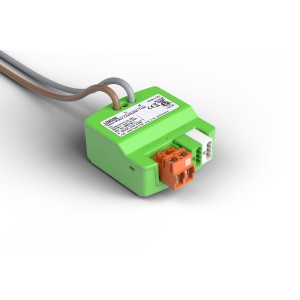

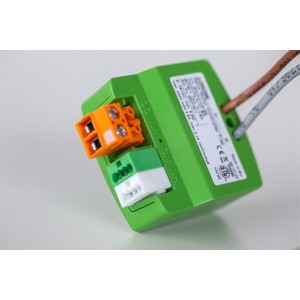

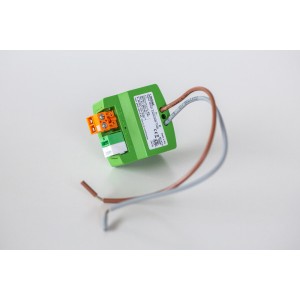

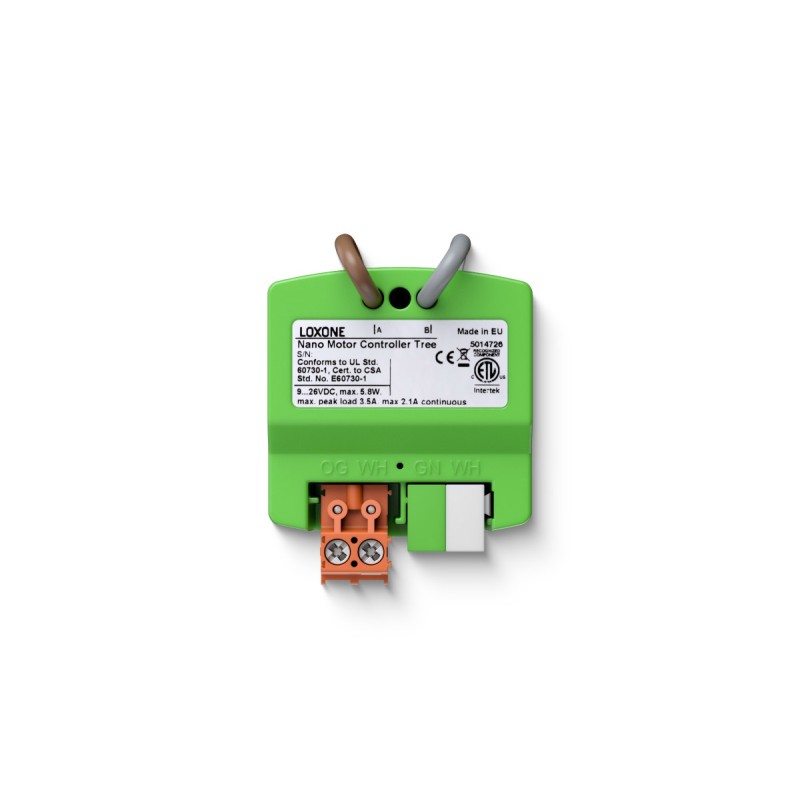

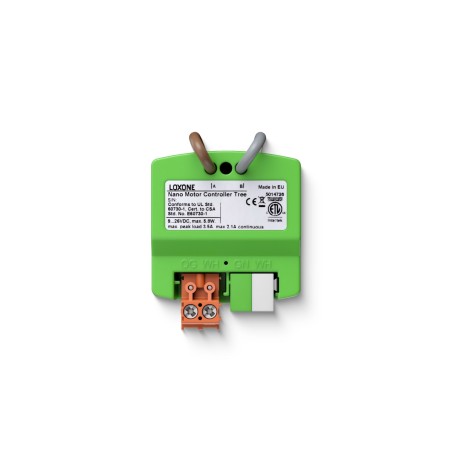

| Supply voltage | 9 … 26 VDC |
|---|---|
| Power consumption | typ. 0.22 W, max. 0.28 W |
| Operating mode |
Motor Bidirectional 1 output Motor Unidirectional 2 outputs Dimmer 1 output |
| Maximum total load of outputs | 2.1A continuous; 5A peak ( |
| PWM frequency |
1kHz ... 10kHz 400Hz |
| Power loss at max. load |
5.8W 1.7W |
| Current detection setting range | 100mA ... 3500mA |
| Overcurrent detection setting range | 100mA ... 3500mA |
| Interfaces |
LOXONE Tree: connection with Miniserver / Tree Extension |

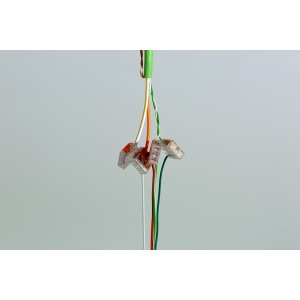

| Temperature | -20...50°C / -4...122°F |
| Humidity | max. 95% r.H. (non condensing) |
|---|
| Wire cross-section |
Connection Cables (Output): 1.5mm² / AWG18 Power Supply: 0.75 ... 2.5mm² / AWG18 ... 13 LOXONE Tree: 0.25 … 0.8mm² / AWG23 … 18 |
|---|---|
| Stripping length |
Connection Cables (Output): 10mm / 0.4" Power Supply: 5mm / 0.2” LOXONE Tree: 5mm / 0.2" |
| Length |
Connection Cables (Output): 150mm / 5.91" Power Supply: - LOXONE Tree: - |
| Torque of terminal blocks |
Connection Cables (Output): - Power Supply: 0.35 ... 0.4Nm / 0.26 ... 0.3 lbf ft LOXONE Tree: - |
| Temperature resistance |
Connection Cables (Output): min. 80°C / 176°F for IEC, min. 75°C / 167°F for UL Power Supply: -40 … 105°C / -40 … 221°F LOXONE Tree: -40 … 105°C / -40 … 221°F |

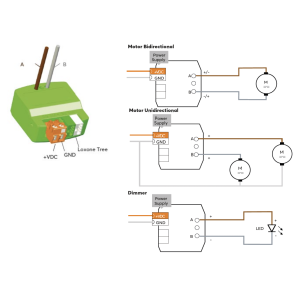

| Connection Diagram |
|
|---|
| Colours | Green: RAL 6018 |
|---|---|
| Finish | Matte |
| Net weight | 37g |
|---|---|
| Total weight | 59g |
| Product dimensions | 39.45x38.95x20.20mm / 1.55x1.53x0.80” (LxWxH) |

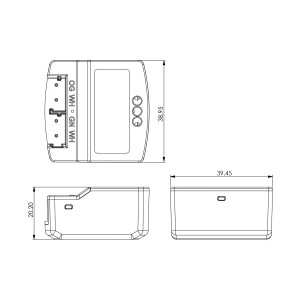

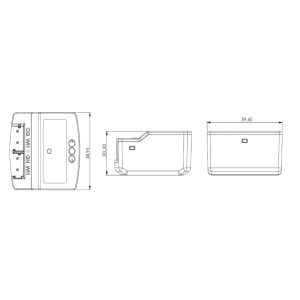

| Product dimensions drawing |
|
| Pack size | 84x80x47mm / 3.31x3.15x1.85” (LxWxH) |
| Safety class | IP20 |
|---|
| Položka | Množství |
|---|---|
| Příbalový leták | 1 |
