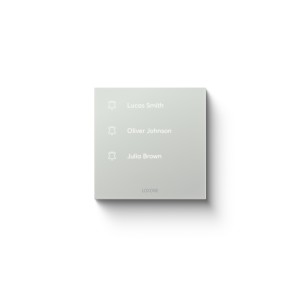

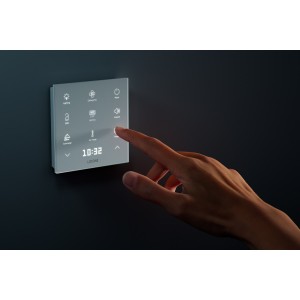

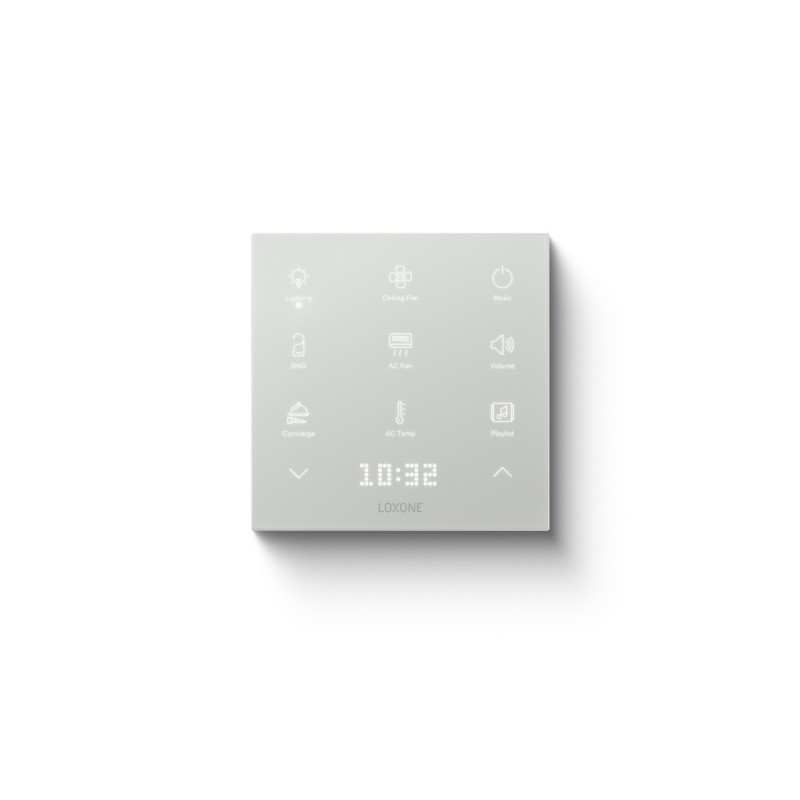

Touch Pure Flex 24V Air šedobílá

Name: Touch Pure Flex 24V Air šedobílá
Brand: Loxone
SKU: 100861
Price: 6897 CZK
Availability: OutOfStock

Reference 100861

Brand Loxone

Kč5,700

Tax excluded

Kč1,197 Tax

Kč6,897 Tax included

Quantity

Out-of-Stock

Product Details

Reference 100861

Data sheet

Product Characteristics: Colours: White: RAL 9002
Electrical Specifications: Supply voltage: 9 … 28 V DC
Electrical Specifications: Power consumption: Standby: 0.2 W,; max. 0.9 W at brightness 100 %
Ambient Conditions: Temperature: -20 … 40 °C / -4 … 104 °F
Ambient Conditions: Humidity: max. 95 % RH (non-condensing)
Ambient Conditions: Ingress protection: IP20
Connection Terminals: Terminal type: DG220B
Connection Terminals: Wire cross-section: 0.28 … 0.8 mm² / AWG 23 … 18
Connection Terminals: Stripping length: 5 … 6 mm / 0.2 … 0.24”
Connection Terminals: Temperature resistance: -40 … 105 °C / -40 … 221 °F
Product Characteristics: Finish: Matte
Weight & Dimensions: Net weight: 102 g
Weight & Dimensions: Product dimensions: 90 x 90 x 16 mm / 3.55 x 3.55 x 0.63” (L x W x H)
Certifications & Standards: Standards: IEC 62368-1:2018 ; UL 62368-1:2019 Ed. 3+R:22Oct2021 ; CSA C22.2 No. 62368-1:2019 Ed. 3+U1 ; SASO IEC 62368-1:2020
Interfaces: LOXONE Air: 868 MHz (SRD Band Europe), 4 channels, max. 15.1 mW e.r.p. ; 915 MHz (ISM Band Region 2), 10 channels, max. 13.2 mW ; internal antenna
Operating Elements: Click feedback: Yes
Measurement Range: Temperature: -10 … 125 °C ± 0.5 °C / -14 … 257 °F ± 0.9 °F
Operating Elements: Touch area: capacitive touch detection; up to 12/14 touch points
Operating Elements: Backlight: Yes
Measurement Range: Humidity: 0 … 100 % RH ± 2 % (non-condensing)
Installation specifications: Recommended mounting height: 135 cm / 53.15"

Jeden produkt – nekonečné možnosti

Svůj vlastní Touch Pure Flex si můžete nakonfigurovat online v několika málo krocích. Dokonale ho tak přizpůsobíte potřebám vašeho projektu.

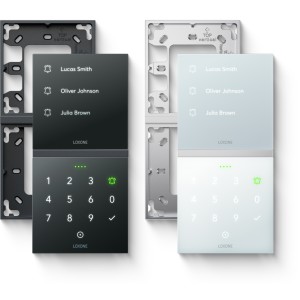

Možnost kombinovat

Touch Pure Flex můžete využívat samostatně či společně s Intercomem nebo klávesnicí NFC Code Touch. Stylové rámečky různých velikostí umožňují, aby se produkty doslova prolínaly. Vytvoří funkční a komplexní centrálu přístupu.

600+

ikon na výběr

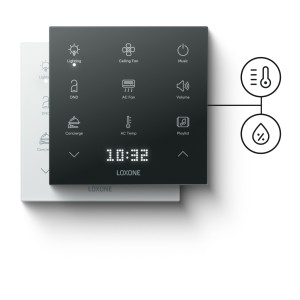

Integrované ovládání klimatu v místnosti

Do Touch Pure Flexu je integrován senzor teploty a vlhkosti pro automatické ovládání vnitřního klima.

Rozdíly ve variantách
	Touch Pure Flex	Touch Pure Flex CO2	Touch Pure Flex IP44	Touch Pure Flex Battery
Č. produktu	100673, 100674, 100675, 100676, 100861, 100867	100612, 100613, 100614, 100615, 100862, 100864	100608, 100609, 100610, 100611, 100865, 100866	100509, 100510, 100863
Technologie	Tree, 24V Air	Tree, 24V Air	Tree, 24V Air	Air, Battery
Podsvícení	✔	✔	✔	✕
Měření teploty	✔	✔	✔	✔
Měření vlhkosti	✔	✔	✕	✔
Senzor CO2	✕	✔	✕	✕
Krytí IP	IP20	IP20	IP44	IP44

Datasheet

Electrical Specifications

Supply voltage	9 … 28 V DC
Power consumption	Standby: 0.2 W, max. 0.9 W at brightness 100 %

Interfaces

LOXONE Air	868 MHz (SRD Band Europe), 4 channels, max. 15.1 mW e.r.p. 915 MHz (ISM Band Region 2), 10 channels, max. 13.2 mW internal antenna

Operating Elements

Touch area	capacitive touch detection up to 12/14 touch points
Click feedback	Yes
Backlight	Yes

Measurement Range

Temperature	-10 … 125 °C ± 0.5 °C / -14 … 257 °F ± 0.9 °F
Humidity	0 … 100 % RH ± 2 % (non-condensing)

Ambient Conditions

Temperature	-20 … 40 °C / -4 … 104 °F
Humidity	max. 95 % RH (non-condensing)
Ingress protection	IP20

Installation specifications

Recommended mounting height	135 cm / 53.15"

Connection Terminals

Terminal type	DG220B
Wire cross-section	0.28 … 0.8 mm² / AWG 23 … 18
Stripping length	5 … 6 mm / 0.2 … 0.24”
Temperature resistance	-40 … 105 °C / -40 … 221 °F

Connections

Connection Diagram

Product Characteristics

Colours	White: RAL 9002
Finish	Matte

Weight & Dimensions

Net weight	102 g
Total weight	167 g
Product dimensions	90 x 90 x 16 mm / 3.55 x 3.55 x 0.63” (L x W x H)
Product dimensions drawing
Pack size	104 x 107 x 39 mm / 4.09 x 4.21 x 1.54” (L x W x H)

Certifications & Standards

Standards	IEC 62368-1:2018 UL 62368-1:2019 Ed. 3+R:22Oct2021 CSA C22.2 No. 62368-1:2019 Ed. 3+U1 SASO IEC 62368-1:2020

Položka	Množství
Montážní rámeček	1

Comments (0)

Grade

No customer reviews for the moment.

16 other products in the same category:

Bočnice Weidmüller AEP ITB 2.5 (20 kusů)

Reference: 200420

Brand: Loxone

Bočnice Weidmüller AEP ITB 2.5 (20 kusů)

(0)

Kč200 tax excl.

Kč42 Tax

Kč242 tax incl.

In stock

In stock: 246

Reference: 200024

Brand: Loxone

Adaptér ventilu VA16H

(0)

Kč60 tax excl.

Kč13 Tax

Kč73 tax incl.

In stock

In stock: 788

Out-of-Stock

Reference: 100674

Brand: Loxone

Touch Pure Flex Tree antracitová

(0)

Kč5,700 tax excl.

Kč1,197 Tax

Kč6,897 tax incl.

Out-of-Stock

In stock: 0

Reference: 200524

Brand: Loxone

Firemní polo tričko pánské 3XL černá

(0)

Kč880 tax excl.

Kč185 Tax

Kč1,065 tax incl.

In stock

In stock: 407

Reference: 610161

Brand: Loxone

Concrete Backbox for 7 Install Speaker

(0)

Kč1,415 tax excl.

Kč297 Tax

Kč1,712 tax incl.

In stock

In stock: 2515

Reference: 100264

Brand: Loxone

Komfortní senzor Air bílá

(0)

Kč2,281 tax excl.

Kč479 Tax

Kč2,760 tax incl.

In stock

In stock: 1564

Reference: 100500

Brand: Loxone

Stropní LED světlo RGBW Air zlatá

(0)

Kč7,888 tax excl.

Kč1,657 Tax

Kč9,545 tax incl.

In stock

In stock: 153

SD karta s firmwarem pro Miniserver 1. generace

Reference: 100008

Brand: Loxone

SD karta s firmwarem pro Miniserver 1. generace

(0)

Kč1,240 tax excl.

Kč260 Tax

Kč1,500 tax incl.

In stock

In stock: 388

Reference: 000514

Brand: Loxone

Větrná turbína pro Meteostanici

(0)

Kč130 tax excl.

Kč27 Tax

Kč157 tax incl.

In stock

In stock: 61

Reference: 100120

Brand: Loxone

Smart Socket Air – typ E

(0)

Kč1,994 tax excl.

Kč419 Tax

Kč2,412 tax incl.

In stock

In stock: 477

Exosphere Enterprise – Miniserver (1 rok)

Reference: 100591

Brand: Loxone

Exosphere Enterprise – Miniserver (1 rok)

(0)

Kč2,500 tax excl.

Kč525 Tax

Kč3,025 tax incl.

In stock

In stock: 446

Reference: 610033

Brand: Loxone

SIGNUM 20 bílá pár

(0)

Kč9,540 tax excl.

Kč2,003 Tax

Kč11,543 tax incl.

In stock

In stock: 585

Reference: 200499

Brand: Loxone

Firemní pánské tričko S bílá

(0)

Kč630 tax excl.

Kč132 Tax

Kč762 tax incl.

In stock

In stock: 471

Reference: 200031

Brand: Loxone

Senzor teploty a vlhkosti (venkovní)

(0)

Kč3,791 tax excl.

Kč796 Tax

Kč4,587 tax incl.

In stock

In stock: 206

Reference: 100012

Brand: Loxone

DMX Extension

(0)

Kč13,870 tax excl.

Kč2,913 Tax

Kč16,783 tax incl.

In stock

In stock: 453

Reference: 610019

Brand: Loxone

SIGNUM PHASE 2 Wall Speaker černá

(0)

Kč7,400 tax excl.

Kč1,554 Tax

Kč8,954 tax incl.

In stock

In stock: 34

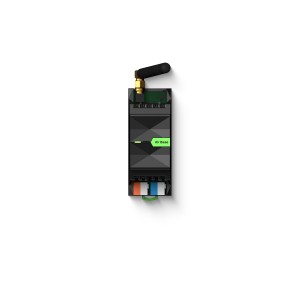

Air Base Extension

(0)

Kč2,724 tax excl.

Kč572 Tax

Kč3,297 tax incl.

In stock

In stock: 3661

Reference: 100512

Brand: Loxone

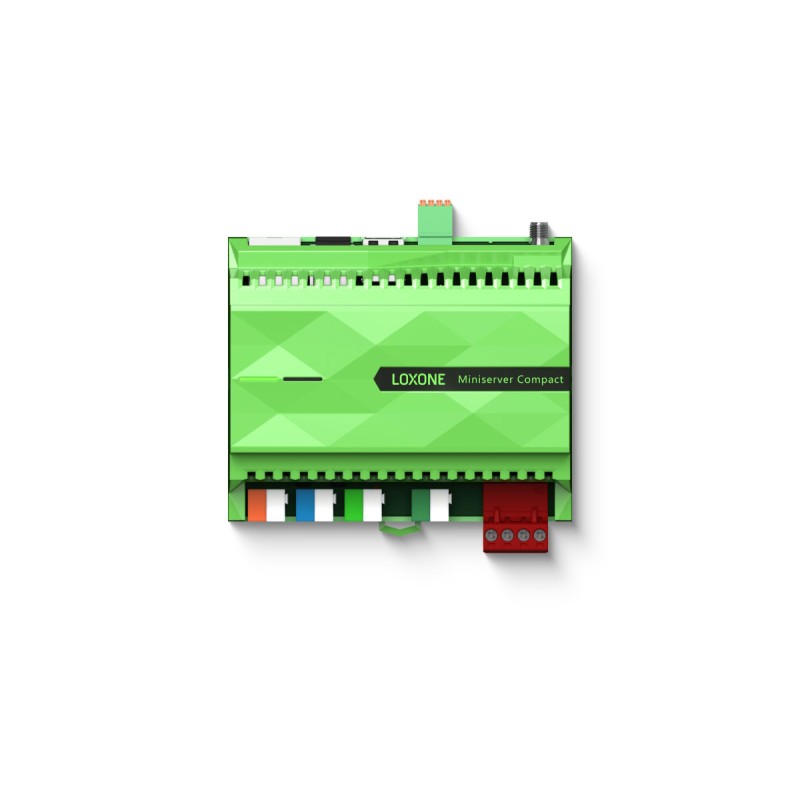

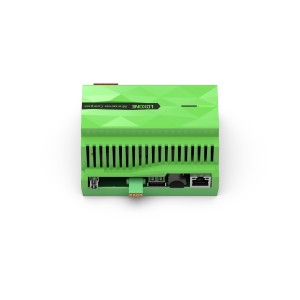

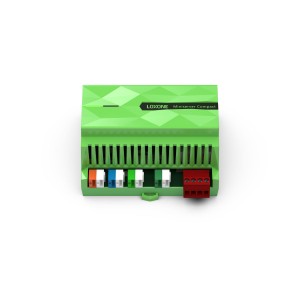

Miniserver Compact

(0)

Kč12,870 tax excl.

Kč2,703 Tax

Kč15,573 tax incl.

In stock

In stock: 6456

Reference: 100336

Brand: Loxone

Miniserver Go

(0)

Kč9,842 tax excl.

Kč2,067 Tax

Kč11,909 tax incl.

In stock

In stock: 1357

Reference: 100474

Brand: Loxone

Podomítkový zdroj 0,25A

(0)

Kč581 tax excl.

Kč122 Tax

Kč703 tax incl.

In stock

In stock: 725

Reference: 100451

Brand: Loxone

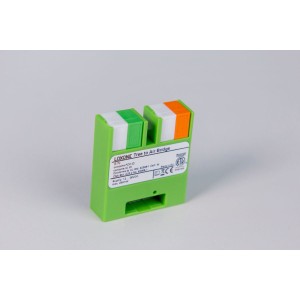

Tree to Air Bridge
