Data sheet
| Power Supply | 5VDC via Micro USB Connector |
|---|---|
| Power consumption | typ. 0.25 W |
| Power loss | max. 0.25 W |
| Temperature | -40 … 70 °C / -40 … 158 °F |
|---|---|
| Humidity | max. 90 % RH (non-condensing) |
| LOXONE Air | LOXONE Air: 868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW Infrared: internal IR transmitter & receiver (optimized for 38kHz IR signals) 4 external IR transmitter eyes & 1 external IR receiver eye (optimized for 38kHz IR signals) Learn in of up to 200 commands (depending on length) IR range: Up to 5m (depending on remote control and location) |
|---|

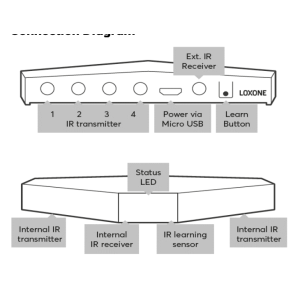

| Connection Diagram |
|
|---|

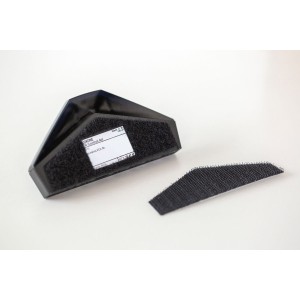

| Mounting type | Simple attachment via provided velcro tape |
|---|---|
| Colours | Black: RAL 9005 |
| Finish | Matte |
| Net weight | 33g |
|---|---|
| Total weight | 285 g |
| Product dimensions | 90x49x14mm / 3.54x1.93x0.55” (LxWxH) |

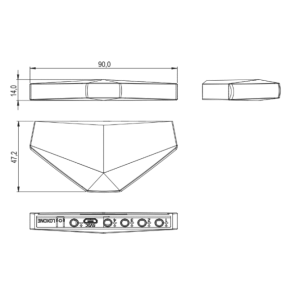

| Product dimensions drawing |
|
| Pack size | 101x96x97mm / 3.97x3.78x3.82” (LxWxH) |
| Safety class | IP20 |
|---|

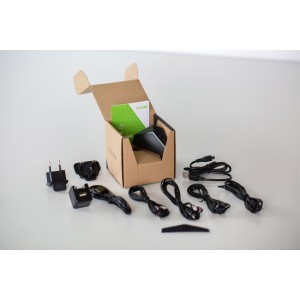

| Položka | Množství |
|---|---|

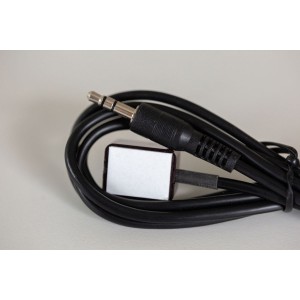

| Externí IR vysílač se dvěma výstupy (délka kabelu 2 m) pro připojení k přijímači | 4 |
| Externí IR přijímač (délka kabelu 1,5 m) | 1 |

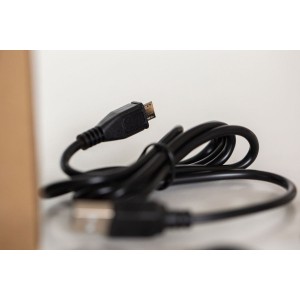

| Micro USB kabel | 1 |

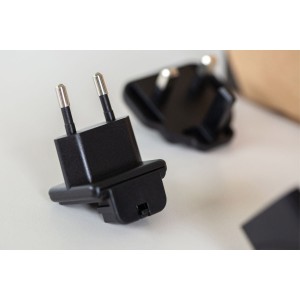

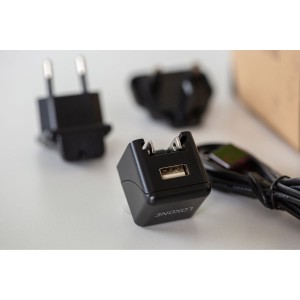

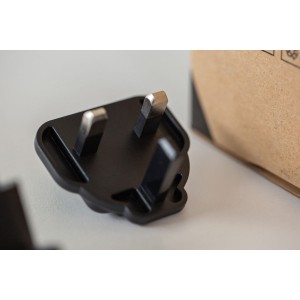

| USB napájecí adaptér se třemi mezinárodními adaptéry (A, C a G) včetně kabelu | 1 |
| Příbalový leták | 1 |
| Suchý zip | 1 |
