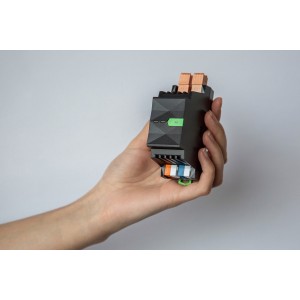

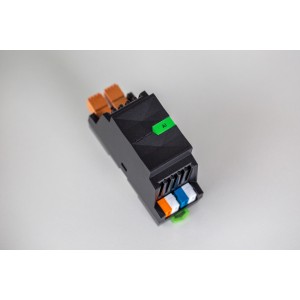

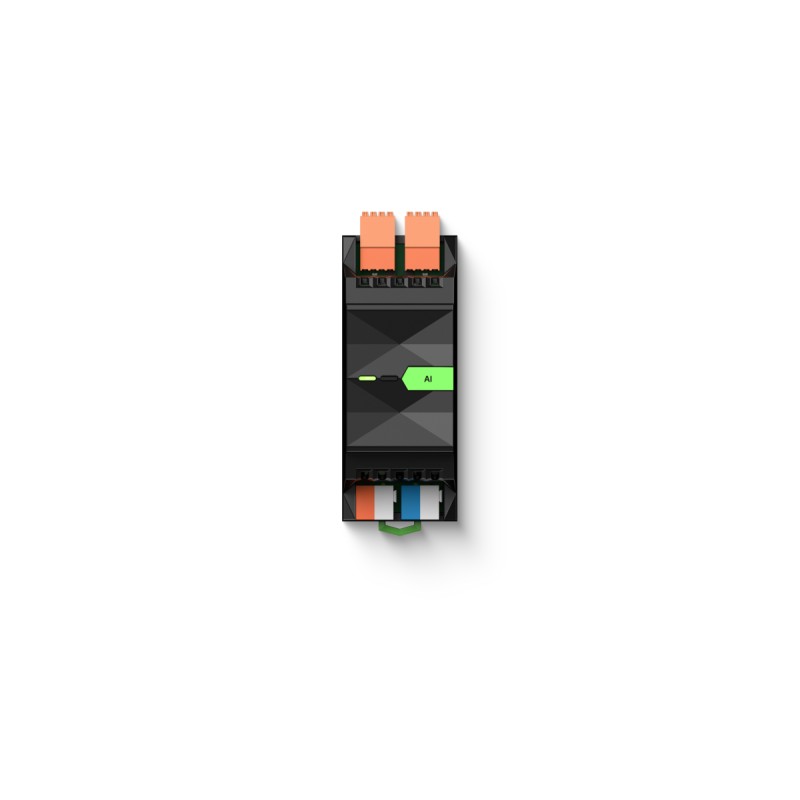

| Supply voltage | 9 … 28 V DC |
|---|---|
| Power consumption | typ. 0.10 W |
| Power loss at max. load | 0.58 W |
| Analogue (1-4) |
For DC voltage signals (differential) Range: -25 ... 0 ... 25 V Resolution: 0.02 V Ri: 2.3 MOhm When Used as Digital Inputs: Logic 0: 0 ... 0.5 V Undefined: 0.6 ... 1.5 V Logic 1: 1.6 ... 28 V |
|---|---|
| Analogue (5-8) |
For DC current signals (passive) Range: -30...0…30 mA Resolution: 0.05 mA Ri: 105 Ohm |
| LOXONE Link | Connection with Miniserver |
|---|
| Temperature | -40 … 70 °C / -40 … 158 °F |
|---|---|
| Humidity | max. 95 % RH (non-condensing) |
| Ingress protection | IP20 |

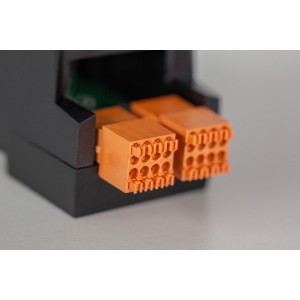

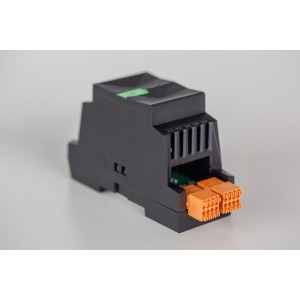

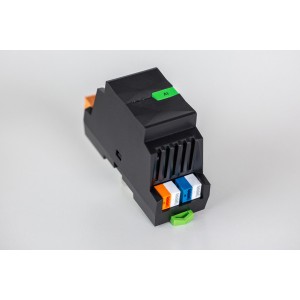

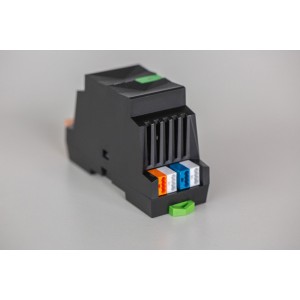

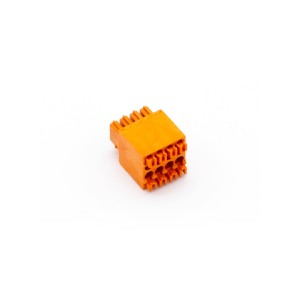

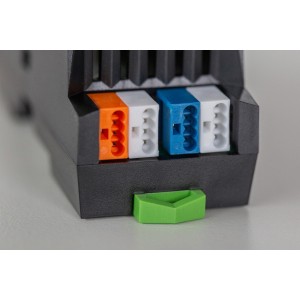

| Terminal type |
24 VDC & LOXONE Link Inputs DG220B - |
|---|---|
| Wire cross-section |
0.25 … 0.8 mm² / AWG 23 … 18 0.14 … 0.5 mm² / AWG 26 … 20 |
| Stripping length |
5 mm / 0.2" 7 mm / 0.28" |
| Temperature resistance |
-40 … 105 °C / -40 … 221 °F -40 … 70 °C / -40 … 158 °F |

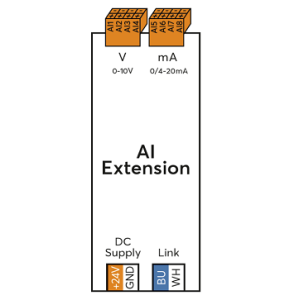

| Connection Diagram |
|

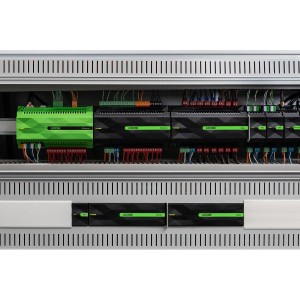

|---|
| Mounting type | DIN rail according to EN 50022, 35 mm |
|---|---|
| Colours | Black: RAL 9005 |
| Finish | Matte |
| Net weight | 57 g |
|---|---|
| Total weight | 92 g |
| Product dimensions | 88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units |

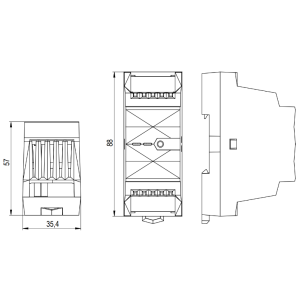

| Product dimensions drawing |
|
| Pack size | 121 x 38 x 62 mm / 4.76 x 1.50 x 2.44” (L x W x H) |
