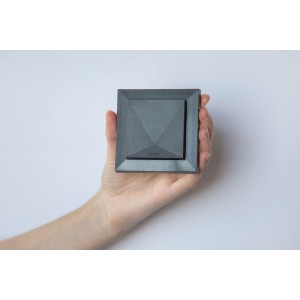

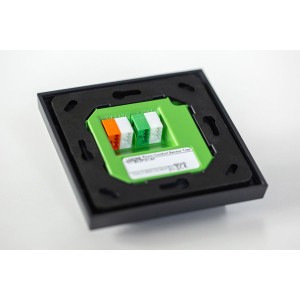

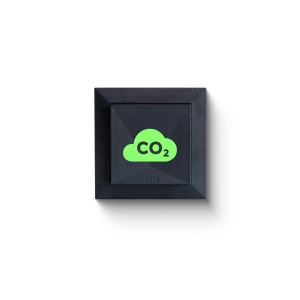

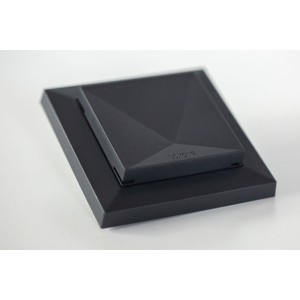

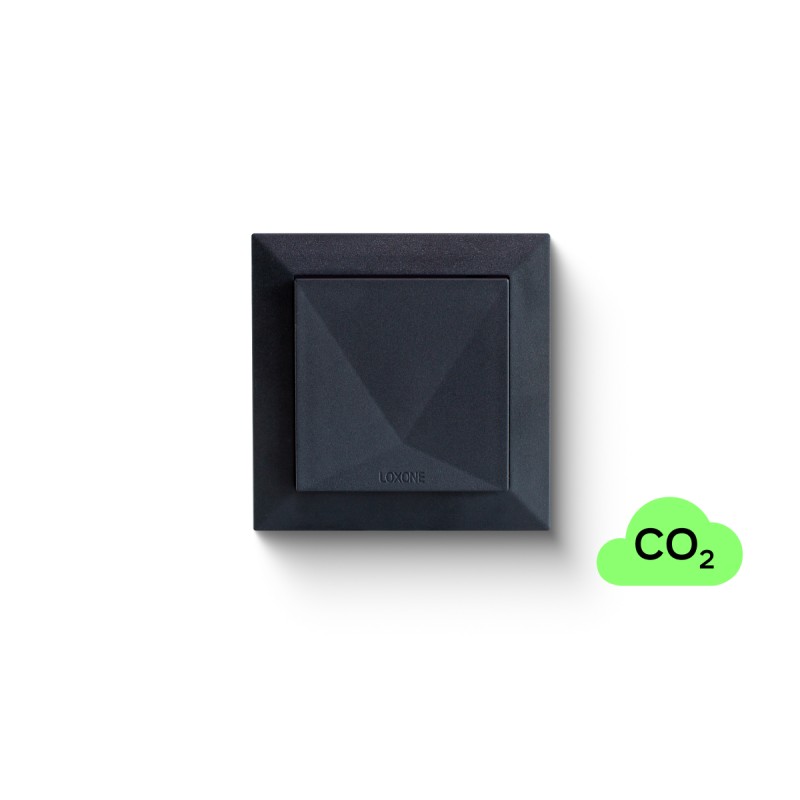

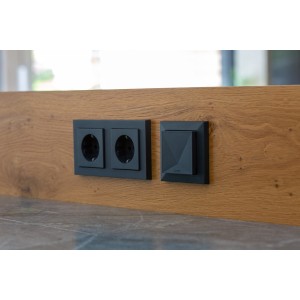

Komfortní senzor Tree antracitová
  • Komfortní senzor Tree antracitová
  • Komfortní senzor Tree antracitová
  • Komfortní senzor Tree antracitová
  • Komfortní senzor Tree antracitová
  • Komfortní senzor Tree antracitová
  • Komfortní senzor Tree antracitová
  • Komfortní senzor Tree antracitová

Komfortní senzor Tree antracitová

100277
Loxone
Kč6,178
Tax excluded
Kč1,297 Tax
Kč7,475 Tax included
Quantity
167 Items

Product Details
100277
167 Items

Data sheet

Product Characteristics: Colours
Anthracite: RAL 7016
Electrical Specifications: Supply voltage
9 … 28 V DC
Electrical Specifications: Power consumption
typ. 0.35 W
Ambient Conditions: Humidity
max. 95% r.H. (non condensing)
Connection Terminals: Wire cross-section
0.25 … 0.8 mm² / AWG 23 … 18
Connection Terminals: Stripping length
5 mm / 0.2”
Connection Terminals: Temperature resistance
-40 … 105 °C / -40 … 221 °F
Product Characteristics: Finish
Matte
Weight & Dimensions: Net weight
62g
Weight & Dimensions: Product dimensions
80x80x17.4mm / 3.15x3.15x0.69” (LxWxH) with frame
Electrical Specifications: Temperature detection range
-40 ... 120°C / -40 ... 248°F, ± 0,5°C
Certifications & Standards: Safety class
IP20
Electrical Specifications: Power loss
max. 0.16W
Electrical Specifications: Humidity detection range
0 … 100% r.H. +/- 2%, (non condensing)
Interfaces: LOXONE Tree
connection with Miniserver / Tree Extension
Electrical Specifications: CO2 detection range
400 ... 10.000ppm, ±(30 ppm + 3%) NDIR Sensor
Datasheet

Electrical Specifications

Supply voltage 9 … 28 V DC
Power consumption typ. 0.35 W
Power loss max. 0.16W
Temperature detection range -40 ... 120°C / -40 ... 248°F, ± 0,5°C
Humidity detection range 0 … 100% r.H. +/- 2%, (non condensing)
CO2 detection range 400 ... 10.000ppm, ±(30 ppm + 3%) NDIR Sensor

Interfaces

LOXONE Tree connection with Miniserver / Tree Extension

Ambient Conditions

Humidity max. 95% r.H. (non condensing)

Connection Terminals

Wire cross-section 0.25 … 0.8 mm² / AWG 23 … 18
Stripping length 5 mm / 0.2”
Temperature resistance -40 … 105 °C / -40 … 221 °F

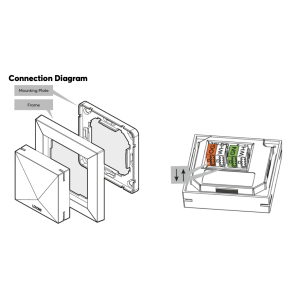

Connection Diagram

Connection Diagram Connection Diagram

Product Characteristics

Colours Anthracite: RAL 7016
Finish Matte

Weight & Dimensions

Net weight 62g
Total weight 75 g
Product dimensions 80x80x17.4mm / 3.15x3.15x0.69” (LxWxH) with frame

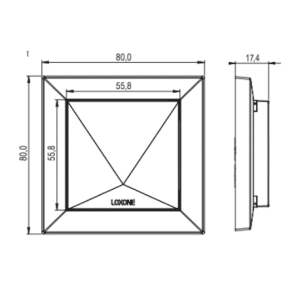

Product dimensions drawing Product dimensions drawing
Pack size 97x85x24mm / 3.82x3.35x0.94” (LxWxH)

Certifications & Standards

Safety class IP20
Položka Množství

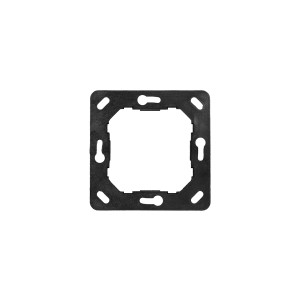

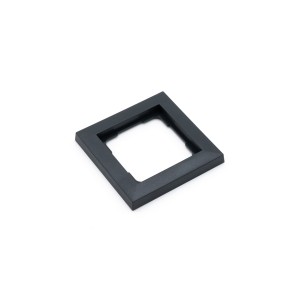

Včetně rámečku 1
