Data sheet

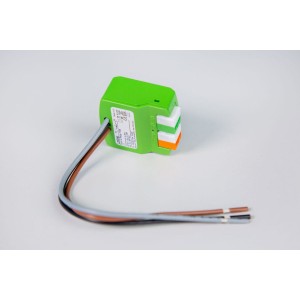

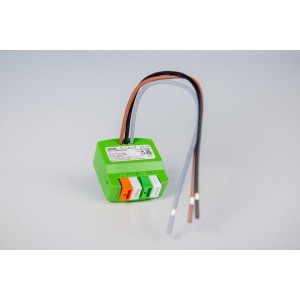

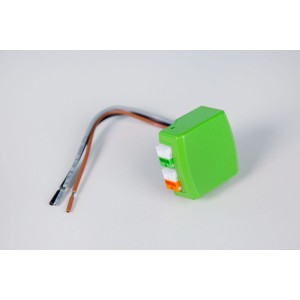

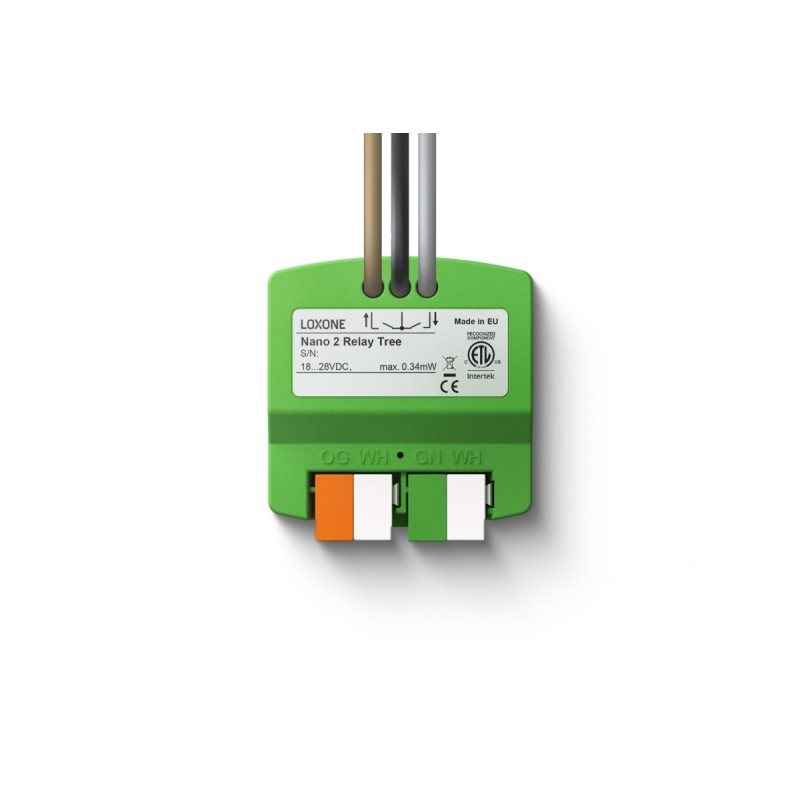

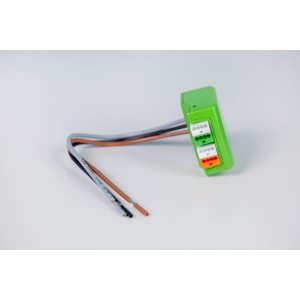

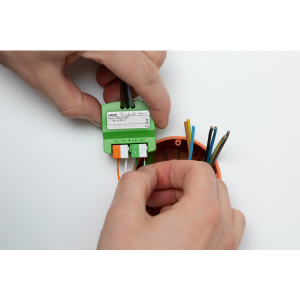

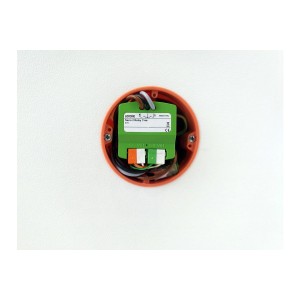

Ať už jde o elektrické rolety, závěsy, žaluzie nebo markýzy – s novým podomítkovým modulem Nano 2 Relay Tree snadno a rychle integrujete stínění do jakéhokoliv projektu. Vhodné pro rodinné domy, kanceláře, hotely i další realizace.
| Supply voltage | 18 … 28 VDC |
|---|---|
| Power consumption | typ. 0.1 W, max. 0.34 W |
| Power loss at max. load | 2.2 W |
| Minimum load for end stop detection | 100mA |
| Max. inrush current | 15 A |
| Outputs |
2 digital outputs (Relays), dry contact, shared hot max. 250VAC 10A at cosᵠ=1 (IEC) or max. 30VDC 10A total load max. 12A |
| Current detection setting range | 100 … 5000mA |
| Temperature | -40 … 55°C / -40 … 131°F |
| Humidity | max. 95% r.H. (non condensing) |
|---|
| Wire cross-section |
Connection Cables: 1,5mm² / AWG18 Power Supply & LOXONE Tree: 0.25 … 0.8mm² / AWG23 … 18 |
|---|---|
| Stripping length |
Connection Cables: 5mm / 0.2" Power Supply & LOXONE Tree: 5mm / 0.2" |
| Temperature resistance |
Connection Cables: min. 80°C / 176°F for IEC, min. 75°C / 167°F for UL Power Supply & LOXONE Tree: -40 … 105°C / -40 … 221°F |
| Length |
Connection Cables: 150mm / 5,91" Power Supply & LOXONE Tree: - |

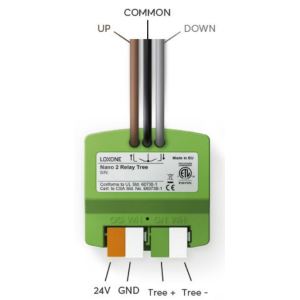

| Connection Diagram |
|
|---|
| Colours | Green: RAL 6018 |
|---|---|
| Finish | Matte |
| Net weight | 37g |
|---|---|
| Total weight | 59g |
| Product dimensions | 39.45x38.95x20.20mm / 1.55x1.53x0.80” (LxWxH) |

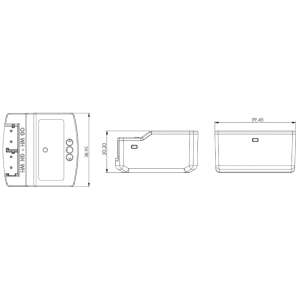

| Product dimensions drawing |
|
| Pack size | 84x80x47mm / 3.31x3.15x1.85” (LxWxH) |
| Safety class | IP20 |
|---|
