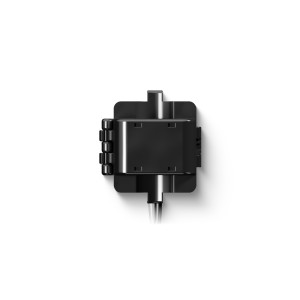

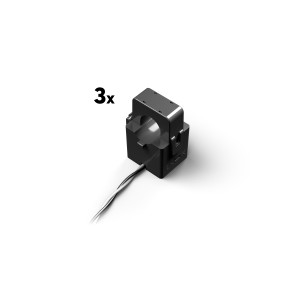

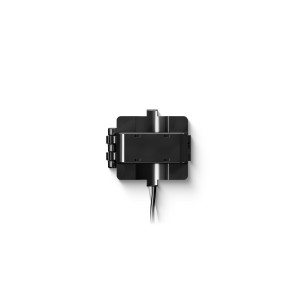

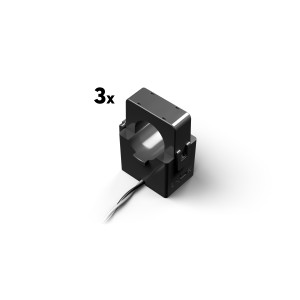

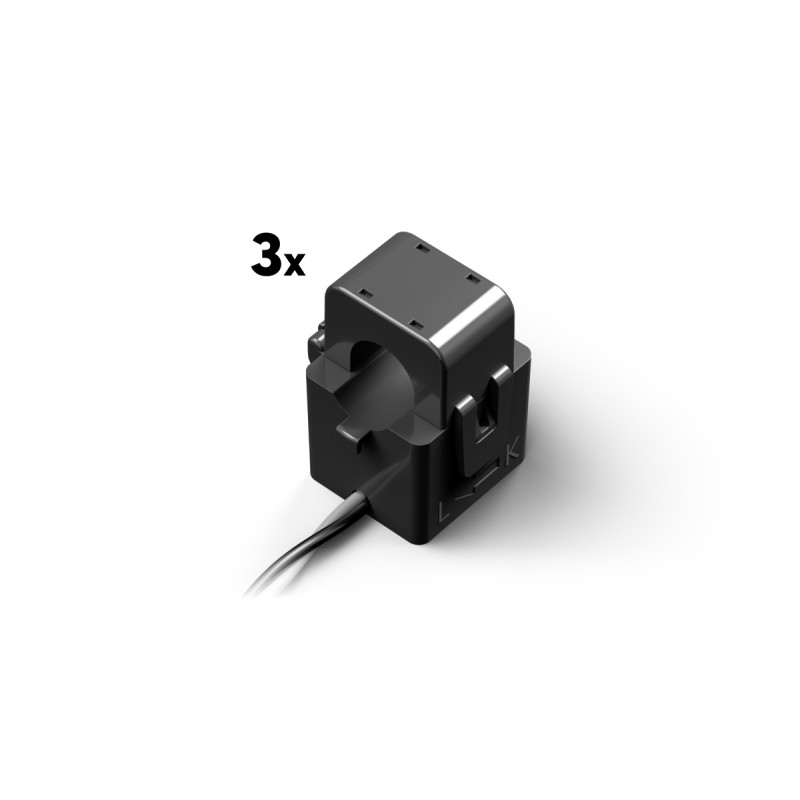

40mA Proudový transformátor 100 A 16 mm (3 ks.)

Name: 40mA Proudový transformátor 100 A 16 mm (3 ks.)
Brand: Loxone
SKU: 100680
Price: 2698 CZK
Availability: InStock

Reference 100680

Brand Loxone

Kč2,230

Tax excluded

Kč468 Tax

Kč2,698 Tax included

Quantity

In stock: 1689 Items

Product Details

Reference 100680

In stock 1689 Items

Data sheet

Ambient Conditions: Temperature: -40 … 55 °C / -40 … 131 °F
Ambient Conditions: Humidity: max. 95 % RH (non-condensing)
Ambient Conditions: Ingress protection: IP40
Weight & Dimensions: Net weight: 524 g
Certifications & Standards: Certifications: UL E549933
Ambient Conditions: Storage temperature: -40 … 85 °C / -40 … 185 °F
Electrical Specifications: Rated primary current: 100 A
Electrical Specifications: Rated secondary current: 40 mA
Electrical Specifications: Accuracy class: 0.5
Electrical Specifications: Ratio error at rated primary: ± 0.5%
Electrical Specifications: Rated load: 3.9 Ohm
Electrical Specifications: Operating frequency: 50/60 Hz
Electrical Specifications: Linear measurement range: 5 ... 120 % of rated primary current
Insulation & Safety: Power frequency withstand voltage: 4 000 V / 10 s, 1 mA
Insulation & Safety: Insulation resistance: 100 MOhm @ 500 VDC
Insulation & Safety: Enclosure flame retardant rating: UL 94-V0
Ambient Conditions: Atmospheric pressure condition: 70 … 106 kpa
Secondary Output Cable: Wire cross-section: 0.5 mm² / AWG 22
Secondary Output Cable: Length: 5 m (trimmable to 1 m)
Secondary Output Cable: Termination: tinned wire ends (5 … 10 mm)
Insulation & Safety: Open circuit protective voltage: 6 ... 8 V

Datasheet

Electrical Specifications

Rated primary current	100 A
Rated secondary current	40 mA
Accuracy class	0.5
Rated load	3.9 Ohm
Operating frequency	50/60 Hz
Linear measurement range	5 ... 120 % of rated primary current
Ratio error at rated primary	± 0.5%
Phase error at rated primary	< 60'

Insulation & Safety

Power frequency withstand voltage	4 000 V / 10 s, 1 mA
Insulation resistance	100 MOhm @ 500 VDC
Enclosure flame retardant rating	UL 94-V0
Open circuit protective voltage	6 ... 8 V

Ambient Conditions

Temperature	-40 … 55 °C / -40 … 131 °F
Storage temperature	-40 … 85 °C / -40 … 185 °F
Humidity	max. 95 % RH (non-condensing)
Ingress protection	IP40
Atmospheric pressure condition	70 … 106 kpa

Secondary Output Cable

Wire cross-section	0.5 mm² / AWG 22
Length	5 m (trimmable to 1 m)
Termination	tinned wire ends (5 … 10 mm)

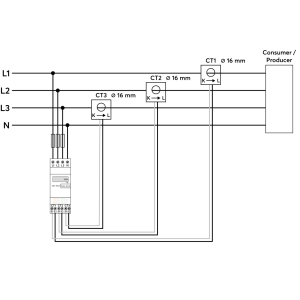

Connection Diagram

Connection Diagram

Weight & Dimensions

Net weight	524 g

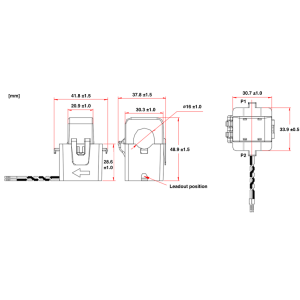

Product dimensions drawing

Certifications & Standards

Certifications	UL E549933

Položka	Množství
Příbalový leták	1

Folder (PDF)
