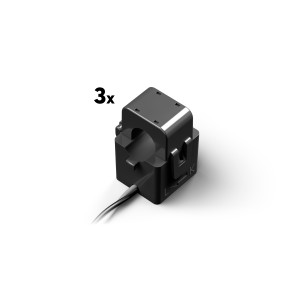

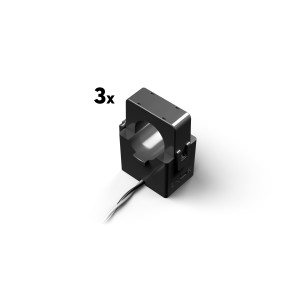

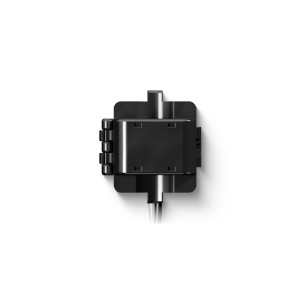

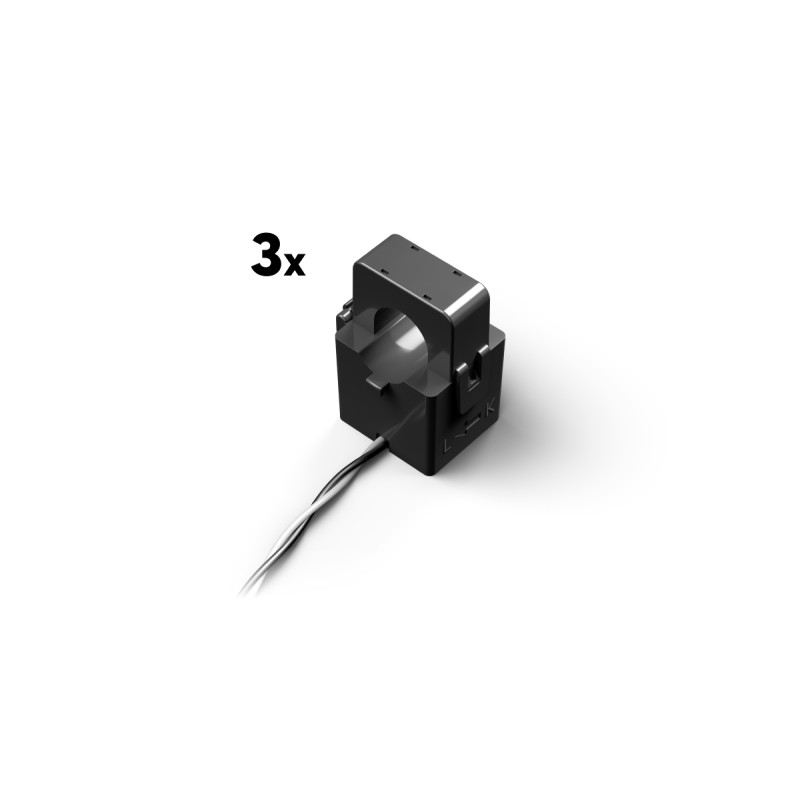

5A Proudový transformátor 200 A 24 mm (3 ks.)
  • 5A Proudový transformátor 200 A 24 mm (3 ks.)
  • 5A Proudový transformátor 200 A 24 mm (3 ks.)
  • 5A Proudový transformátor 200 A 24 mm (3 ks.)

5A Proudový transformátor 200 A 24 mm (3 ks.)

100679
Loxone
Kč2,980
Tax excluded
Kč626 Tax
Kč3,606 Tax included
Quantity
1103 Items

Product Details
100679
1103 Items

Data sheet

Ambient Conditions: Temperature
-40 … 70 °C / -40 … 158 °F
Ambient Conditions: Humidity
max. 85 % RH (non-condensing)
Ambient Conditions: Ingress protection
IP40
Weight & Dimensions: Net weight
905 g
Certifications & Standards: Certifications
US Only: UL E341727
Ambient Conditions: Storage temperature
-40 … 85 °C / -40 … 185 °F
Electrical Specifications: Rated primary current
200 A
Electrical Specifications: Rated secondary current
5 A
Electrical Specifications: Accuracy class
0.5
Electrical Specifications: Ratio error at rated primary
± 1.0%
Electrical Specifications: Rated load
1 VA
Electrical Specifications: Operating frequency
50/60 Hz
Electrical Specifications: Linear measurement range
5 ... 120 % of rated primary current
Insulation & Safety: Power frequency withstand voltage
4 000 V / 10 s, 1 mA
Insulation & Safety: Insulation resistance
100 MOhm @ 500 VDC
Insulation & Safety: Enclosure flame retardant rating
UL 94-V0
Ambient Conditions: Atmospheric pressure condition
70 … 106 kpa
Secondary Output Cable: Wire cross-section
1.5 mm² / AWG 16
Secondary Output Cable: Length
2 m
Secondary Output Cable: Termination
tinned wire ends (5 … 10 mm)
Datasheet

Electrical Specifications

Rated primary current 200 A
Rated secondary current 5 A
Accuracy class 0.5
Rated load 1 VA
Operating frequency 50/60 Hz
Linear measurement range 5 ... 120 % of rated primary current
Ratio error at rated primary ± 1.0%
Phase error at rated primary —

Insulation & Safety

Power frequency withstand voltage 4 000 V / 10 s, 1 mA
Insulation resistance 100 MOhm @ 500 VDC
Enclosure flame retardant rating UL 94-V0

Ambient Conditions

Temperature -40 … 70 °C / -40 … 158 °F
Storage temperature -40 … 85 °C / -40 … 185 °F
Humidity max. 85 % RH (non-condensing)
Ingress protection IP40
Atmospheric pressure condition 70 … 106 kpa

Secondary Output Cable

Wire cross-section 1.5 mm² / AWG 16
Length 2 m
Termination tinned wire ends (5 … 10 mm)

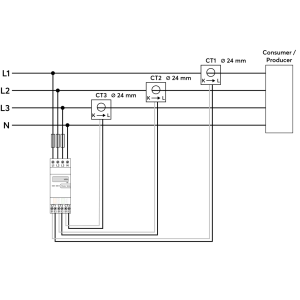

Connection Diagram

Connection Diagram Connection Diagram

Weight & Dimensions

Net weight 905 g

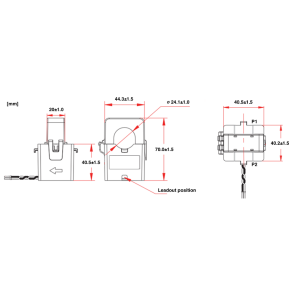

Product dimensions drawing Product dimensions drawing

Certifications & Standards

Certifications US Only: UL E341727
Položka Množství
Příbalový leták 1
