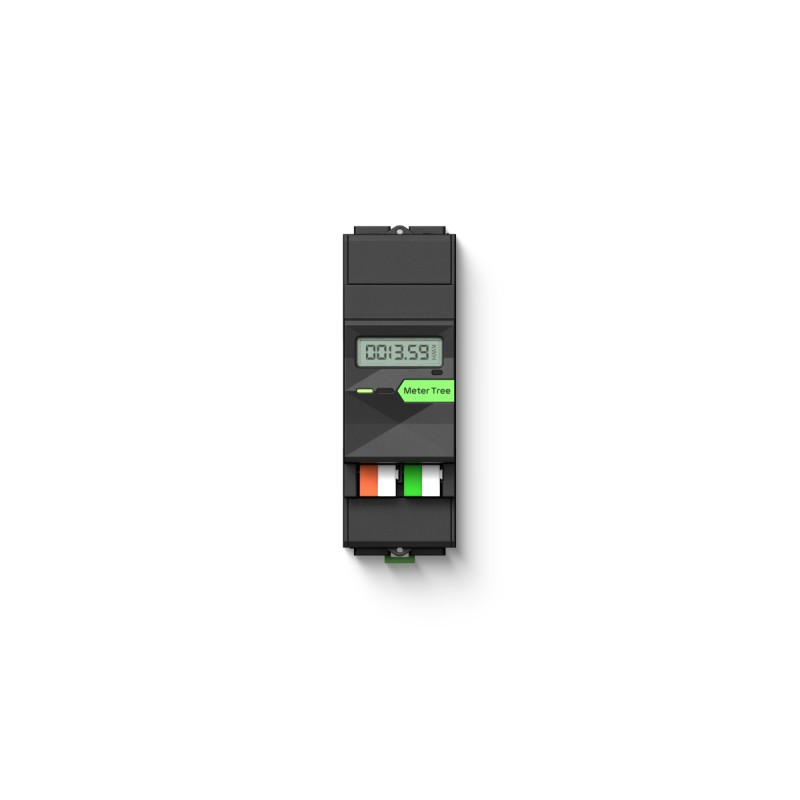

Elektroměr 1fázový Tree

Name: Elektroměr 1fázový Tree
Brand: Loxone
SKU: 100566
Price: 2396 CZK
Availability: InStock

Reference 100566

Brand Loxone

Kč1,980

Tax excluded

Kč416 Tax

Kč2,396 Tax included

Quantity

In stock: 2395 Items

Product Details

Reference 100566

In stock 2395 Items

Data sheet

Product Characteristics: Colours: Black: RAL 9005
Ambient Conditions: Temperature: -40 … 70 °C / -40 … 158 °F
Ambient Conditions: Humidity: max. 95 % RH (non-condensing)
Connection Terminals: Wire cross-section: AC Mains: 1.5...25mm² / AWG16...3 ferrules required for fine-stranded conductors; 24VDC & LOXONE Tree: 0.28...0.8mm² / AWG23...18
Connection Terminals: Stripping length: AC Mains: 14...15mm / 0.55...0.59”; 24VDC & LOXONE Tree: 5...6mm / 0.2...0.24"
Connection Terminals: Temperature resistance: AC Mains: -40...70°C / -40…158°F; 24VDC & LOXONE Tree: -40...105 °C / -40...221°F
Product Characteristics: Mounting type: DIN rail according to EN 50022, 35 mm
Product Characteristics: Finish: Matte
Weight & Dimensions: Net weight: 177 g
Weight & Dimensions: Product dimensions: 36x105x66mm / 1.42x4.13x2.60" (LxWxH), 2 division units
Connection Terminals: Tightening torque: AC Mains: 3 N.m / 2.21 lbf.ft; 24VDC & LOXONE Tree: -
Certifications & Standards: Safety class: IP20
Supply and Power: Power consumption: 0.3W
Supply and Power: Voltage: 100 ... 276V, 50/60Hz
Supply and Power: Current: max. 100A
Supply and Power: Power loss at max. load: 2W (at 100A)
Measurement Range: Power: Range: 0.01...99.9 kW / kVAr / kVA; Accuracy: ±1%
Measurement Range: Energy: Range: 0...999999 kWh / kVArh consumption and delivery; Accuracy: Class 1 IEC62053, Class B EN50470
Measurement Range: Voltage: Range: 100…276VAC; Accuracy: ±0.5%
Measurement Range: Current: Range: 0.05...100A; Accuracy: ±0.5%
Measurement Range: Frequency: Range: 49...61 Hz; Accuracy: ±0.2%
Operating Conditions - according to MID 2014/32/EU Annex V: according to MID 2014/32/EU Annex V: according to MID 2014/32/EU Annex V
Operating Conditions - according to MID 2014/32/EU Annex V: Voltage: Un: 230VAC, ±20%
Operating Conditions - according to MID 2014/32/EU Annex V: Current: Imin: 0.5A / Iref: 10A / Imax: 100A
Operating Conditions - according to MID 2014/32/EU Annex V: Frequency: fn: 50 Hz, ± 2 %
Operating Conditions - according to MID 2014/32/EU Annex V: Power factor: cosφ: 0.5 inductive ... 0.8 capacitive
Operating Conditions - according to MID 2014/32/EU Annex V: Accuracy (Energy): Class B (2%, @ +5°C … +30°C)
Connection Terminals: Screw drive: AC Mains: Pozidriv 2 (PZ2); 24VDC & LOXONE Tree: -
Certifications & Standards: ANSI C12.1 compliant: Accuracy Class 0.5

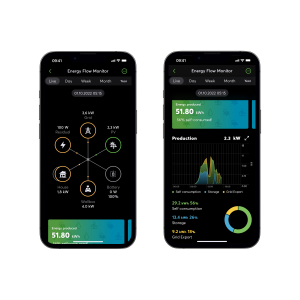

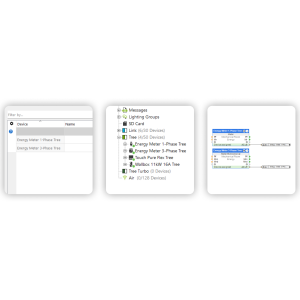

Monitorování energie, na které se můžete spolehnout

Dostupné hodnoty

Napětí mezi fází a nulou

Proud

Činný výkon

Odečet spotřeby měřiče

Odečet dodávky měřiče

Zdánlivý výkon

Jalový výkon

Odečet jalové spotřeby měřiče

Odečet jalové dodávky měřiče

Účiník

Fázový posuv

Frekvence

Datasheet

Supply and Power

Voltage	100 ... 276V, 50/60Hz
Current	max. 100A
Power consumption	0.3W
Power loss at max. load	2W (at 100A)

Measurement Range

Power	Range: 0.01...99.9 kW / kVAr / kVA Accuracy: ±1%
Energy	Range: 0...999999 kWh / kVArh consumption and delivery Accuracy: Class 1 IEC62053, Class B EN50470
Voltage	Range: 100…276VAC Accuracy: ±0.5%
Current	Range: 0.05...100A Accuracy: ±0.5%
Frequency	Range: 49...61 Hz Accuracy: ±0.2%

Operating Conditions - according to MID 2014/32/EU Annex V

according to MID 2014/32/EU Annex V	according to MID 2014/32/EU Annex V
Voltage	Un: 230VAC, ±20%
Current	Imin: 0.5A / Iref: 10A / Imax: 100A
Frequency	fn: 50 Hz, ± 2 %
Power factor	cosφ: 0.5 inductive ... 0.8 capacitive
Accuracy (Energy)	Class B (2%, @ +5°C … +30°C)

Ambient Conditions

Temperature	-40 … 70 °C / -40 … 158 °F
Humidity	max. 95 % RH (non-condensing)

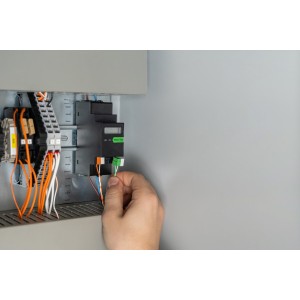

Connection Terminals

Wire cross-section	AC Mains: 1.5...25mm² / AWG16...3 ferrules required for fine-stranded conductors 24VDC & LOXONE Tree: 0.28...0.8mm² / AWG23...18
Stripping length	AC Mains: 14...15mm / 0.55...0.59” 24VDC & LOXONE Tree: 5...6mm / 0.2...0.24"
Tightening torque	AC Mains: 3 N.m / 2.21 lbf.ft 24VDC & LOXONE Tree: -
Temperature resistance	AC Mains: -40...70°C / -40…158°F 24VDC & LOXONE Tree: -40...105 °C / -40...221°F
Screw drive	AC Mains: Pozidriv 2 (PZ2) 24VDC & LOXONE Tree: -

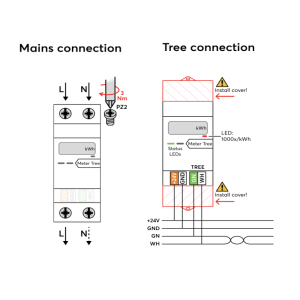

Connection Diagram

Connection Diagram

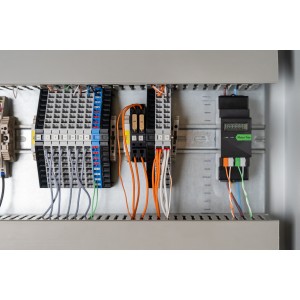

Product Characteristics

Mounting type	DIN rail according to EN 50022, 35 mm
Colours	Black: RAL 9005
Finish	Matte

Weight & Dimensions

Net weight	177 g
Total weight	198 g
Product dimensions	36x105x66mm / 1.42x4.13x2.60" (LxWxH), 2 division units

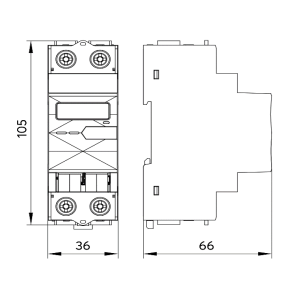

Product dimensions drawing
Pack size	123x72x41mm / 4.84x2.83x1.61" (LxWxH)
