Reproduktory Master/Client lze namontovat na strop, stěnu nebo do nábytku. Pro použití v otevřeném prostoru (např. perforovaný akustický strop) důrazně doporučujeme odpovídající back box.
Install Speaker 7 Passiv/Master/Client | Install Speaker 10 Passiv/Master/Client | Install Sub 10 Master/Client | |

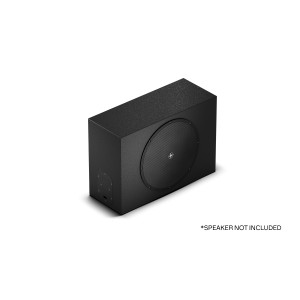

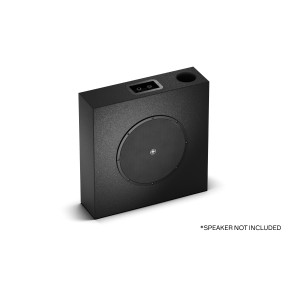

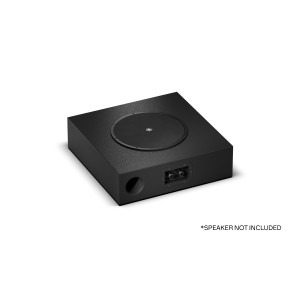

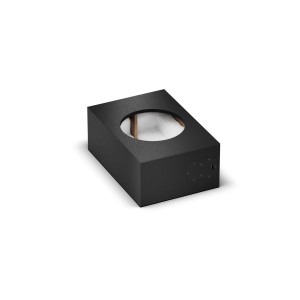

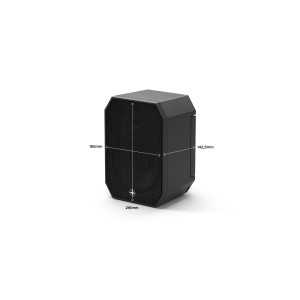

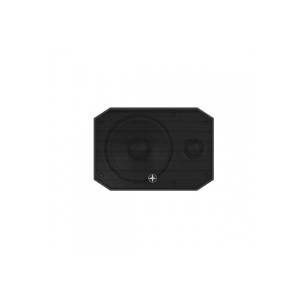

Surface Box for 10" Install Speaker Č. p.: 610159 Č. p.: 610172 | ✔ | ✔ | |
Surface Box for 7" Install Speaker Č. p.: 610158 Č. p.: 610171 | ✔ | ||

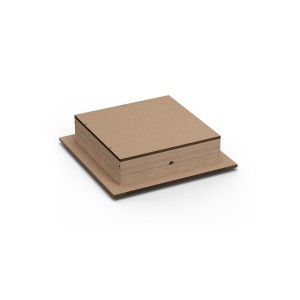

Box for 10" Install Speaker Č. p.: 610164 | ✔ | ✔ | |

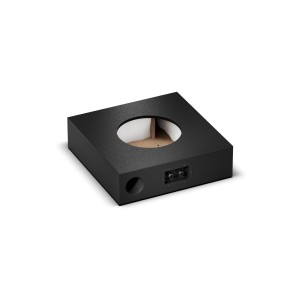

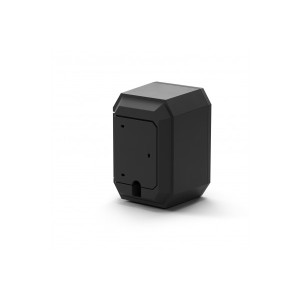

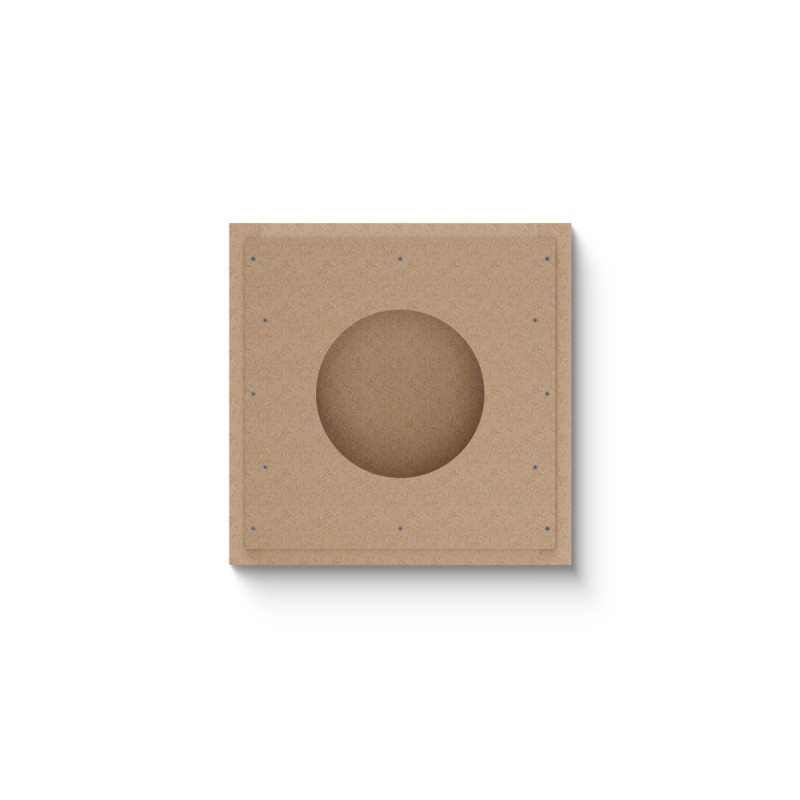

Backbox for 10" Install Speaker Č. p.: 610160 | ✔ | ||
Backbox for 7" Install Speaker Č. p.: 200202 | ✔ | ||
Concrete Backbox for 7" Install Speaker Č. p.: 610161 | ✔ | ||
Concrete Backbox for 10" Install Speaker Č. p.: 610173 | ✔ | ||
Vlastní box na míru (např. do nábytku) | Nejméně 7 litrů Výplň z tlumicího materiálu. | Nejméně 17 litrů Výplň z tlumicího materiálu. | Nejméně 30 litrů Výplň z tlumicího materiálu. |
| Supply voltage | 18VDC ... 26VDC |
|---|---|
| Power consumption |
1.5W (Standby) 35W (Peak) |
| LOXONE Tree Turbo | Connection with Audioserver or Miniserver Compact |
|---|---|
| Master-Client Interface (MCI) |
up to 20 speaker clients per Master up to 30m wire length between clients up to 600m total length Wiring: Twisted pair, Line topology |
| Wireless | Bluetooth: Input V4.2 |

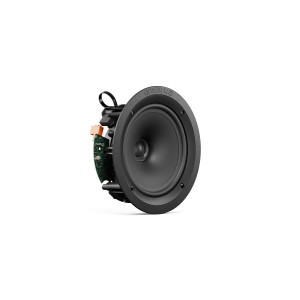

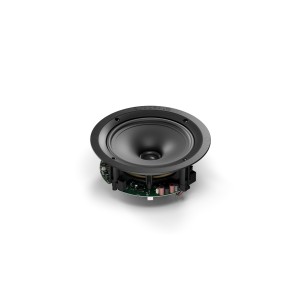

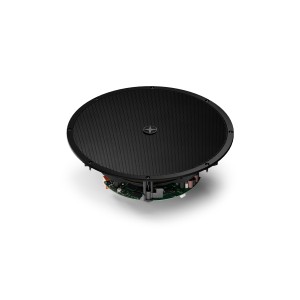

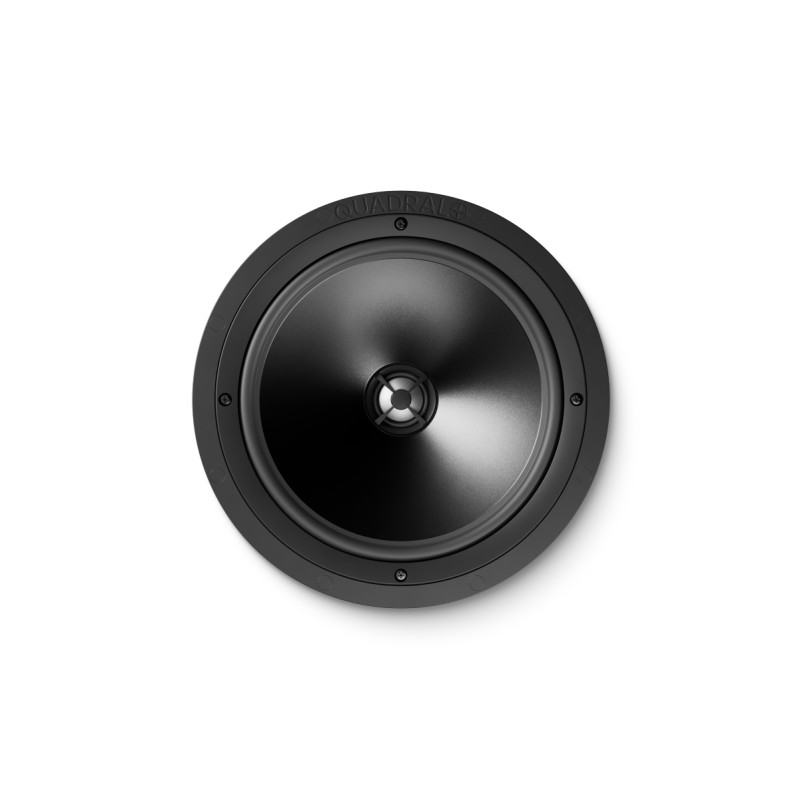

| Speaker type | 2-Way active speaker |
|---|---|
| Class-D Amplifier |
35W nominal power 70W peak power |
| Frequency range | 35 ... 23000Hz |
| Crossover frequency | 1 600 Hz |
| SPL | 108dB @ 1m max. |

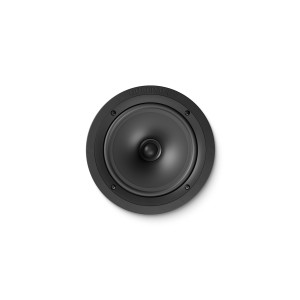

| Woofer Ø | 254 mm / 10“ |
| Woofer membrane material | Altima (Aluminium-, Titanium-, Magnesium- composite) |
| Tweeter Ø | 32 mm / 1.25“ |
| Tweeter dome material | Titanium |

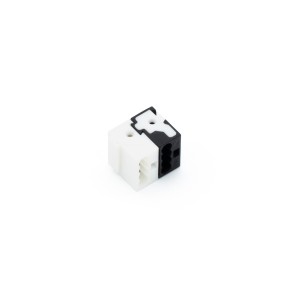

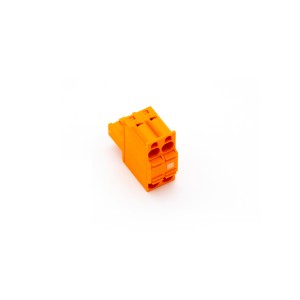

| Terminal type |
24VDC: TFKC 2.5 Tree Turbo, MCI: DG220B |
|---|---|
| Wire cross-section |
24VDC: 1 ... 2.5mm² / AWG17... 12 Tree Turbo, MCI: 0.28 ... 0.8mm² / AWG23 ... 18 |
| Conductor type |
24VDC: Stranded / Solid Tree Turbo, MCI: Solid |
| Stripping length |
24VDC: 10mm / 0.39“ Tree Turbo, MCI: 5 … 6mm / 0.2 … 0.24" |
| Temperature resistance |
24VDC: -40 ... 70°C / -40 ... 158°F Tree Turbo, MCI: -40 ... 105°C / -40 ... 221°F |
| Connection type |
24VDC: Push-in Tree Turbo, MCI: Push-in |

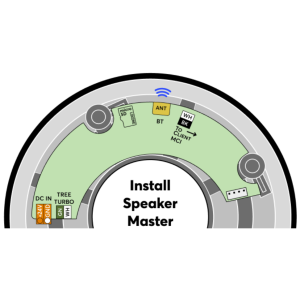

| Connection Diagram |
|
|---|
| Colours |
Speaker: Black, RAL9004 Front grille: White, RAL9003 |
|---|---|
| Finish | Matte |
| Net weight | 2.85 kg |
|---|---|
| Total weight | 3.45 kg |
| Hole cut out size | 258 mm / 10.2" (Ø) |
| Installation depth | 108 mm / 4.25" |
| Max. panel thickness | 36 mm / 1.41" |
| Product dimensions | 289 x 111 mm / 11.38 x 4.37" (Ø x D) |

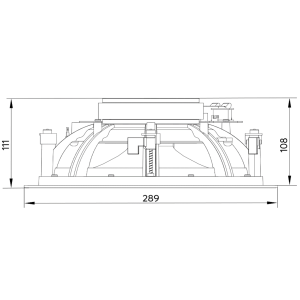

| Product dimensions drawing |
|
| Pack size | 325 x 330 x 150 mm / 12.80 x 12.99 x 5.91" (L x W x H) |
| Degree of pollution | 3 |
|---|---|

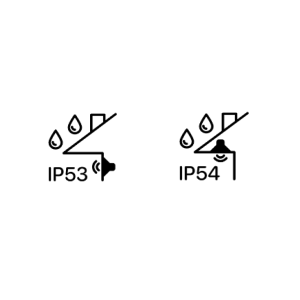

| Ingress protection |
|
| Humidity | max. 95 % RH (non-condensing) |
|---|
| Položka | Množství |
|---|---|
| Montážní šablona | 1 |

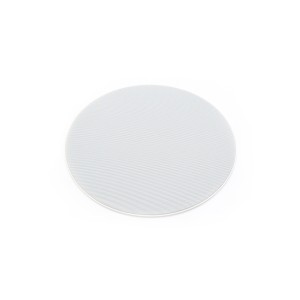

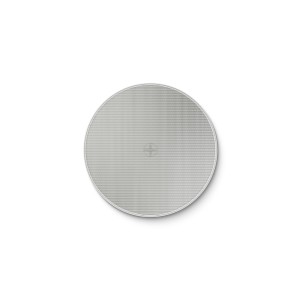

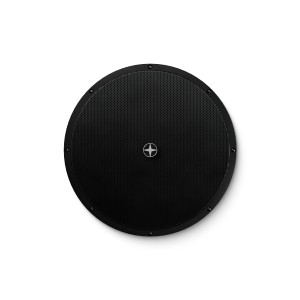

| Mřížkový kryt (bílý) | 1 |
| Příbalový leták | 1 |
