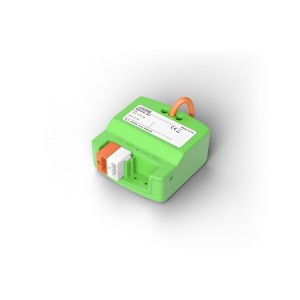

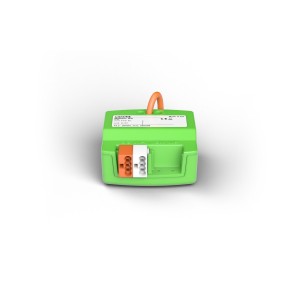

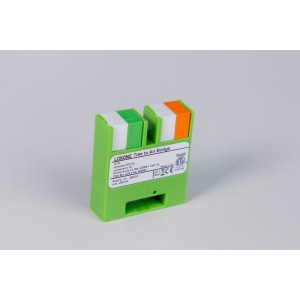

Belimo Air

Data sheet

Product Characteristics: Colours

Green: RAL 6018

Electrical Specifications: Supply voltage

19.3 … 30 VDC

Electrical Specifications: Power consumption

typ. 0.32 W

Electrical Specifications: Power loss at max. load

0.41 W

Ambient Conditions: Humidity

max. 95% r.H. (non condensing)

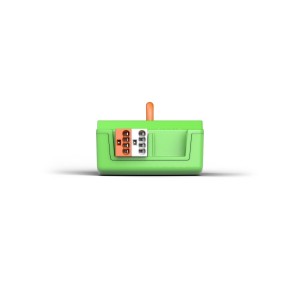

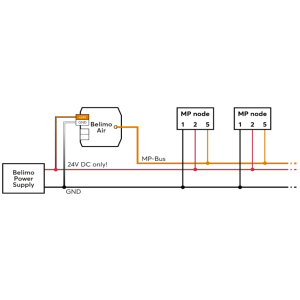

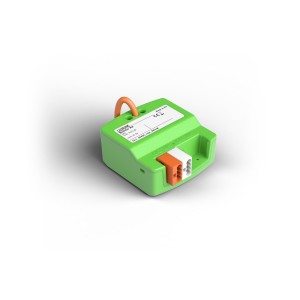

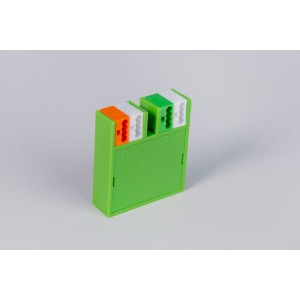

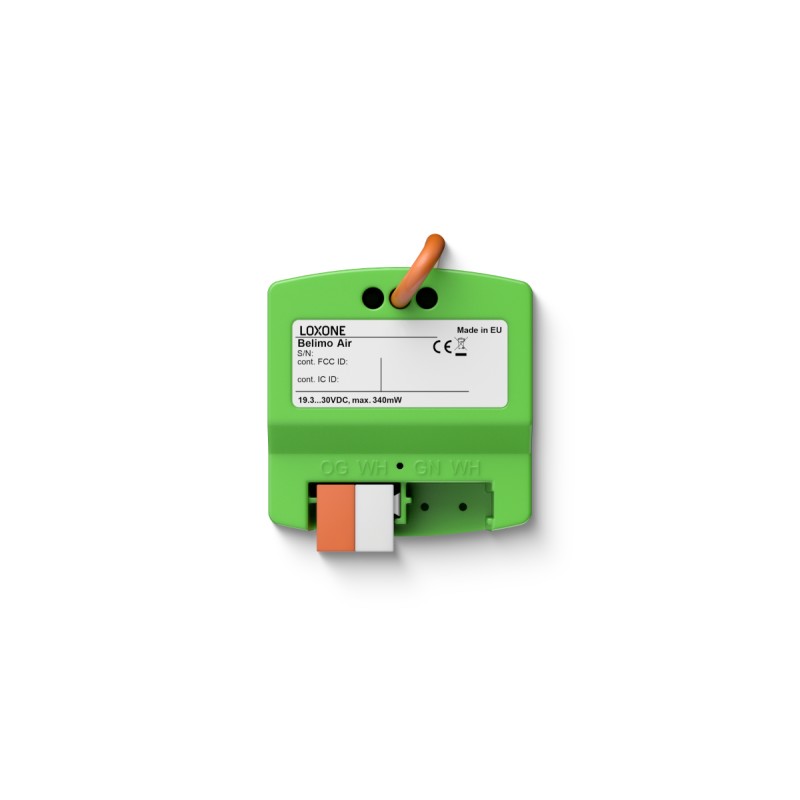

Connection Terminals: Terminal type

DC Supply: DG220B; MP-Bus: Connecting lead with open end

Connection Terminals: Wire cross-section

DC Supply: 0.28 … 0.8mm² AWG23 … 18; MP-Bus: 1.5mm² / AWG18

Connection Terminals: Stripping length

DC Supply: 5 … 6mm 0.2 … 0.24"; MP-Bus: -

Connection Terminals: Temperature resistance

DC Supply: -40 … 105°C / -40 … 221°F; MP-Bus: min. 80°C / 176°F IEC, min. 75°C / 167°F UL

Product Characteristics: Finish

Matte

Weight & Dimensions: Net weight

37g

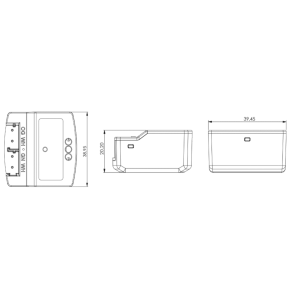

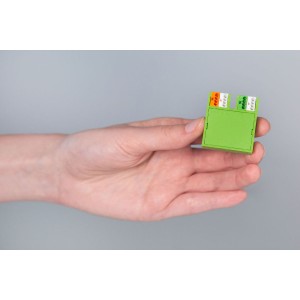

Weight & Dimensions: Product dimensions

39.45x38.95x20.20mm / 1.55x1.53x0.80” (LxWxH)

Electrical Specifications: Temperature

-20 … 70°C / -4 … 158°F

Certifications & Standards: Safety class

IP20

Interfaces: Belimo MP-Bus

MPL devices exclusive: up to 16; MP-Bus devices mixed: up to 8

Connection Terminals: Length

DC Supply: -; MP-Bus: 150mm / 5.91"
