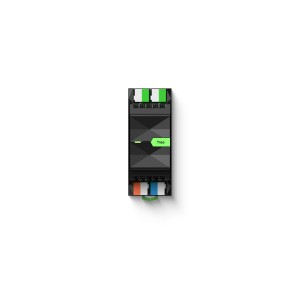

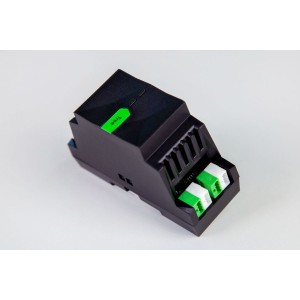

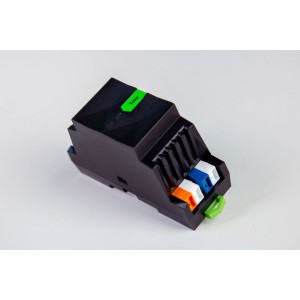

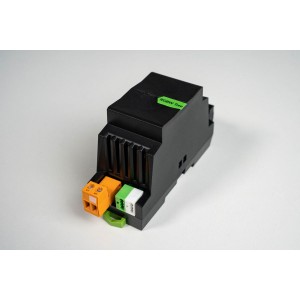

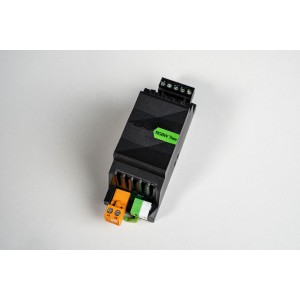

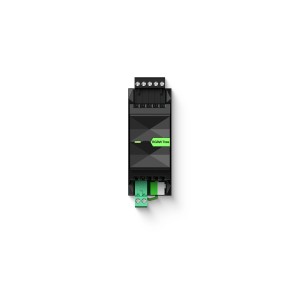

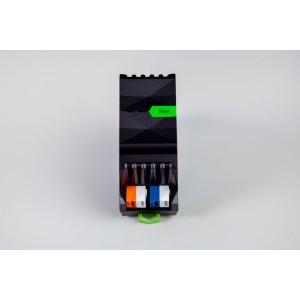

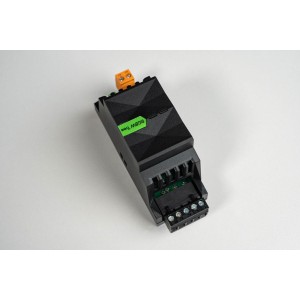

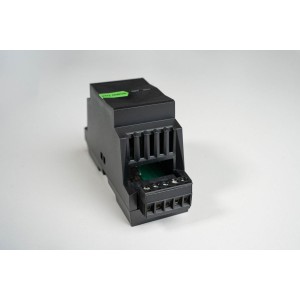

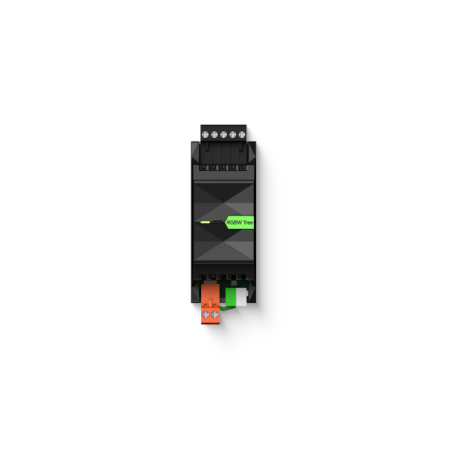

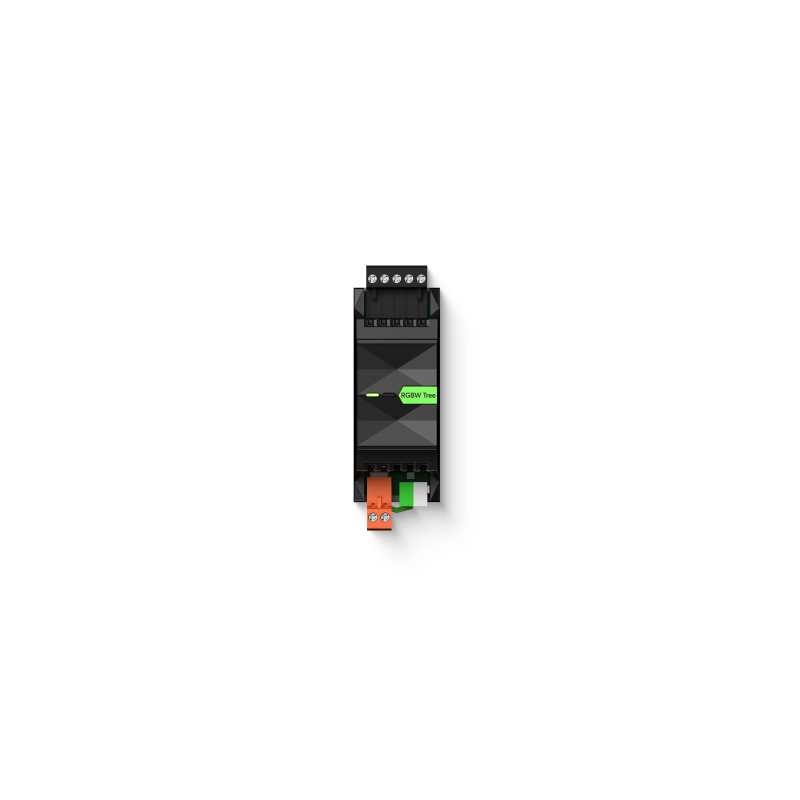

| Supply voltage | 12 … 28 VDC |
|---|---|
| Power consumption | typ. 0.066 W, max. 0.163 W |
| Outputs |
4 PWM outputs (max. 2.1A per channel) 100W at 12V 200W at 24V max. wire length to LED: 30m / 98ft |

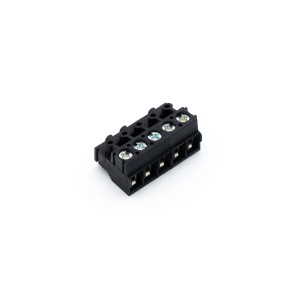

| Power loss at max. load | 3 W |
| PWM frequency | 123Hz |
| LOXONE Tree | connection with Miniserver / Tree Extension |
|---|
| Temperature | -40 … 55 °C / -40 … 131 °F |
|---|---|
| Humidity | max. 95 % RH (non-condensing) |
| Ingress protection | IP20 |
| Wire cross-section |
Power Supply & Outputs: 0.75 ... 2.5mm² / AWG18 ... 13 LOXONE Tree: 0.25 … 0.8mm² / AWG23 … 18 |
|---|---|
| Stripping length |
Power Supply & Outputs: 6 … 7.5mm / 0.24 … 0.30” LOXONE Tree: 5mm / 0.2" |
| Tightening torque |
Power Supply & Outputs: 0.5 ... 0.6Nm / 0.37 ... 0.44 lbf ft LOXONE Tree: - |
| Temperature resistance |
Power Supply & Outputs: min. 80°C / 176°F for IEC, min. 75°C / 167°F for UL LOXONE Tree: -40 … 105°C / -40 … 221°F |

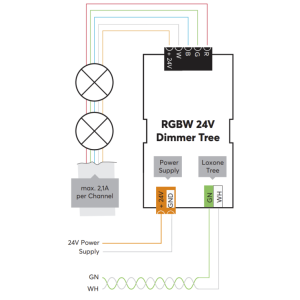

| Connection Diagram |
|

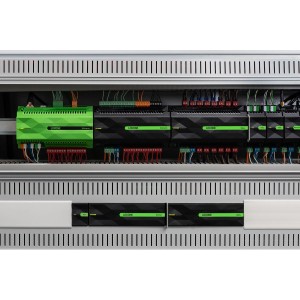

|---|
| Mounting type | DIN rail according to EN 50022, 35 mm |
|---|---|
| Colours | Black: RAL 9005 |
| Finish | Matte |
| Net weight | 67g |
|---|---|
| Total weight | 87 g |
| Product dimensions | 88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units |

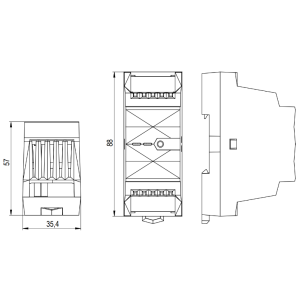

| Product dimensions drawing |
|
| Pack size | 121 x 38 x 62 mm / 4.76 x 1.50 x 2.44” (L x W x H) |
