Install Sub 10 Master
  • Install Sub 10 Master
  • Install Sub 10 Master
  • Install Sub 10 Master
  • Install Sub 10 Master
  • Install Sub 10 Master

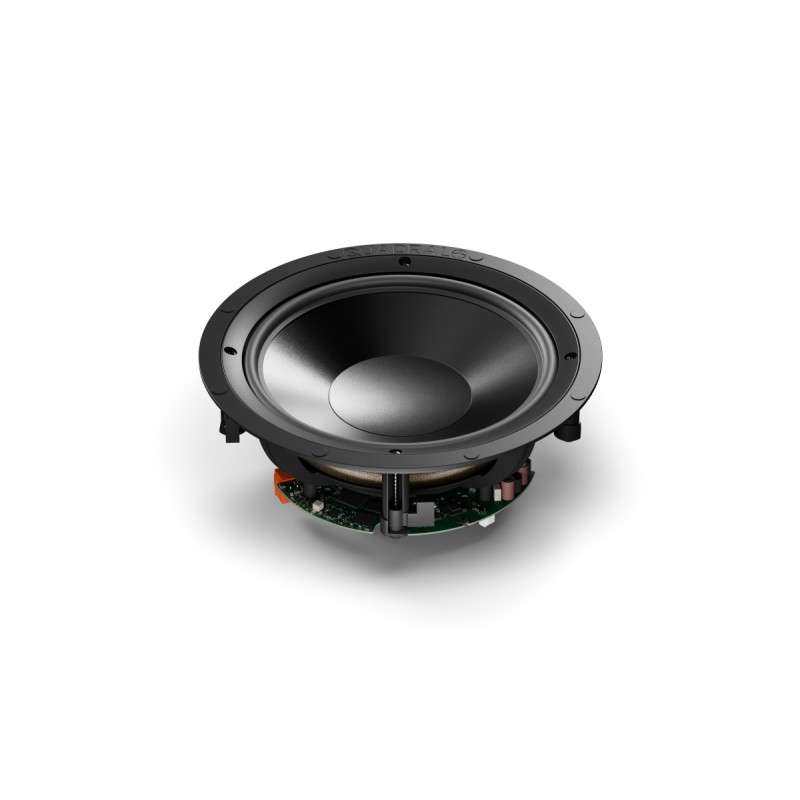

Install Sub 10 Master

610162
Loxone
Kč13,588
Kč13,588 Kč11,230 Kč13,588 Kč11,230
Tax included Tax included Tax excluded Tax included Tax excluded
Kč11,230 Tax excluded
Kč13,588 Tax included
Kč2,358 Tax
Kč11,230 Tax excluded
Kč2,358 Tax
Kč13,588 Tax included
Quantity
181 Items

Product Details
610162
181 Items


Install Speaker 7

Passiv/Master/Client

Install Speaker 10

Passiv/Master/Client

Install Sub 10

Master/Client

Surface Box for 10" Install Speaker

Č. p.: 610159

Č. p.: 610172


✔

✔

Surface Box for 7" Install Speaker

Č. p.: 610158

Č. p.: 610171

✔



Box for 10" Install Speaker

Č. p.: 610164


✔

✔

Backbox for 10" Install Speaker

Č. p.: 610160


✔


Backbox for 7" Install Speaker

Č. p.: 200202

✔



Concrete Backbox for 7" Install Speaker

Č. p.: 610161

✔



Concrete Backbox for 10" Install Speaker

Č. p.: 610173


✔


Vlastní box na míru

(např. do nábytku)

Nejméně 7 litrů

Výplň z tlumicího materiálu.

Nejméně 7 litrů

Výplň z tlumicího materiálu.

Nejméně 7 litrů

Výplň z tlumicího materiálu.

Snadná instalace na libovolné místo

Install Sub 10 Master lze pomocí příslušného back boxu namontovat na strop, stěnu nebo do nábytku. Na rozdíl od reproduktorů Install Speakers vyžaduje Install Sub 10 vždy vhodný back box.

Doporučený počet speakerů

Doporučujeme: Při použití 2–4 Install 7 Speakerů, případně dvou Install 10 Speakerů, zvažte nasazení subwooferu. Můžete, ale nemusíte: Použití subwooferu je věcí vkusu a závisí na místnosti a individuálních potřebách. I bez subwooferu získáte skvělý zvukový zážitek, ale pokud si ceníte obzvláště komplexního zvuku s bohatými basy, měli byste subwoofer přidat do své soustavy.

Datasheet

Supply and Power

Supply voltage 18VDC ... 26VDC
Power consumption 1.5W (Standby)
35W (Peak)

Interfaces

LOXONE Tree Turbo Connection with Audioserver or Miniserver Compact
Master-Client Interface (MCI) up to 20 speaker clients per Master
up to 30m wire length between clients
up to 600m total length
Wiring: Twisted pair, Line topology
Wireless Bluetooth: Input V4.2

Audio Specifications

Speaker type active Subwoofer, dual voice coil
Class-D Amplifier 35W nominal power
70W peak power
Frequency range 30 ... 100Hz
Crossover frequency 100Hz
SPL 105dB @ 1m max.
Woofer Ø 254 mm / 10“
Woofer membrane material Altima (Aluminium-, Titanium-, Magnesium- composite)

Ambient Conditions

Temperature -10…50 °C / 14…122 °F
Humidity max. 95 % RH (non-condensing)

Certifications & Standards

Ingress protection Ingress protection

Connection Terminals

Terminal type 24VDC: TFKC 2.5
Tree Turbo, MCI: DG220B
Wire cross-section 24VDC: 1 ... 2.5mm² / AWG17…12
Tree Turbo, MCI: 0.28 ... 0.8mm² / AWG23 ... 18
Conductor type 24VDC: Stranded / Solid
Tree Turbo, MCI: Solid
Stripping length 24VDC: 10mm / 0.39“
Tree Turbo, MCI: 5 ... 6mm / 0.2 ... 0.24"
Temperature resistance 24VDC: -40 ... 70°C / -40 ... 158°F
Tree Turbo, MCI: -40 ... 105°C / -40 ... 221°F
Connection type 24VDC: Push-in
Tree Turbo, MCI: Push-in

Connection Diagram

Connection Diagram Connection Diagram

Product Characteristics

Colours Black: RAL 9004
Finish Matte

Weight & Dimensions

Net weight 2.85 kg
Total weight 3.45 kg
Hole cut out size 258 mm / 10.2" (Ø)
Installation depth 108 mm / 4.25"
Max. panel thickness 36 mm / 1.41"
Product dimensions 289 x 111 mm / 11.38 x 4.37" (Ø x D)
Product dimensions drawing Product dimensions drawing
Pack size 325 x 330 x 150 mm / 12.80 x 12.99 x 5.91" (L x W x H)
Položka Množství
Šrouby pro montáž 1
Montážní šablona 1
Mřížkový kryt (černý) 1
Příbalový leták 1
