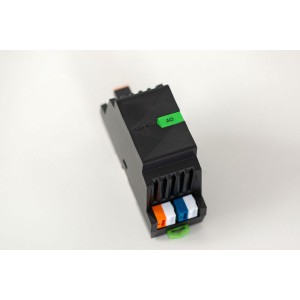

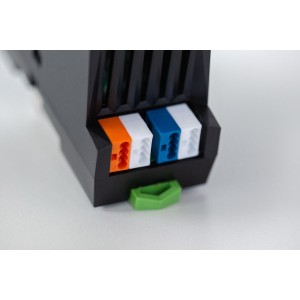

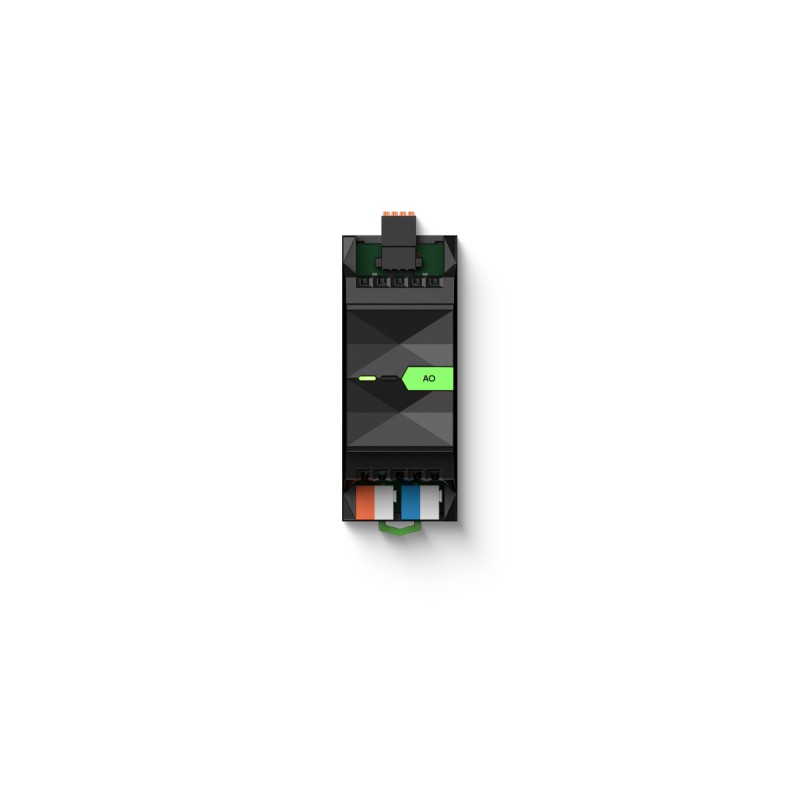

AO Extension

Data sheet

Product Characteristics: Colours

Black: RAL 9005

Electrical Specifications: Supply voltage

14 … 28 VDC

Electrical Specifications: Power consumption

typ. 0.11 W, max.1.26 W

Electrical Specifications: Power loss at max. load

1.26 W

Interfaces: LOXONE Link

Connection with Miniserver

Ambient Conditions: Temperature

0 … 55 °C / 32 … 131 °F

Ambient Conditions: Humidity

max. 95 % RH (non-condensing)

Ambient Conditions: Ingress protection

IP20

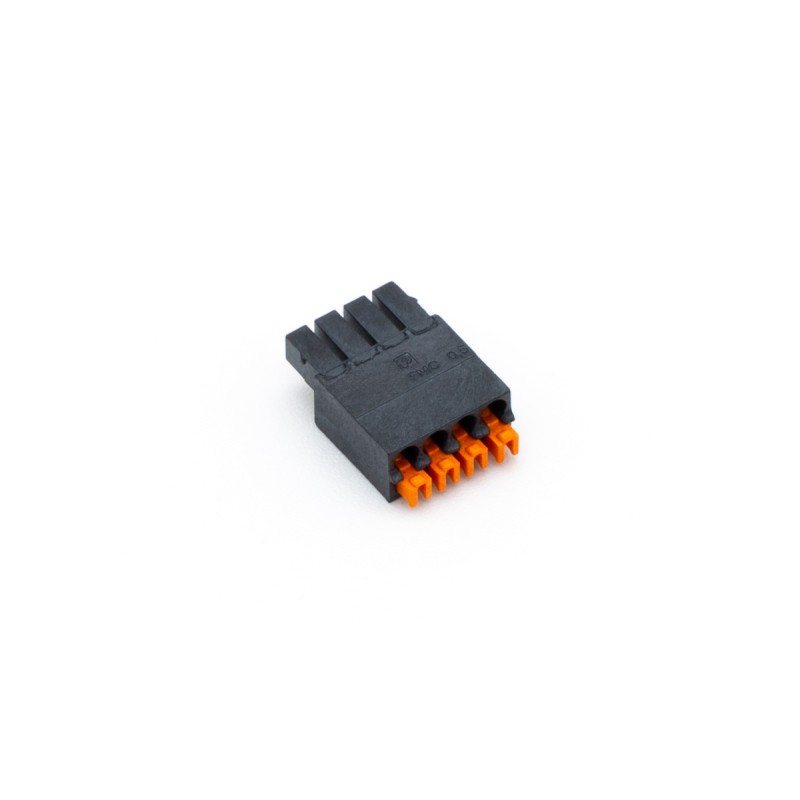

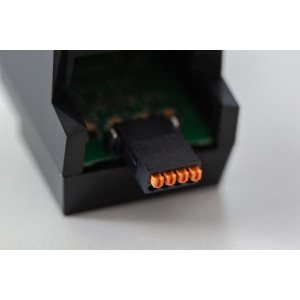

Connection Terminals: Terminal type

24 VDC & LOXONE Link; Outputs; DG220B; -

Connection Terminals: Wire cross-section

0.25 … 0.8 mm² / AWG 23 … 18; 0.14 … 0.5 mm² / AWG 26 … 20

Connection Terminals: Stripping length

5 mm / 0.2"; 7 mm / 0.28"

Connection Terminals: Temperature resistance

-40 … 105 °C / -40 … 221 °F; -40 … 70 °C / -40 … 158 °F

Product Characteristics: Mounting type

DIN rail according to EN 50022, 35 mm

Product Characteristics: Finish

Matte

Weight & Dimensions: Net weight

338 g

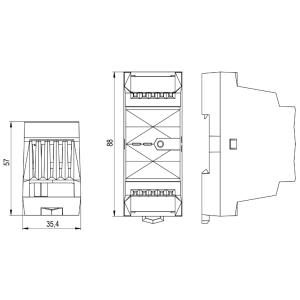

Weight & Dimensions: Product dimensions

88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units

Certifications & Standards: Certifications

UL 62368-1; CSA C22.2#62368-1

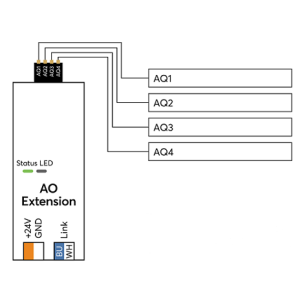

Outputs: Analogue (4)

Range: 0 ... 10 V; Momentary output: max. 20 mA; Continuous output: max. 10 mA; Resolution: 0.1 V
