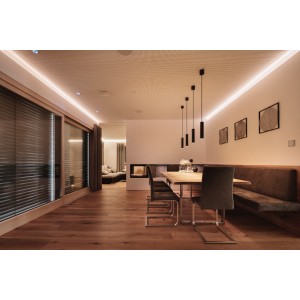

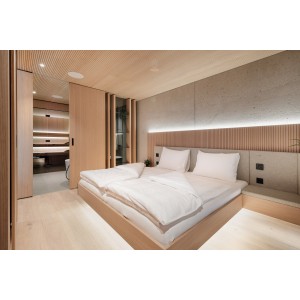

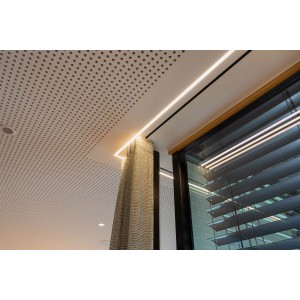

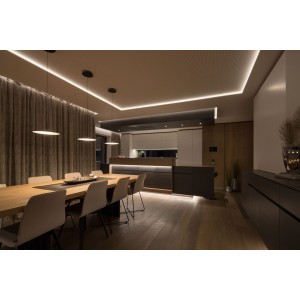

Ať už uvnitř, nebo venku – nepřímé osvětlení vždy upoutá pozornost. LED pásky můžete umístit například do polic, vitrín, šatních skříní, za TV skříňky, k rámu postele, na schody nebo k podlahovým či stropním lištám. Skvěle vyniknou i ve venkovním prostoru.
| Power Supply | 24VDC constant voltage, PWM dimmable |
|---|---|
| Power consumption |
Total: 60W, 12W/m WW: 30W, 6W/m CW: 30W, 6W/m |
| Energy efficiency (EU) 2017/1369 | G |
| Humidity | 10 … 95 % RH (non-condensing) |
| Cuttable | Every 10cm / 3.94" |
| Max. LED strip length | 10m / 393.7" |
| Temperature | -25 … 50 °C / -13 … 122 °F |
|---|
| Colour temperature |
WW: 2900K (+/- 200K) CW: 6000K (+/- 200K) |
|---|---|
| Luminous flux | 720lm/m |
| Colour rendering index (CRI) | 80+ |
| Luminous Efficiency | 60lm/W |
| Beam angle | 120° |
| Wire cross-section |
Connection Cables: 0.5mm² / AWG22 Connector: 0.5 … 1mm² / AWG22 … AWG18 |
|---|---|
| Temperature resistance |
Connection Cables: max. 70°C / 158°F Connector: max. 70°C / 158°F |
| Length |
Connection Cables: 130mm / 5.12" Connector: - |
| Connector type |
Type of Connector: - Connector: Hippo-M |
| Wire colours |
Black: Plus (+) Yellow: WW (-) White: CW (-) |
| Connection Diagram |
|
|---|
| Net weight | 108 g |
|---|---|
| Total weight | 146g |
| Product dimensions | 5000x10x2mm / 196.85x0.39x0.08" |
| Product dimensions drawing |
|
| Pack size | 142x142x25.5mm / 5.59x5.59x1" (LxWxH) |
| Safety class | IP20 |
|---|
| Položka | Množství |
|---|---|
| WAGO svorky | 1 |
| Datasheet | 1 |
