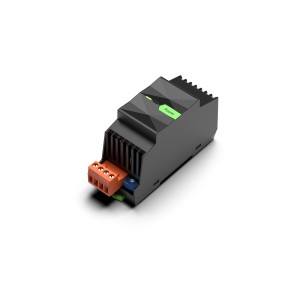

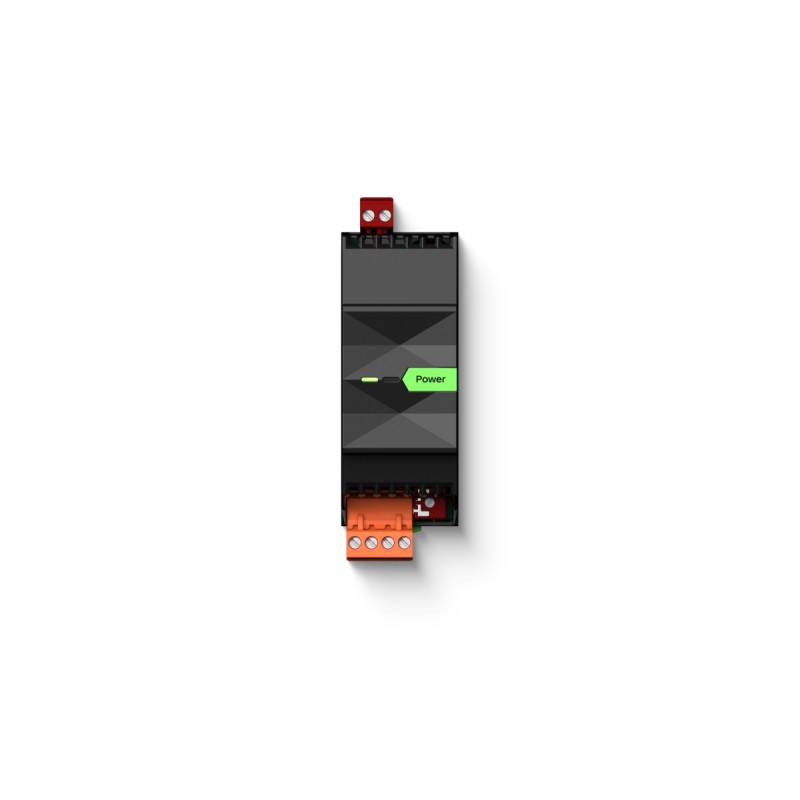

Power Supply 4,2 A
  • Power Supply 4,2 A
  • Power Supply 4,2 A

Power Supply 4,2 A

100617
Loxone
Kč1,730
Tax excluded
Kč363 Tax
Kč2,093 Tax included
Quantity
4132 Items

Product Details
100617
4132 Items
Datasheet

AC Input (mains voltage)

Nominal voltage 120 ... 240VAC, 50 ... 60Hz
Input current 0.95A
Inrush current typ. 80A
Efficiency typ. 93%
Power consumption no load typ. 250mW
Power factor typ. 0.55

DC Outputs

Nominal voltage 22.5 ... 27VDC (+/- 7%)
Nominal current 4.2A @ 240VAC
2.5A @ 120VAC
Response to output short circuit Automatic restarts
Parallel operation Not permitted

Ambient Conditions

Temperature -25 ... 70°C / -13 ... 158°F
Derating above 40°C required
Humidity max. 95 % RH (non-condensing)

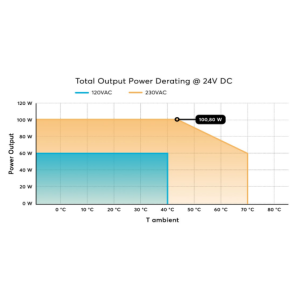

Derating Curve

Derating curve diagram Derating curve diagram

Connection Terminals

Wire cross-section AC Input: 0.25 ... 2.5mm² / AWG30 ... 12
DC Outputs: 0.25 ... 2.5mm² / AWG28 ... 12
Stripping length AC Inputs: 7mm / 0.28"
DC Outputs: 7mm / 0.28"
Torque of terminal blocks AC Input: 0.5Nm / 0.37 lbf ft
DC Output: 0.5Nm / 0.37 lbf ft
Temperature resistance AC Input: -40 ... 115°C / -40 ... 239°F
DC Output: -40 ... 120°C / -40 ... 248°F

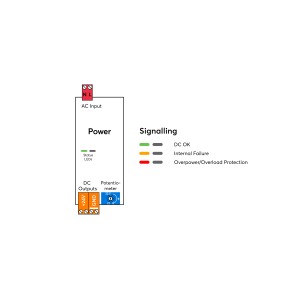

Connection Diagram

Connection Diagram Connection Diagram

Product Characteristics

Mounting type DIN rail according to EN 50022, 35 mm
Colours Black: RAL 9005
Finish Matte

Weight & Dimensions

Net weight 142.8 g
Total weight 165.2 g
Product dimensions 36.1x112x57.1mm / 1.42x4.41x2.24” (LxWxH), 2 division units

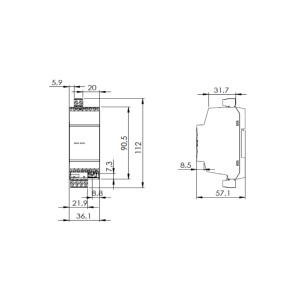

Product dimensions drawing Product dimensions drawing
Pack size 132x38x62mm / 5.20x1.50x2.44” (LxWxH)

Certifications & Standards

Safety class IP20
Safety class Type 2 (built-in device with permanent wiring)
Degree of pollution 2
EMC complies with following standards EN 61000-6-1
EN 61000-6-3
Certifications IEC 62368-1
EN 61000-3-2
CB certificate, UL62368 "Multilisting"
Položka Množství
Příbalový leták 1
