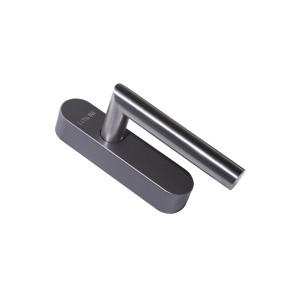

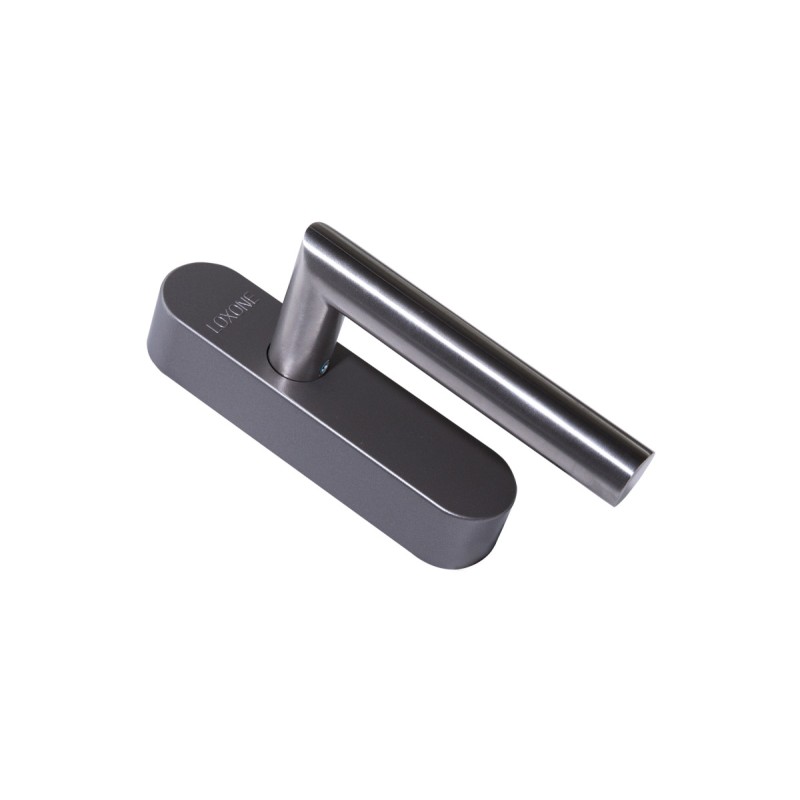

Data sheet
| Power Supply | 2x 1.5V AA batteries |
|---|---|
| Battery Lifetime | up to 2 years |
| LOXONE Air |
LOXONE Air: 868MHz (SRD Band Europe), 4 channels available 915MHz (ISM Band Region 2), 10 channels available max. Power 3.16mW |
| Temperature | 0 … 50°C / 32 … 122°F |
| Humidity detection range | 0 … 100% r.H. +/- 2%, (non condensing) |
| Humidity | max. 95% r.H. (non condensing) |
|---|
| Spindle length | 32/37mm, 43mm |
|---|---|
| Screw length | 40 & 50mm, 50 & 60mm |
| Square spindle | 7mm |

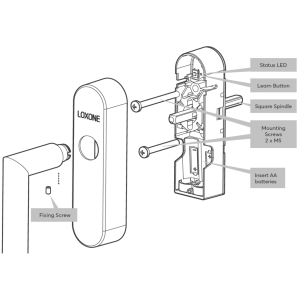

| Connection Diagram |
|
|---|
| Locking | 4x 90° ball locking |
|---|---|
| Material | Stainless steel |
| Finish | Matte |
| Net weight | 218 g |
|---|---|
| Total weight | 360 g |
| Product dimensions | 144.6x36.3x26.7mm / 5.69x1.43x1.05” (LxWxH) |

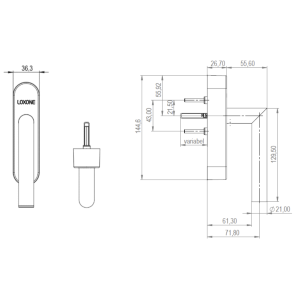

| Product dimensions drawing |
|
| Pack size | 230x160x38mm / 9.06x6.30x1.50” (LxWxH) |
| Safety class | IP20 |
|---|
| Položka | Množství |
|---|---|
| Baterie AA | 2 |
| Šrouby M5, délka 40–50–60 mm | 3 |
| Imbusový klíč | 1 |
| Příbalový leták | 1 |
