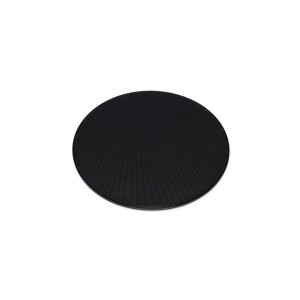

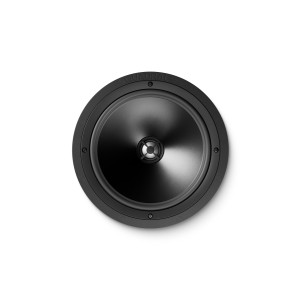

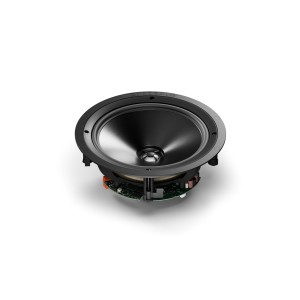

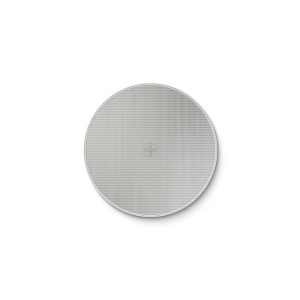

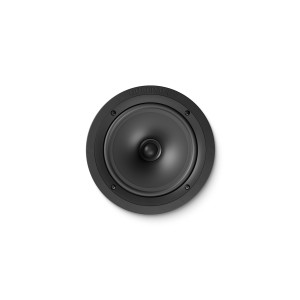

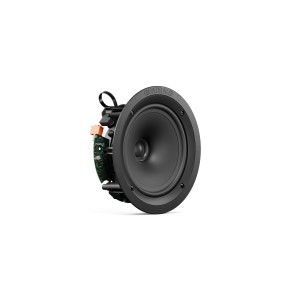

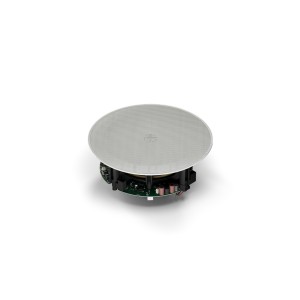

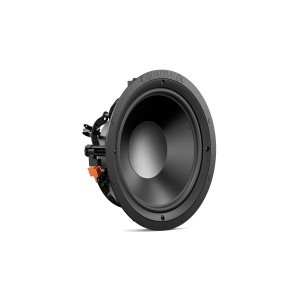

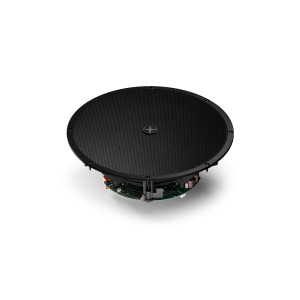

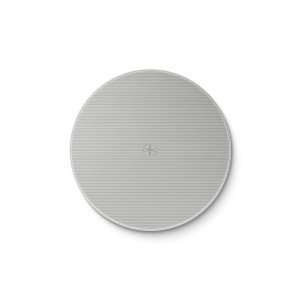

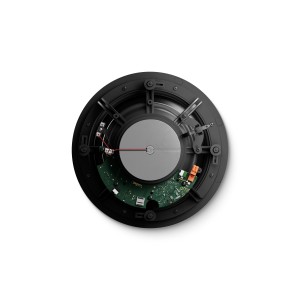

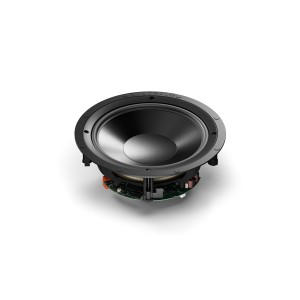

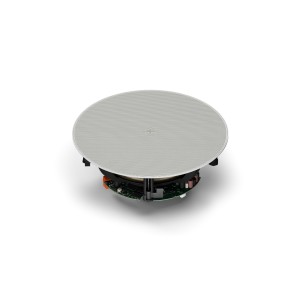

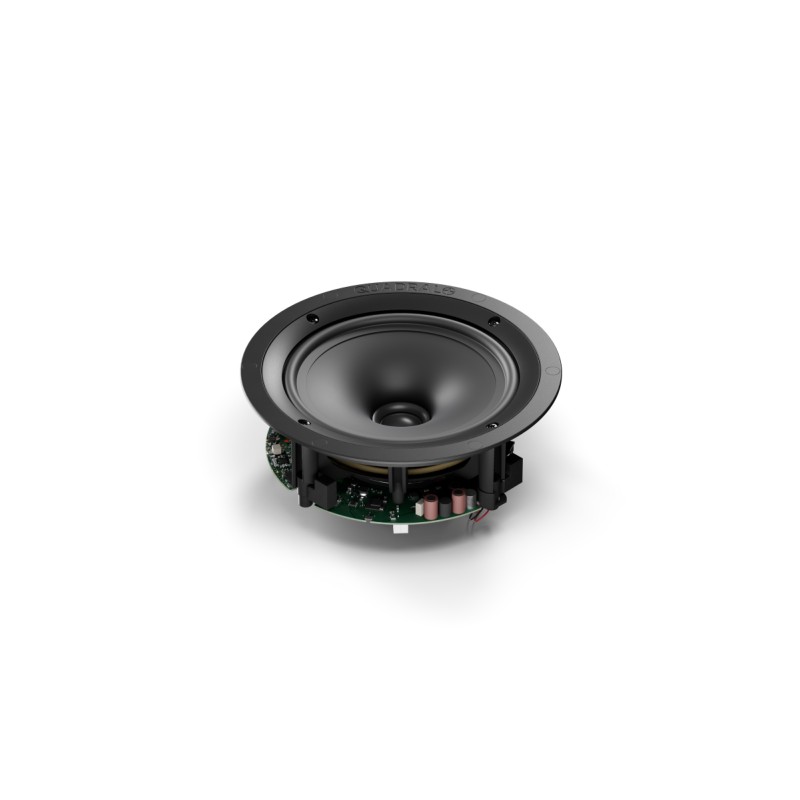

Install Speaker 7 Master

Name: Install Speaker 7 Master
Brand: Loxone
SKU: 610149
Price: 9051 CZK
Availability: InStock

Reference 610149

Brand Loxone

Kč7,480

Tax excluded

Kč1,571 Tax

Kč9,051 Tax included

Quantity

In stock: 1772 Items

Product Details

Reference 610149

In stock 1772 Items

Data sheet

Product Characteristics: Colours: Speaker: Black, RAL9004 Front grille: White, RAL9003
Ambient Conditions: Temperature: -10…50 °C / 14…122 °F
Ambient Conditions: Humidity: max. 95 % RH (non-condensing)
Connection Terminals: Terminal type: 24VDC: TFKC2.5; Tree Turbo, MCI: DG220B;
Connection Terminals: Wire cross-section: 24VDC: 1 ... 2.5mm² / AWG17 ... 12; Tree Turbo, MCI: 0.28 ... 0.8mm² / AWG23 ... 18
Connection Terminals: Stripping length: 24VDC: 10mm / 0.39“; Tree Turbo, MCI: 5 ... 6mm / 0.2 ... 0.24"
Connection Terminals: Temperature resistance: 24VDC: -40 ... 70°C / -40 ... 158°F; Tree Turbo, MCI: -40 ... 105°C / -40 ... 221°F
Product Characteristics: Finish: Matte
Weight & Dimensions: Net weight: 1.93 kg
Weight & Dimensions: Product dimensions: 232.2mm x 95.1mm / 9.14"x3.74" (ØxD)
Interfaces: LOXONE Tree Turbo: Connection with Audioserver or Miniserver Compact
Audio Specifications: Speaker type: 2-Way active speaker
Audio Specifications: Frequency range: 45…28.000Hz
Audio Specifications: Tweeter Ø: 25.4mm / 1"
Audio Specifications: Woofer Ø: 178mm / 7"
Audio Specifications: Woofer membrane material: Carbon filled Polypropylene
Weight & Dimensions: Hole cut out size: 203mm / 8" (Ø)
Weight & Dimensions: Installation depth: 93mm / 3.66"
Weight & Dimensions: Max. panel thickness: 36 mm / 1.41"
Supply and Power: Power consumption: 1.5W (Standby) 35W (Peak)
Certifications & Standards: Ingress protection: IP 53 / IP 54
Audio Specifications: Crossover frequency: 2100Hz
Audio Specifications: Tweeter dome material: Silk
Supply and Power: Supply voltage: 18VDC ... 26VDC
Interfaces: Master-Client Interface (MCI): up to 20 speaker clients per Master up to 30m wire length between clients up to 600m total length Wiring: Twisted pair, Line topology
Interfaces: Wireless: Bluetooth: Input 4.2
Audio Specifications: Class-D Amplifier: 35 W nominal power; 70 W peak power
Audio Specifications: SPL: 105dB @ 1m max.
Connection Terminals: Conductor type: 24VDC: Stranded / Solid; Tree Turbo, MCI: Solid
Connection Terminals: Connection type: 24VDC: Push-in; Tree Turbo, MCI: Push-in

Snadná instalace na libovolné místo

Reproduktory Master/Client lze namontovat na strop, stěnu nebo do nábytku. Pro použití v otevřeném prostoru (např. perforovaný akustický strop) důrazně doporučujeme odpovídající back box.

	Install Speaker 7 Passiv/Master/Client	Install Speaker 10 Passiv/Master/Client	Install Sub 10 Master/Client

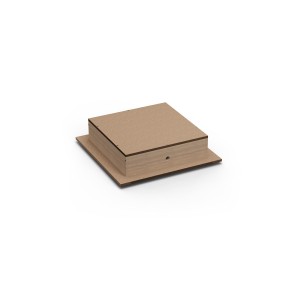

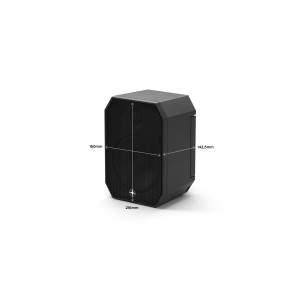

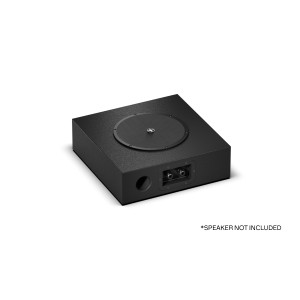

Surface Box for 10" Install Speaker Č. p.: 610159 Č. p.: 610172		✔	✔

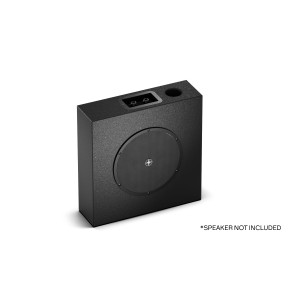

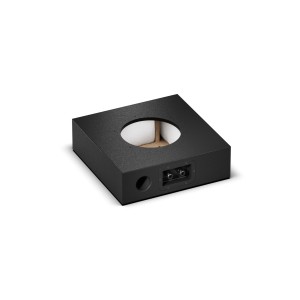

Surface Box for 7" Install Speaker Č. p.: 610158 Č. p.: 610171	✔

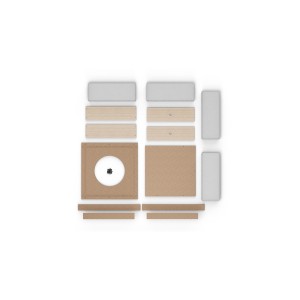

Box for 10" Install Speaker Č. p.: 610164		✔	✔

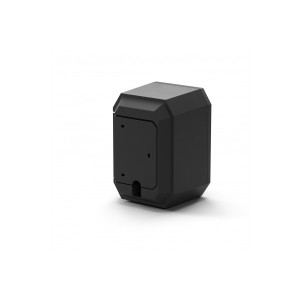

Backbox for 10" Install Speaker Č. p.: 610160		✔
Backbox for 7" Install Speaker Č. p.: 200202	✔

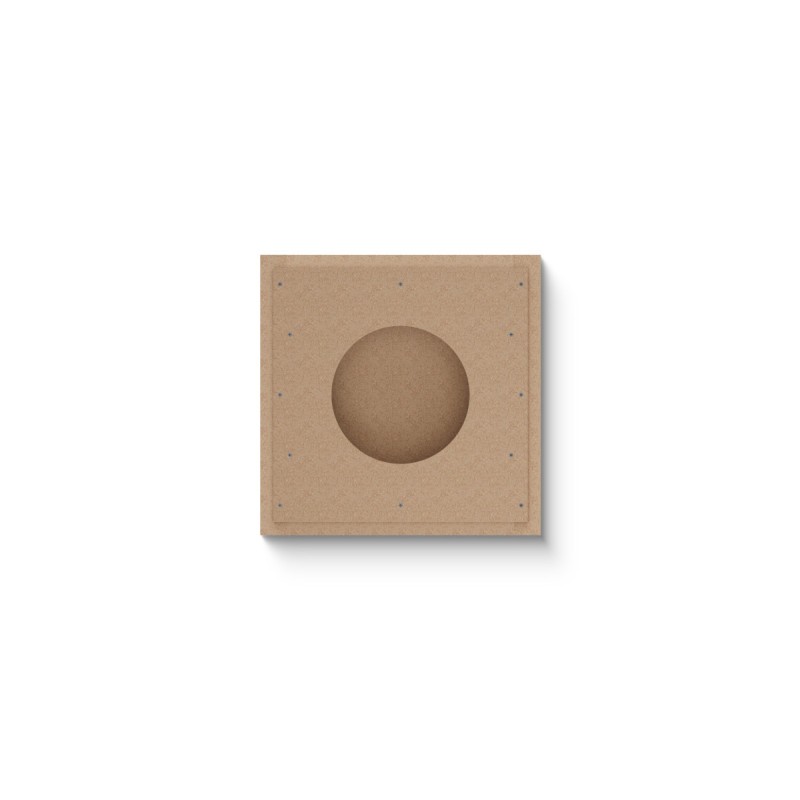

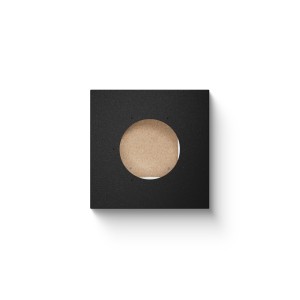

Concrete Backbox for 7" Install Speaker Č. p.: 610161	✔
Concrete Backbox for 10" Install Speaker Č. p.: 610173		✔
Vlastní box na míru (např. do nábytku)	Nejméně 7 litrů Výplň z tlumicího materiálu.	Nejméně 17 litrů Výplň z tlumicího materiálu.	Nejméně 30 litrů Výplň z tlumicího materiálu.

Doporučení pro instalaci: vzdálenost od stěn

Počet reproduktorů v místnosti

Datasheet

Supply and Power

Supply voltage	18VDC ... 26VDC
Power consumption	1.5W (Standby) 35W (Peak)

Interfaces

LOXONE Tree Turbo	Connection with Audioserver or Miniserver Compact
Master-Client Interface (MCI)	up to 20 speaker clients per Master up to 30m wire length between clients up to 600m total length Wiring: Twisted pair, Line topology
Wireless	Bluetooth: Input 4.2

Audio Specifications

Speaker type	2-Way active speaker
Class-D Amplifier	35 W nominal power 70 W peak power
Frequency range	45…28.000Hz
Crossover frequency	2100Hz
SPL	105dB @ 1m max.
Woofer Ø	178mm / 7"
Woofer membrane material	Carbon filled Polypropylene
Tweeter Ø	25.4mm / 1"
Tweeter dome material	Silk

Ambient Conditions

Temperature	-10…50 °C / 14…122 °F
Humidity	max. 95 % RH (non-condensing)

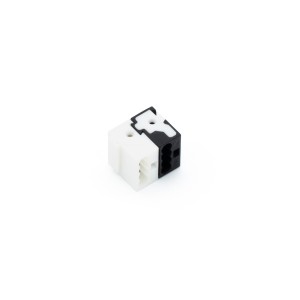

Connection Terminals

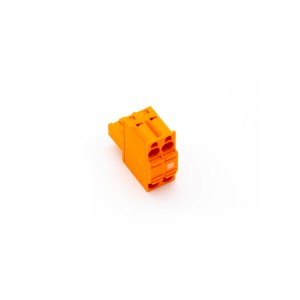

Terminal type	24VDC: TFKC2.5 Tree Turbo, MCI: DG220B
Wire cross-section	24VDC: 1 ... 2.5mm² / AWG17 ... 12 Tree Turbo, MCI: 0.28 ... 0.8mm² / AWG23 ... 18
Conductor type	24VDC: Stranded / Solid Tree Turbo, MCI: Solid
Stripping length	24VDC: 10mm / 0.39“ Tree Turbo, MCI: 5 ... 6mm / 0.2 ... 0.24"
Temperature resistance	24VDC: -40 ... 70°C / -40 ... 158°F Tree Turbo, MCI: -40 ... 105°C / -40 ... 221°F
Connection type	24VDC: Push-in Tree Turbo, MCI: Push-in

Connection Diagram

Connection Diagram

Product Characteristics

Colours	Speaker: Black, RAL9004 Front grille: White, RAL9003
Finish	Matte

Weight & Dimensions

Net weight	1.93 kg
Total weight	2.37 kg
Hole cut out size	203mm / 8" (Ø)
Installation depth	93mm / 3.66"
Max. panel thickness	36 mm / 1.41"
Product dimensions	232.2mm x 95.1mm / 9.14"x3.74" (ØxD)

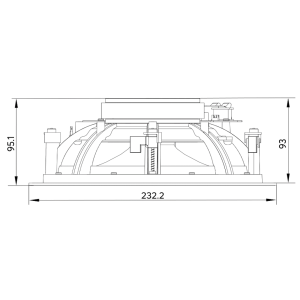

Product dimensions drawing
Pack size	265x270x140mm / 10.43x10.63x5.51" (LxWxH)

Certifications & Standards

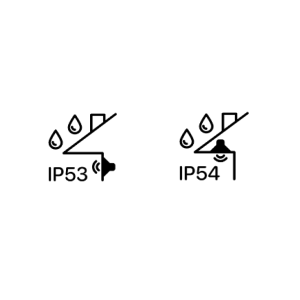

Ingress protection

Položka	Množství
Mřížkový kryt (bílý)	1
Montážní šablona	1
Příbalový leták	1
