| Power Supply | 220 ... 240VAC, 50/60 H |
|---|---|
| Power consumption | typ. 0.40 W, max. 0.50 W |
| Power loss at max. load | 5 W |
| Outputs |
dimmable output (phase cut, trailing / leading edge) resistive load: 30 ... 200W capacitive load: 15 ... 110VA inductive load: 30 ... 200VA |
| Temperature | -40 ... 35°C / -40 ... 98°F |
| Humidity | max. 95% r.H. (non condensing) |
|---|
| LOXONE Air |
868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW internal antenna |
|---|
| Wire cross-section | 1.0 ... 2.5mm² / AWG18 ... 13 |
|---|---|
| Stripping length | 6mm / 0.23” |
| Temperature resistance |
80°C / 176°F for IEC, 75°C / 167°F for UL |
| Power rating of connectors | max. 10A |

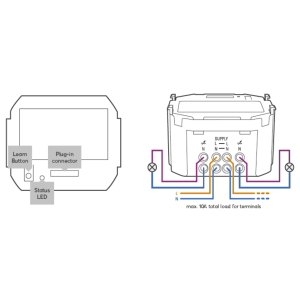

| Connection Diagram |
|
|---|
| Colours | Green: RAL 6018 |
|---|---|
| Finish | Matte |
| Net weight | 50g |
|---|---|
| Total weight | 70 g |
| Product dimensions | 53x52x29mm / 2.09x2.05x1.14” (LxWxH) |

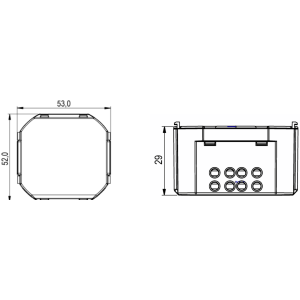

| Product dimensions drawing |
|
| Pack size | 95x88x33mm / 3.74x3.46x1.30” (LxWxH) |
| Safety class | IP20 |
|---|---|
| Operation | Type 1 (EN60669-1:2009 & DIN EN 60669-2:2010) |
| Rated impulse voltage for dimmer output | 1 kV (max. altitude 2000 m) |
| Položka | Množství |
|---|---|
| Příbalový leták | 1 |
