| Power Supply | 2x 1.5V AAA batteries (2.2 ... 3.6VDC) |
|---|---|
| Battery Lifetime | 18 months |
| Buttons | 12 |
| LOXONE Air |
868MHz (SRD Band Europe), 4 channels, max. 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels, max. 13.2mW internal antenna |
|---|
| Operaiting temperature | 5 … 40°C / 41 … 140°F |
|---|---|
| Storage temperature | -25 … 65 °C / -13 … 149 °F |
| Humidity | max. 95 % RH (non-condensing) |
| Ingress protection | IP20 |

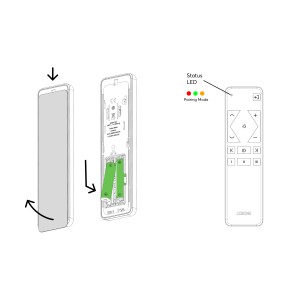

| Connection Diagram |
|
|---|
| Colours |
White: Part No. 100624 Anthracite: Part No. 100625 |
|---|---|
| Finish | Matte |
| Net weight | 65 g |
|---|---|
| Total weight | 110 g |
| Product dimensions | 157.6x43.1x15.5mm / 6.2x1.7x0.61” (LxWxH) |

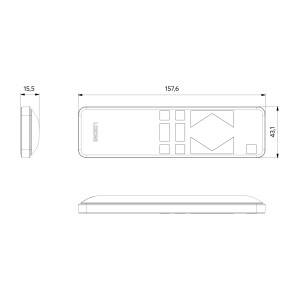

| Product dimensions drawing |
|
| Pack size | 205x54x22mm / 8.07x2.13x0.87” (LxWxH) |
| Certifications | IEC 62368-1:2023 |
|---|
| Položka | Množství |
|---|---|
| Baterie AAA | 2 |
| Příbalový leták | 1 |
Your review appreciation cannot be sent
Report comment
Report sent
Your report cannot be sent
Write your review
Review sent
Your review cannot be sent
Reference: 100547
Brand: Loxone
