Data sheet
| Supply voltage | 9 … 28 V DC |
|---|---|
| Power consumption | max. 0.06 W |
| Power loss at max. load | 0.06 W |
| LOXONE Link | Connection with Miniserver |
|---|---|
| Fröling |
max. 18 heating circuits, 8 boilers or 4 buffer cylinders max. 15 m wire length Fröling Software version 5.11 or higher required |
| Temperature | -40 … 70 °C / -40 … 158 °F |
|---|---|
| Humidity | max. 95 % RH (non-condensing) |
| Ingress protection | IP20 |
| Terminal type |
24 VDC & LOXONE Link Interface DG220B - |
|---|---|
| Wire cross-section |
0.25 … 0.8 mm² / AWG 23 … 18 0.14 … 0.5 mm² / AWG 26 … 20 |
| Stripping length |
5 mm / 0.2" 7 mm / 0.28" |
| Temperature resistance |
-40 … 105 °C / -40 … 221 °F -40 … 70 °C / -40 … 158 °F |

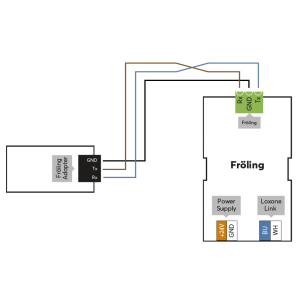

| Connection Diagram |
|
|---|
| Mounting type | DIN rail according to EN 50022, 35 mm |
|---|---|
| Colours | Black: RAL 9005 |
| Finish | Matte |
| Net weight | 65 g |
|---|---|
| Total weight | 85 g |
| Product dimensions | 88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units |

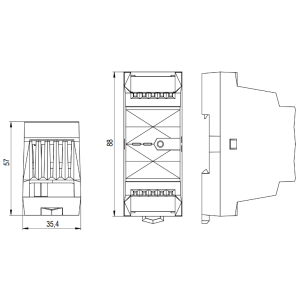

| Product dimensions drawing |
|
| Pack size | 121 x 38 x 62 mm / 4.76 x 1.50 x 2.44” (L x W x H) |
| Položka | Množství |
|---|---|
| Adaptér Fröling DB9 | 1 |
| Příbalový leták | 1 |
Your review appreciation cannot be sent
Report comment
Report sent
Your report cannot be sent
Write your review
Review sent
Your review cannot be sent
Reference: 100786
Brand: Loxone
