DALI Air
  • DALI Air
  • DALI Air
  • DALI Air

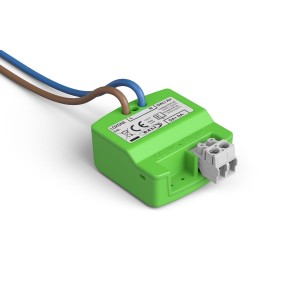

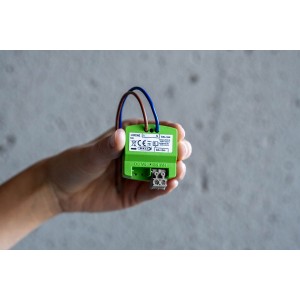

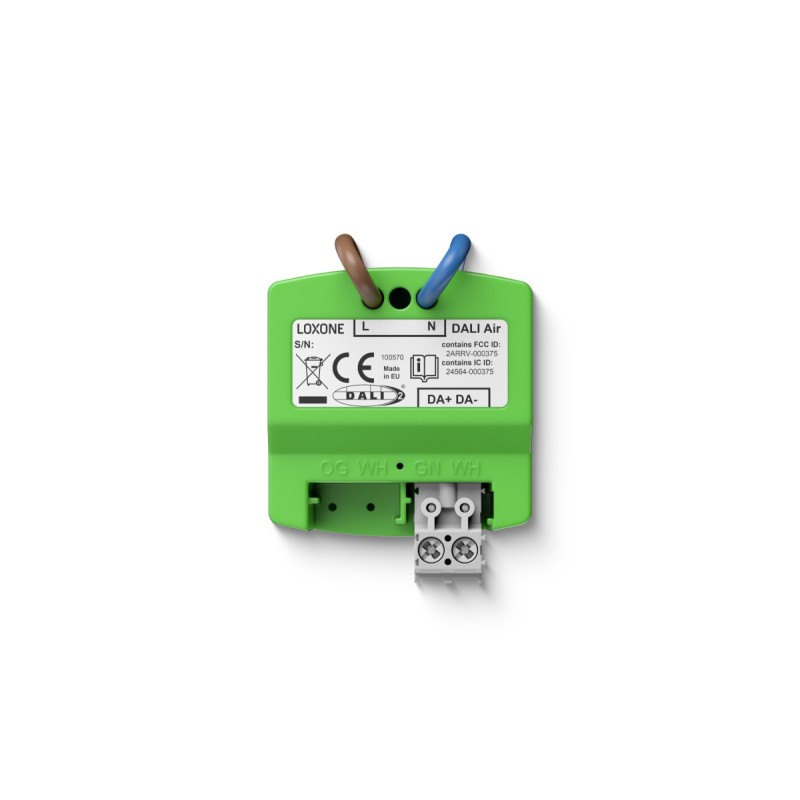

DALI Air

100570
Loxone
Kč3,500
Tax excluded
Kč735 Tax
Kč4,235 Tax included
Quantity
559 Items

Product Details
100570
559 Items

Data sheet

Product Characteristics: Colours
Green: RAL 6018
Ambient Conditions: Temperature
-40 ... 55°C / -40 ... 131°F
Ambient Conditions: Humidity
max. 95 % RH (non-condensing)
Connection Terminals: Terminal type
AC Supply: -; DALI Interface: PT 1.5-PVH
Connection Terminals: Wire cross-section
AC Supply: 1.5mm² / AWG16; DALI Interface: 0.5 … 2.5mm² / AWG20 … 14
Connection Terminals: Stripping length
AC Supply: -; DALI Interface: 7mm / 0.28"
Connection Terminals: Temperature resistance
AC Supply: -40 ... 105°C / -40 ... 221°F; DALI Interface: -40 … 70°C / -40 … 158°F
Product Characteristics: Finish
Matte
Weight & Dimensions: Net weight
37g
Weight & Dimensions: Product dimensions
47.4x39.4x20mm / 1.87x1.55x0.79” (LxWxH)
Interfaces: LOXONE Air
868MHz (SRD Band Europe), 4 channels, max. 15.1mW e.r.p.; 915MHz (ISM Band Region 2), 10 channels, max. 13.2mW; internal antenna
Certifications & Standards: Safety class
IP20
Connection Terminals: Length
AC Supply: 150mm / 5.9”; DALI Interface: -
Technical Data: Power consumption
typ. 0.6W; max. 1.5W (incl. 30mA bus load)
Technical Data: Power loss at max. load
1W (at 30mA bus load)
Technical Data: Supply voltage
110 ... 230VAC, 50/60Hz (nominal)

Snadno integrujte až 10 zařízení DALI

Datasheet

Technical Data

Supply voltage 110 ... 230VAC, 50/60Hz (nominal)
Power consumption typ. 0.6W
max. 1.5W (incl. 30mA bus load)
Power loss at max. load 1W (at 30mA bus load)

Interfaces

DALI DALI devices: max. 10 devices / 16 groups
DALI types: supported DALI device types: 0-8, supported DALI-2 instance types: 1-4
Bus length: max. 30m / 98ft
Bus topologies: Bus, Line, Star, Tree
Bus voltage: High: 16V, Low: OV (typ.)
Bus supply: guaranteed: 30mA, max. 250mA
LOXONE Air 868MHz (SRD Band Europe), 4 channels, max. 15.1mW e.r.p.
915MHz (ISM Band Region 2), 10 channels, max. 13.2mW
internal antenna

Ambient Conditions

Temperature -40 ... 55°C / -40 ... 131°F
Humidity max. 95 % RH (non-condensing)

Connection Terminals

Terminal type AC Supply: -
DALI Interface: PT 1.5-PVH
Wire cross-section AC Supply: 1.5mm² / AWG16
DALI Interface: 0.5 … 2.5mm² / AWG20 … 14
Length AC Supply: 150mm / 5.9”
DALI Interface: -
Stripping length AC Supply: -
DALI Interface: 7mm / 0.28"
Temperature resistance AC Supply: -40 ... 105°C / -40 ... 221°F
DALI Interface: -40 … 70°C / -40 … 158°F

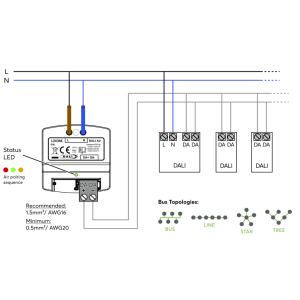

Connection Diagram

Connection Diagram Connection Diagram

Product Characteristics

Colours Green: RAL 6018
Finish Matte

Weight & Dimensions

Net weight 37g
Total weight 59g
Product dimensions 47.4x39.4x20mm / 1.87x1.55x0.79” (LxWxH)

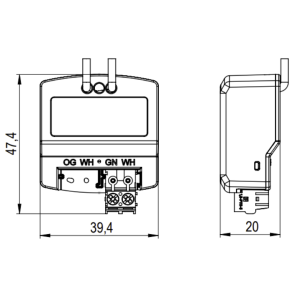

Product dimensions drawing Product dimensions drawing
Pack size 84x80x47mm / 3.31x3.15x1.85” (LxWxH)

Certifications & Standards

Safety class IP20
Položka Množství
Příbalový leták 1
