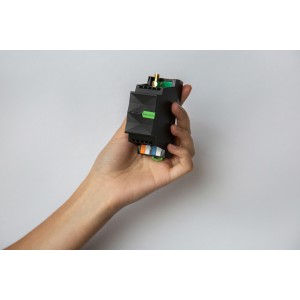

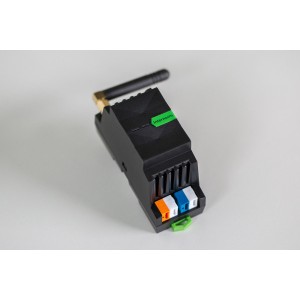

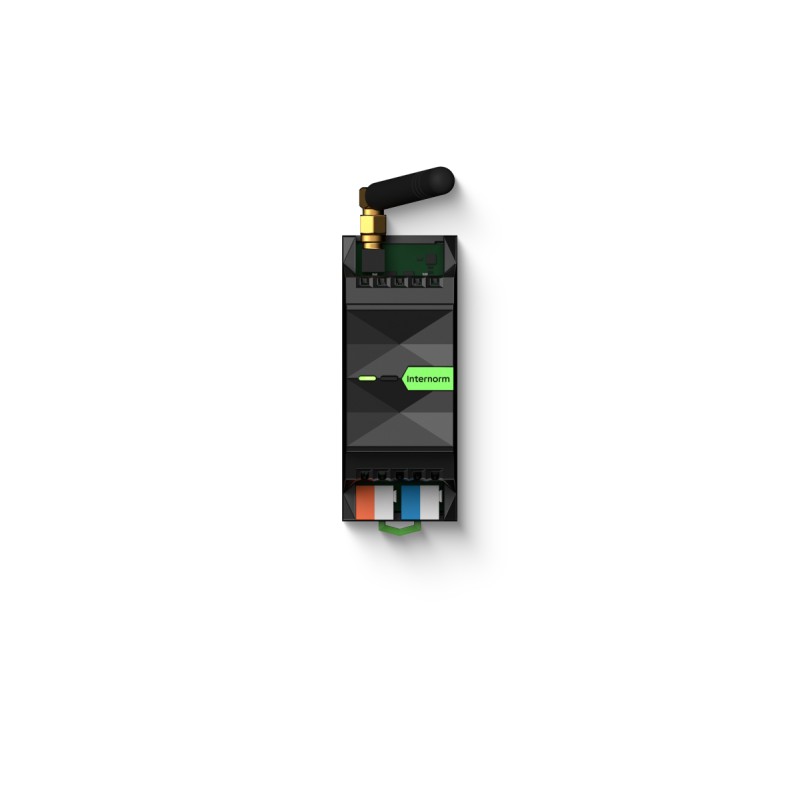

Internorm Extension

Name: Internorm Extension
Brand: Loxone
SKU: 100232
Price: 9928 CZK
Availability: InStock

Reference 100232

Brand Loxone

Kč8,205

Tax excluded

Kč1,723 Tax

Kč9,928 Tax included

Quantity

In stock: 41 Items

Product Details

Reference 100232

In stock 41 Items

Data sheet

Product Characteristics: Colours: Black: RAL 9005
Electrical Specifications: Supply voltage: 9 … 28 V DC
Electrical Specifications: Power consumption: typ. 0.288 W, max. 0.312 W
Electrical Specifications: Power loss at max. load: 0.312 W
Interfaces: LOXONE Link: Connection with Miniserver
Ambient Conditions: Temperature: -40 … 70 °C / -40 … 158 °F
Ambient Conditions: Humidity: max. 95 % RH (non-condensing)
Ambient Conditions: Ingress protection: IP20
Connection Terminals: Wire cross-section: 0.25 … 0.8 mm² / AWG 23 … 18
Connection Terminals: Stripping length: 5 mm / 0.2”
Connection Terminals: Temperature resistance: -40 … 105 °C / -40 … 221 °F
Product Characteristics: Mounting type: DIN rail according to EN 50022, 35 mm
Product Characteristics: Finish: Matte
Weight & Dimensions: Net weight: 65 g
Weight & Dimensions: Product dimensions: 88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units
Interfaces: Internorm: Protocol: I-tec 1.0 ; max. 40 devices ; 868 MHz (SRD Band Europa), EU Channel 0, max. 3.16 mW ; I-tec 2.0 protocol is currently not supported!

Datasheet

Electrical Specifications

Supply voltage	9 … 28 V DC
Power consumption	typ. 0.288 W, max. 0.312 W
Power loss at max. load	0.312 W

Interfaces

LOXONE Link	Connection with Miniserver
Internorm	Protocol: I-tec 1.0 max. 40 devices 868 MHz (SRD Band Europa), EU Channel 0, max. 3.16 mW I-tec 2.0 protocol is currently not supported!

Ambient Conditions

Temperature	-40 … 70 °C / -40 … 158 °F
Humidity	max. 95 % RH (non-condensing)
Ingress protection	IP20

Connection Terminals

Wire cross-section	0.25 … 0.8 mm² / AWG 23 … 18
Stripping length	5 mm / 0.2”
Temperature resistance	-40 … 105 °C / -40 … 221 °F

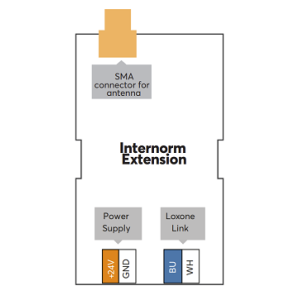

Connection Diagram

Connection Diagram

Product Characteristics

Mounting type	DIN rail according to EN 50022, 35 mm
Colours	Black: RAL 9005
Finish	Matte

Weight & Dimensions

Net weight	65 g
Total weight	85 g
Product dimensions	88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units

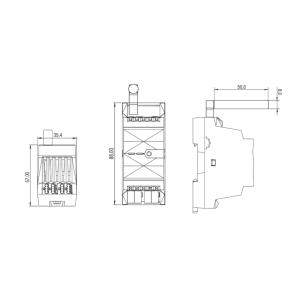

Product dimensions drawing
Pack size	121 x 38 x 62 mm / 4.76 x 1.50 x 2.44” (L x W x H)

Položka	Množství

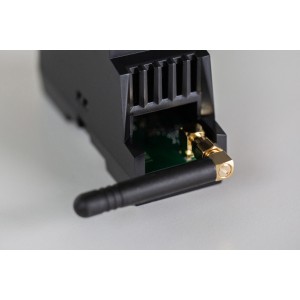

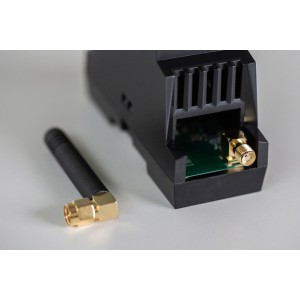

Anténa 868 MHz	1
Příbalový leták	1
