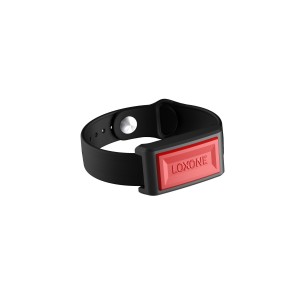

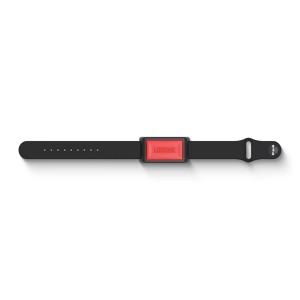

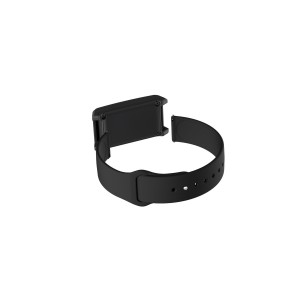

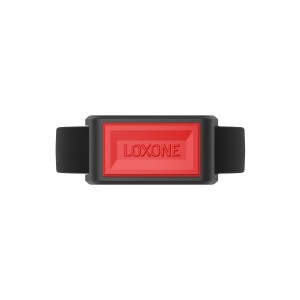

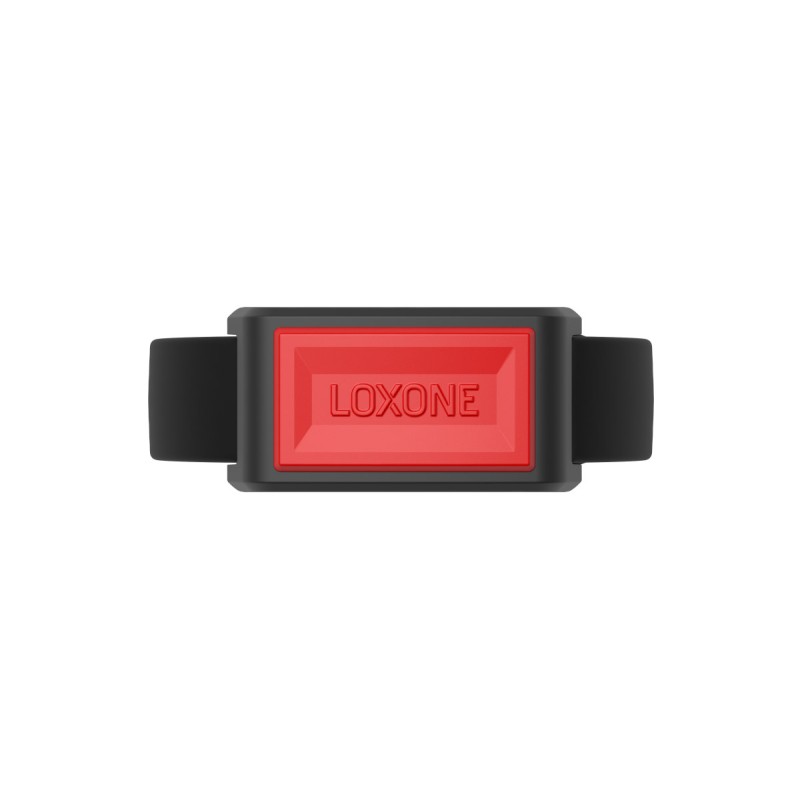

Wrist Button Air

100496
Loxone
Kč2,756
Tax excluded
Kč579 Tax
Kč3,335 Tax included
Quantity
368 Items

Product Details
100496
368 Items

Data sheet

Product Characteristics: Colours
LOXONE red translucent; Black: RAL9005
Electrical Specifications: Power consumption
typ. 3,3µW, max. 51mW
Ambient Conditions: Humidity
max. 95% r.H. (non condensing)
Product Characteristics: Finish
Matte
Weight & Dimensions: Net weight
119 g
Weight & Dimensions: Product dimensions
50x26x13.5mm / 1.97x1.02x0.53” (LxWxH)
Electrical Specifications: Power Supply
1x 3V CR2032
Electrical Specifications: Temperature
-20 ... 60°C / -4 ... 140°F
Certifications & Standards: Safety class
IP64
Electrical Specifications: Interfaces
LOXONE Air:; 868MHz (SRD Band Europe), 4 channels available; max. Power 15.1mW e.r.p.; 915MHz (ISM Band Region 2), 10 channels available; max. Power 13.2mW
Electrical Specifications: Power loss
max. 51mW
Electrical Specifications: Battery Lifetime
up to 2 years
Electrical Specifications: Touch points
1 Touch point, tactile switch
Electrical Specifications: Click feedback
visual

Wrist Button Air představuje důležitý bezpečnostní prvek, zejména pro starší osoby nebo osoby se zdravotním omezením. Díky plné integraci do automatizace budov LOXONE lze snadno realizovat řadu funkcí, jako jsou individuální alarmové scénáře, automatické otevření dveří a mnoho dalšího.

Datasheet

Electrical Specifications

Power Supply 1x 3V CR2032
Power consumption typ. 3,3µW, max. 51mW
Power loss max. 51mW
Battery Lifetime up to 2 years
Interfaces LOXONE Air:
868MHz (SRD Band Europe), 4 channels available
max. Power 15.1mW e.r.p.
915MHz (ISM Band Region 2), 10 channels available
max. Power 13.2mW
Temperature -20 ... 60°C / -4 ... 140°F
Touch points 1 Touch point, tactile switch
Click feedback visual

Ambient Conditions

Humidity max. 95% r.H. (non condensing)

Product Characteristics

Colours LOXONE red translucent
Black: RAL9005
Finish Matte

Connection Diagram

Connection Diagram Connection Diagram

Weight & Dimensions

Net weight 119 g
Total weight 128 g
Product dimensions 50x26x13.5mm / 1.97x1.02x0.53” (LxWxH)

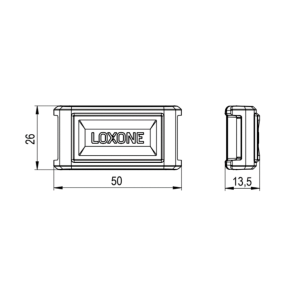

Product dimensions drawing Product dimensions drawing
Pack size 98x90x33mm / 3.86x3.54x1.30” (LxWxH)

Certifications & Standards

Safety class IP64
Položka Množství
Baterie CR2032 1
Šroubovák 1
Comments (0)
Grade
No customer reviews for the moment.
16 other products in the same category:
Out-of-Stock Touch Pure Flex IP44 Tree zlatá

Reference: 100885

Touch Pure Flex IP44 Tree zlatá

(0)
Poznámka: Jde o produkt vyráběný na míru. V momentě objednání se objednávka stává závaznou a nevratnou. Počítejte prosím s dvoutýdenní čekací dobou od objednání tohoto produktu.
Kč4,529 tax excl.
Kč951 Tax
Kč5,480 tax incl.
More Touch Pure Flex IP44 Tree zlatá
Out-of-Stock
In stock: 0
Button Air

Reference: 100465

Brand: Loxone

Button Air

(0)
Kč2,471 tax excl.
Kč519 Tax
Kč2,990 tax incl.
More Button Air
In stock
In stock: 598
You might also like

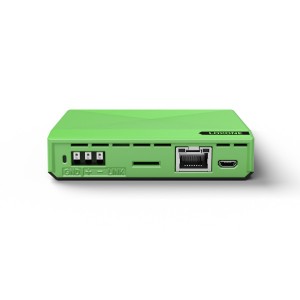

Miniserver Go
