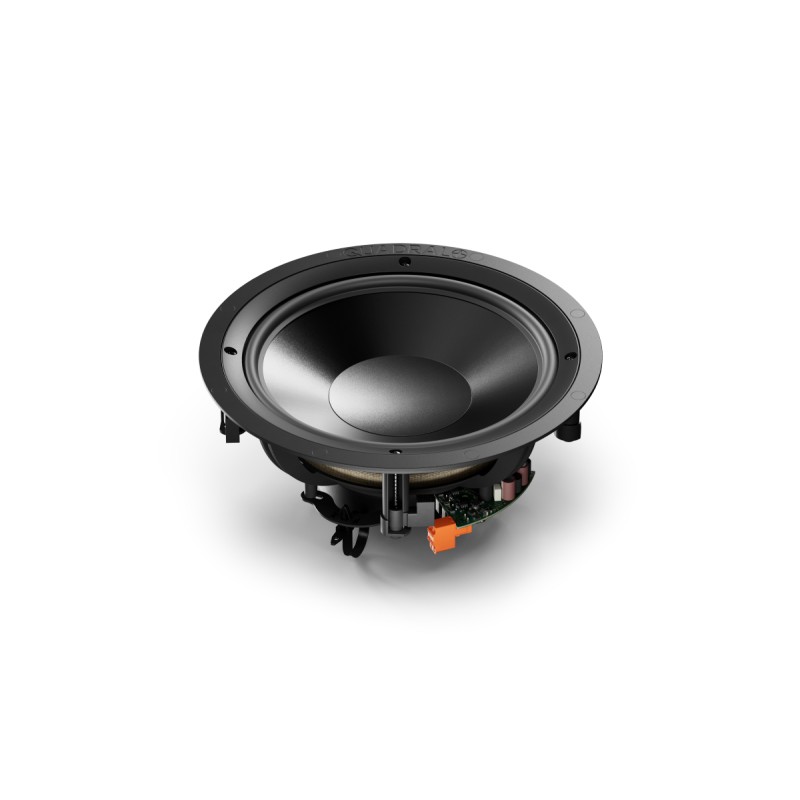

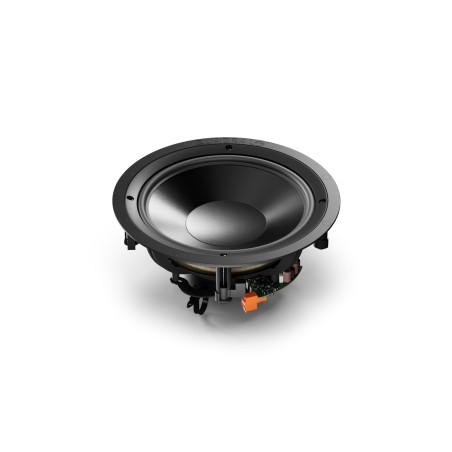

Install Sub 10 Client

Name: Install Sub 10 Client
Brand: Loxone
SKU: 610163
Price: 11168 CZK
Availability: InStock

Reference 610163

Brand Loxone

Kč9,230

Tax excluded

Kč1,938 Tax

Kč11,168 Tax included

Quantity

In stock: 161 Items

Product Details

Reference 610163

In stock 161 Items

Data sheet

Product Characteristics: Colours: Black: RAL 9004
Ambient Conditions: Temperature: -10…50 °C / 14…122 °F
Ambient Conditions: Humidity: max. 95 % RH (non-condensing)
Connection Terminals: Terminal type: 24VDC: TFKC 2.5; Tree Turbo, MCI: DG220B
Connection Terminals: Wire cross-section: 24VDC: 1 ... 2.5mm² / AWG17…12; Tree Turbo, MCI: 0.28 ... 0.8mm² / AWG23 ... 18
Connection Terminals: Stripping length: 24VDC: 10mm / 0.39“; Tree Turbo, MCI: 5 ... 6mm / 0.2 ... 0.24"
Connection Terminals: Temperature resistance: 24VDC: -40 ... 70°C / -40 ... 158°F; Tree Turbo, MCI: -40 ... 105°C / -40 ... 221°F
Product Characteristics: Finish: Matte
Weight & Dimensions: Net weight: 2.85 kg
Weight & Dimensions: Product dimensions: 289 x 111 mm / 11.38 x 4.37" (Ø x D)
Audio Specifications: Speaker type: active Subwoofer, dual voice coil
Audio Specifications: Frequency range: 30 ... 100Hz
Audio Specifications: Woofer Ø: 254 mm / 10“
Audio Specifications: Woofer membrane material: Altima (Aluminium-, Titanium-, Magnesium- composite)
Weight & Dimensions: Hole cut out size: 258 mm / 10.2" (Ø)
Weight & Dimensions: Installation depth: 108 mm / 4.25"
Weight & Dimensions: Max. panel thickness: 36 mm / 1.41"
Supply and Power: Power consumption: 0,05W (Standby); 35W (Peak)
Audio Specifications: Crossover frequency: 100Hz
Supply and Power: Supply voltage: 18VDC ... 26VDC
Interfaces: Master-Client Interface (MCI): up to 20 speaker clients per Master; up to 30m wire length between clients; up to 600m total length; Wiring: Twisted pair, Line topology
Audio Specifications: Class-D Amplifier: 35W nominal power; 70W peak power
Audio Specifications: SPL: 105dB @ 1m max.
Connection Terminals: Conductor type: 24VDC: Stranded / Solid; Tree Turbo, MCI: Solid
Connection Terminals: Connection type: 24VDC: Push-in; Tree Turbo, MCI: Push-in

	Install Speaker 7 Passiv/Master/Client	Install Speaker 10 Passiv/Master/Client	Install Sub 10 Master/Client
Surface Box for 10" Install Speaker Č. p.: 610159 Č. p.: 610172		✔	✔
Surface Box for 7" Install Speaker Č. p.: 610158 Č. p.: 610171	✔
Box for 10" Install Speaker Č. p.: 610164		✔	✔
Backbox for 10" Install Speaker Č. p.: 610160		✔
Backbox for 7" Install Speaker Č. p.: 200202	✔
Concrete Backbox for 7" Install Speaker Č. p.: 610161	✔
Concrete Backbox for 10" Install Speaker Č. p.: 610173		✔
Vlastní box na míru (např. do nábytku)	Nejméně 7 litrů Výplň z tlumicího materiálu.	Nejméně 7 litrů Výplň z tlumicího materiálu.	Nejméně 7 litrů Výplň z tlumicího materiálu.

Snadná instalace na libovolné místo

Install Sub 10 Master lze pomocí příslušného back boxu namontovat na strop, stěnu nebo do nábytku. Na rozdíl od reproduktorů Install Speakers vyžaduje Install Sub 10 vždy vhodný back box.

Doporučený počet speakerů

Doporučujeme: Při použití 2–4 Install 7 Speakerů, případně dvou Install 10 Speakerů, zvažte nasazení subwooferu. Můžete, ale nemusíte: Použití subwooferu je věcí vkusu a závisí na místnosti a individuálních potřebách. I bez subwooferu získáte skvělý zvukový zážitek, ale pokud si ceníte obzvláště komplexního zvuku s bohatými basy, měli byste subwoofer přidat do své soustavy.

Datasheet

Supply and Power

Supply voltage	18VDC ... 26VDC
Power consumption	0,05W (Standby) 35W (Peak)

Interfaces

Master-Client Interface (MCI)	up to 20 speaker clients per Master up to 30m wire length between clients up to 600m total length Wiring: Twisted pair, Line topology

Audio Specifications

Speaker type	active Subwoofer, dual voice coil
Class-D Amplifier	35W nominal power 70W peak power
Frequency range	30 ... 100Hz
Crossover frequency	100Hz
SPL	105dB @ 1m max.
Woofer Ø	254 mm / 10“
Woofer membrane material	Altima (Aluminium-, Titanium-, Magnesium- composite)

Ambient Conditions

Temperature	-10…50 °C / 14…122 °F
Humidity	max. 95 % RH (non-condensing)

Connection Terminals

Terminal type	24VDC: TFKC 2.5 Tree Turbo, MCI: DG220B
Wire cross-section	24VDC: 1 ... 2.5mm² / AWG17…12 Tree Turbo, MCI: 0.28 ... 0.8mm² / AWG23 ... 18
Conductor type	24VDC: Stranded / Solid Tree Turbo, MCI: Solid
Stripping length	24VDC: 10mm / 0.39“ Tree Turbo, MCI: 5 ... 6mm / 0.2 ... 0.24"
Temperature resistance	24VDC: -40 ... 70°C / -40 ... 158°F Tree Turbo, MCI: -40 ... 105°C / -40 ... 221°F
Connection type	24VDC: Push-in Tree Turbo, MCI: Push-in

Connection Diagram

Connection Diagram

Product Characteristics

Colours	Black: RAL 9004
Finish	Matte

Weight & Dimensions

Net weight	2.85 kg
Total weight	3.45 kg
Hole cut out size	258 mm / 10.2" (Ø)
Installation depth	108 mm / 4.25"
Max. panel thickness	36 mm / 1.41"
Product dimensions	289 x 111 mm / 11.38 x 4.37" (Ø x D)
Product dimensions drawing
Pack size	325 x 330 x 150 mm / 12.80 x 12.99 x 5.91" (L x W x H)

Certifications & Standards

Ingress protection

Položka	Množství
Šrouby pro montáž	1
Montážní šablona	1
Mřížkový kryt (černý)	1
Příbalový leták	1
