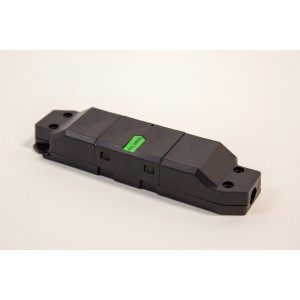

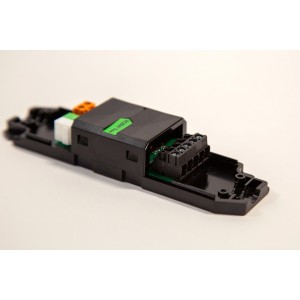

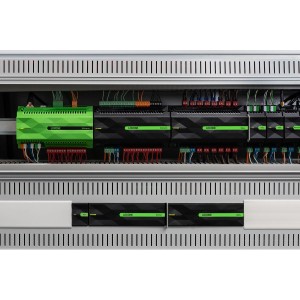

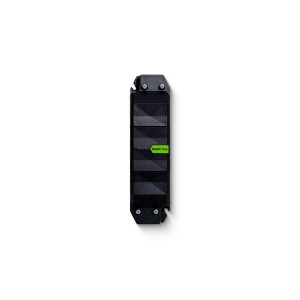

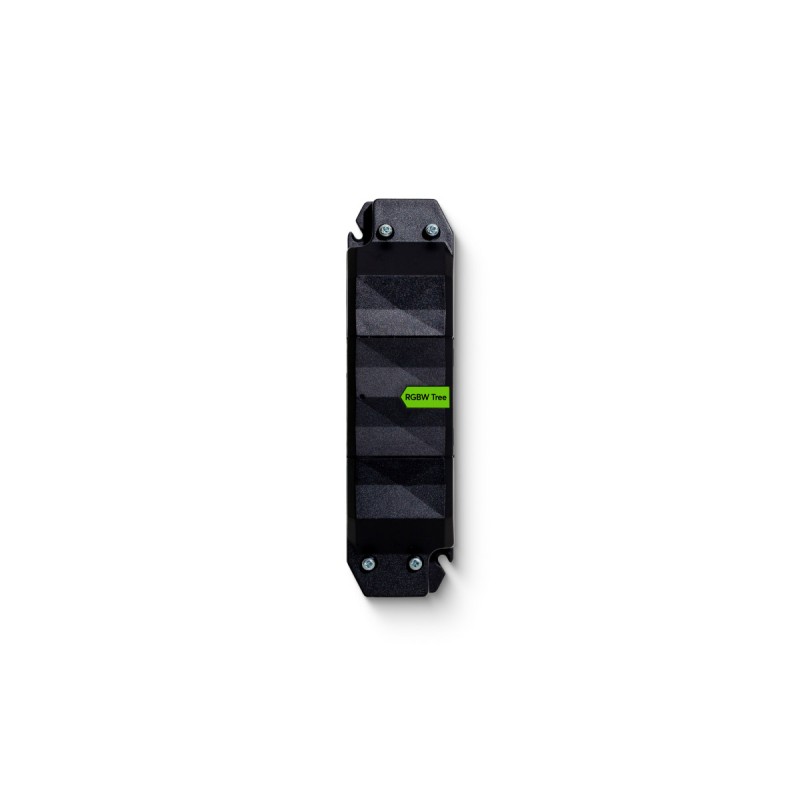

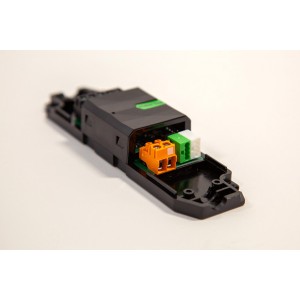

| Supply voltage | 12 … 28 VDC |
|---|---|
| Power consumption | typ. 0.066 W, max. 0.150 W |
| Outputs |
4 PWM Outputs (max. 2.1A per channel) 100W at 12V 200W at 24V max. wire length to LED: 30m / 98ft |

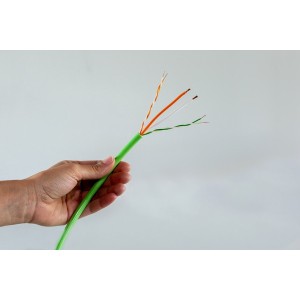

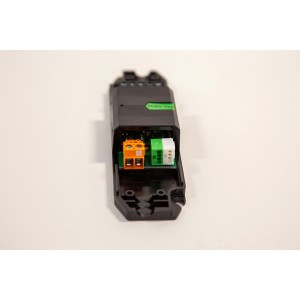

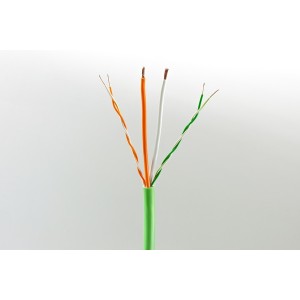

| Power loss at max. load | 3 W |
| PWM frequency | 123Hz |
| LOXONE Tree | connection with Miniserver / Tree Extension |
|---|
| Temperature | -40 … 55 °C / -40 … 131 °F |
|---|---|
| Humidity | max. 95 % RH (non-condensing) |
| Ingress protection | IP20 |
| Wire cross-section |
Power supply & Outputs: 0.75 ... 2.5mm² / AWG18 ... 13 LOXONE Tree: 0.25 … 0.8mm² / AWG23 … 18 |
|---|---|
| Stripping length |
Power supply & Outputs: 5mm / 0.2” LOXONE Tree: 5mm / 0.2" |
| Tightening torque |
Power supply & Outputs: 0.35 ... 0.4Nm / 0.26 ... 0.3 lbf ft |
| Temperature resistance |
Power supply & Outputs: min. 80°C / 176°F for IEC, min. 75°C / 167°F for UL LOXONE Tree: -40 … 105°C / -40 … 221°F |

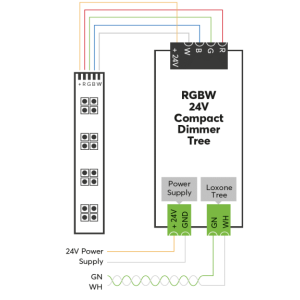

| Connection Diagram |
|

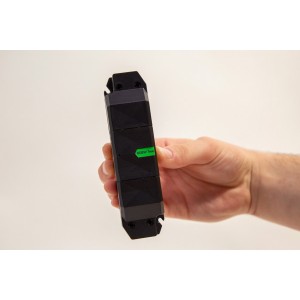

|---|
| Colours | Black: RAL 9005 |
|---|---|
| Finish | Matte |
| Net weight | 67g |
|---|---|
| Total weight | 87 g |
| Product dimensions | 136x36x22.6mm / 5.35x1.42x0.89” (LxWxH) |

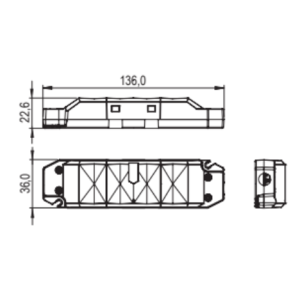

| Product dimensions drawing |
|
| Pack size | 152x45x25mm / 5.98x1.77x0.98” (LxWxH) |
| Safety class | IP20 |
|---|
