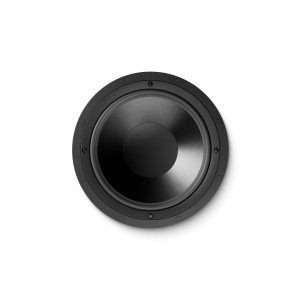

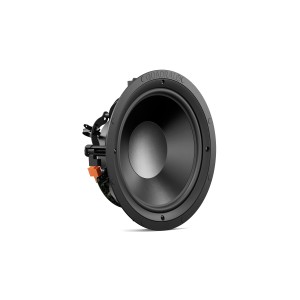

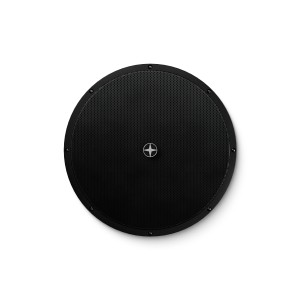

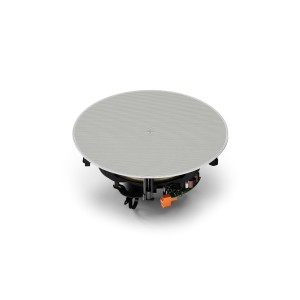

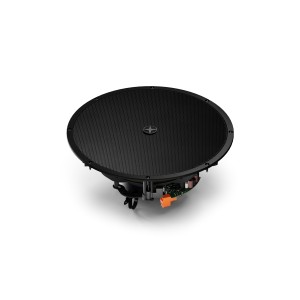

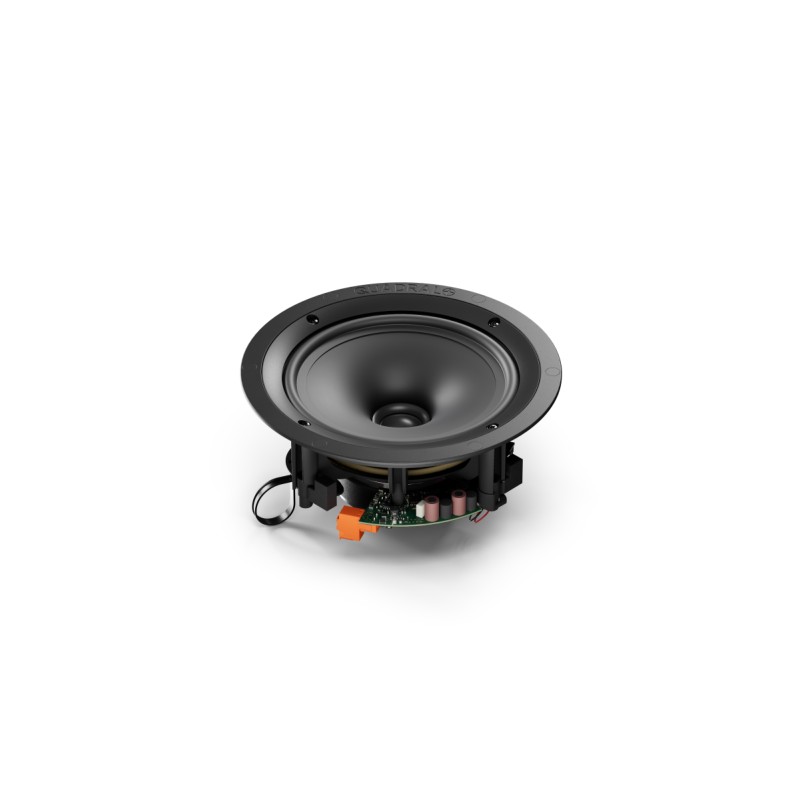

Install Speaker 7 Client

610151
Loxone
Kč6,230
Tax excluded
Kč1,308 Tax
Kč7,538 Tax included
Quantity
1083 Items

Product Details
610151
1083 Items

Data sheet

Product Characteristics: Colours
Speaker: Black, RAL9004 Front grille: White, RAL9003
Ambient Conditions: Temperature
-10…50 °C / 14…122 °F
Ambient Conditions: Humidity
max. 95 % RH (non-condensing)

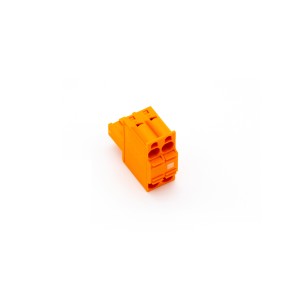

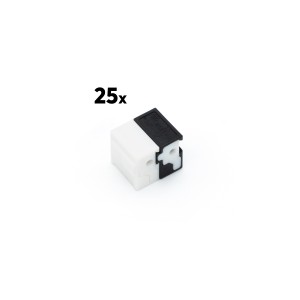

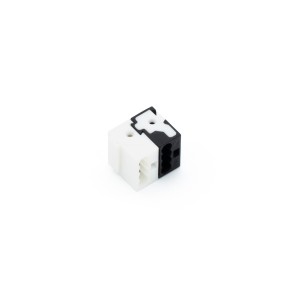

Connection Terminals: Terminal type
24VDC: TFKC 2.5; MCI: DG220B
Connection Terminals: Wire cross-section
24VDC: 1 … 2.5mm² / AWG17 … 12; MCI: 0.28 … 0.8mm² / AWG23 … 18
Connection Terminals: Stripping length
24VDC: 10mm / 0.39“; MCI: 5 … 6mm / 0.2 … 0.24"
Connection Terminals: Temperature resistance
24VDC: -40 … 70°C / -40 … 158°F; MCI: -40 … 105°C / -40 … 221°F
Product Characteristics: Finish
Matte
Weight & Dimensions: Net weight
1.93 kg
Weight & Dimensions: Product dimensions
232.2mm x 95.1mm / 9.14"x3.74" (ØxD)
Audio Specifications: Speaker type
2-Way active speaker
Audio Specifications: Frequency range
45…28.000Hz
Audio Specifications: Tweeter Ø
25.4mm / 1"
Audio Specifications: Woofer Ø
178mm / 7"
Audio Specifications: Woofer membrane material
Carbon filled Polypropylene
Weight & Dimensions: Hole cut out size
203mm / 8" (Ø)
Weight & Dimensions: Installation depth
93mm / 3.66"
Weight & Dimensions: Max. panel thickness
36 mm / 1.41"
Supply and Power: Power consumption
0.05W (Standby) 35W (Peak)
Audio Specifications: Crossover frequency
2100Hz
Audio Specifications: Tweeter dome material
Silk
Supply and Power: Supply voltage
18VDC ... 26VDC
Interfaces: Master-Client Interface (MCI)
up to 20 speaker clients per Master up to 30m wire length between clients up to 600m total length Wiring: Twisted pair, Line topology
Audio Specifications: Class-D Amplifier
35 W nominal power; 70 W peak power
Audio Specifications: SPL
105dB @ 1m max.
Connection Terminals: Conductor type
24VDC: Stranded / Solid; MCI: Solid
Connection Terminals: Connection type
24VDC: Push-in; MCI: Push-in

Snadná instalace na libovolné místo

Reproduktory Master/Client lze namontovat na strop, stěnu nebo do nábytku. Pro použití v otevřeném prostoru (např. perforovaný akustický strop) důrazně doporučujeme odpovídající back box.


Install Speaker 7

Passiv/Master/Client

Install Speaker 10

Passiv/Master/Client

Install Sub 10

Master/Client

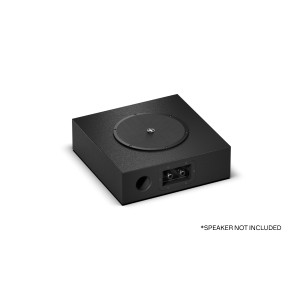

Surface Box for 10" Install Speaker

Č. p.: 610159

Č. p.: 610172


✔

✔

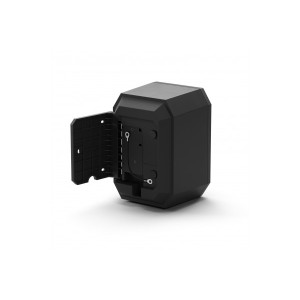

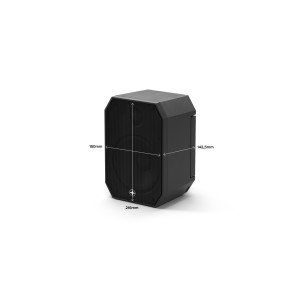

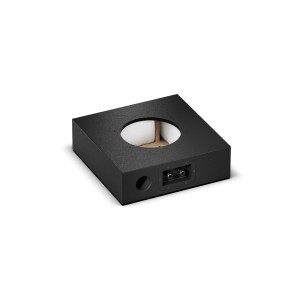

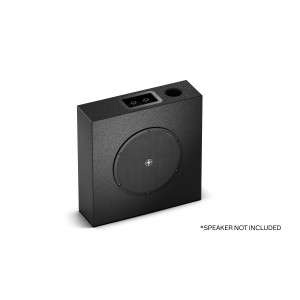

Surface Box for 7" Install Speaker

Č. p.: 610158

Č. p.: 610171

✔

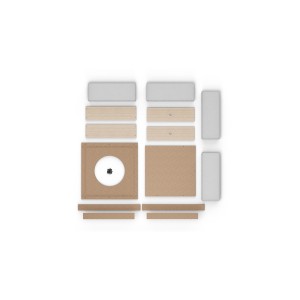

Box for 10" Install Speaker

Č. p.: 610164


✔

✔

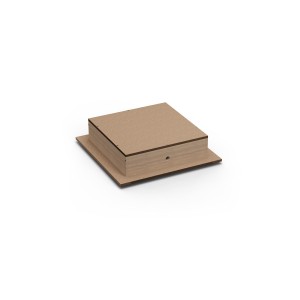

Backbox for 10" Install Speaker

Č. p.: 610160


✔

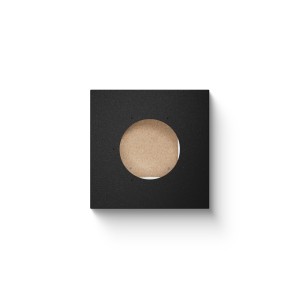

Backbox for 7" Install Speaker

Č. p.: 200202

✔

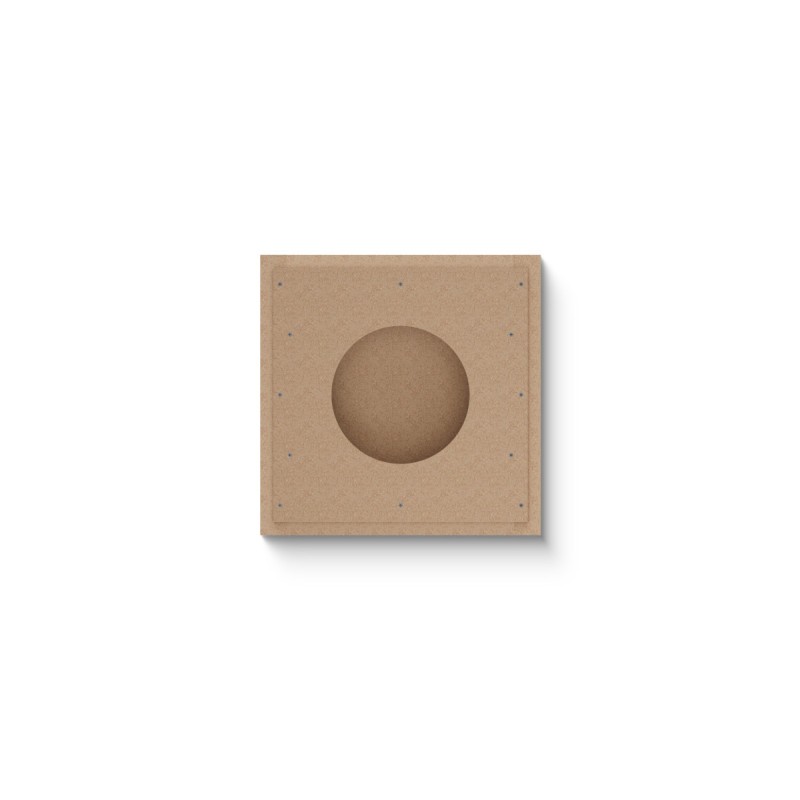

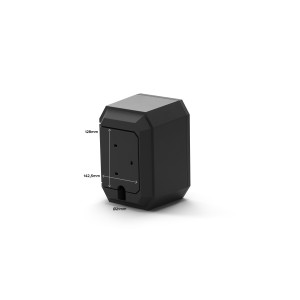

Concrete Backbox for 7" Install Speaker

Č. p.: 610161

✔



Concrete Backbox for 10" Install Speaker

Č. p.: 610173


✔


Vlastní box na míru

(např. do nábytku)

Nejméně 7 litrů

Výplň z tlumicího materiálu.

Nejméně 17 litrů

Výplň z tlumicího materiálu.

Nejméně 30 litrů

Výplň z tlumicího materiálu.

Doporučení pro instalaci: vzdálenost od stěn
Počet reproduktorů v místnosti
Datasheet

Supply and Power

Supply voltage 18VDC ... 26VDC
Power consumption 0.05W (Standby) 35W (Peak)

Interfaces

Master-Client Interface (MCI) up to 20 speaker clients per Master up to 30m wire length between clients up to 600m total length Wiring: Twisted pair, Line topology

Audio Specifications

Speaker type 2-Way active speaker
Class-D Amplifier 35 W nominal power
70 W peak power
Frequency range 45…28.000Hz
Crossover frequency 2100Hz
SPL 105dB @ 1m max.
Woofer Ø 178mm / 7"
Woofer membrane material Carbon filled Polypropylene
Tweeter Ø 25.4mm / 1"
Tweeter dome material Silk

Ambient Conditions

Temperature -10…50 °C / 14…122 °F
Humidity max. 95 % RH (non-condensing)

Connection Terminals

Terminal type 24VDC: TFKC 2.5
MCI: DG220B
Wire cross-section 24VDC: 1 … 2.5mm² / AWG17 … 12
MCI: 0.28 … 0.8mm² / AWG23 … 18
Conductor type 24VDC: Stranded / Solid
MCI: Solid
Stripping length 24VDC: 10mm / 0.39“
MCI: 5 … 6mm / 0.2 … 0.24"
Temperature resistance 24VDC: -40 … 70°C / -40 … 158°F
MCI: -40 … 105°C / -40 … 221°F
Connection type 24VDC: Push-in
MCI: Push-in

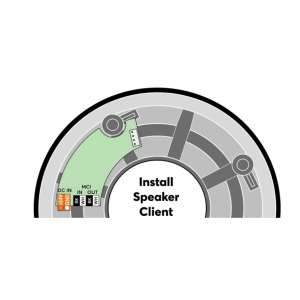

Connection Diagram

Connection Diagram Connection Diagram

Product Characteristics

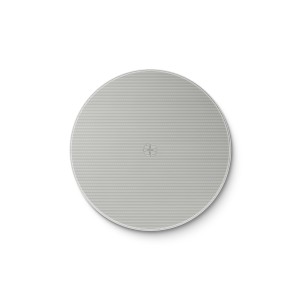

Colours Speaker: Black, RAL9004 Front grille: White, RAL9003
Finish Matte

Weight & Dimensions

Net weight 1.93 kg
Total weight 2.37 kg
Hole cut out size 203mm / 8" (Ø)
Installation depth 93mm / 3.66"
Max. panel thickness 36 mm / 1.41"
Product dimensions 232.2mm x 95.1mm / 9.14"x3.74" (ØxD)

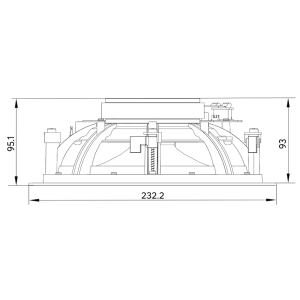

Product dimensions drawing Product dimensions drawing
Pack size 265x270x140mm / 10.43x10.63x5.51" (LxWxH)

Certifications & Standards

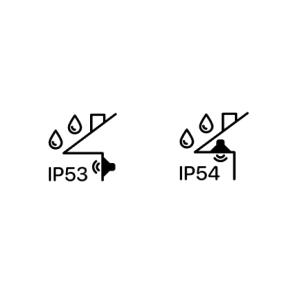

Ingress protection Ingress protection
Položka Množství

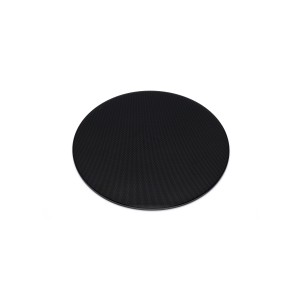

Mřížkový kryt (bílý) 1
Montážní šablona 1
Příbalový leták 1
