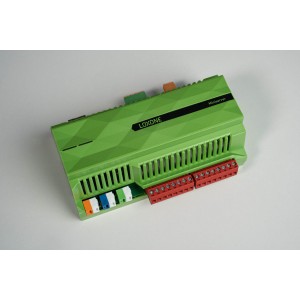

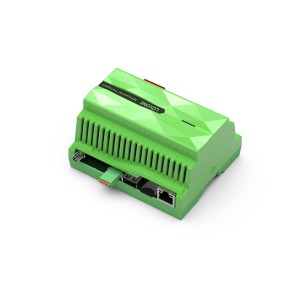

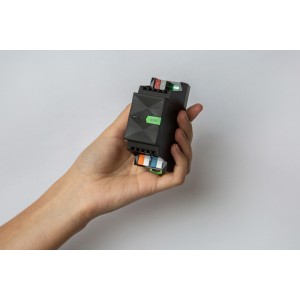

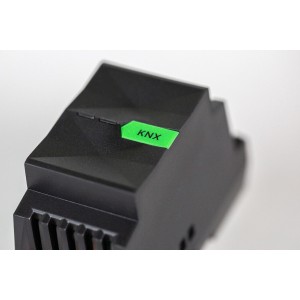

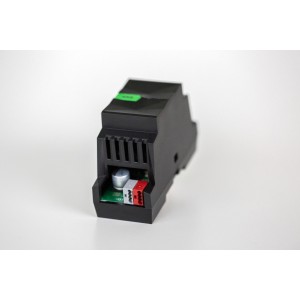

KNX Extension

Name: KNX Extension
Brand: Loxone
SKU: 100322
Price: 17365 CZK
Availability: InStock

Reference 100322

Brand Loxone

Kč14,351

Tax excluded

Kč3,014 Tax

Kč17,365 Tax included

Quantity

In stock: 637 Items

Product Details

Reference 100322

In stock 637 Items

Data sheet

Product Characteristics: Colours: Black: RAL 9005
Electrical Specifications: Supply voltage: 10 … 28 VDC
Electrical Specifications: Power consumption: typ. 0.08 W
Electrical Specifications: Power loss at max. load: 0.15 W
Interfaces: LOXONE Link: Connection with Miniserver
Ambient Conditions: Temperature: -25 … 55 °C / -13 … 131 °F
Ambient Conditions: Humidity: max. 95 % RH (non-condensing)
Ambient Conditions: Ingress protection: IP20
Connection Terminals: Wire cross-section: 0.25 … 0.8 mm² / AWG 23 … 18
Connection Terminals: Stripping length: 5 mm / 0.2”
Connection Terminals: Temperature resistance: -40 … 105 °C / -40 … 221 °F
Product Characteristics: Mounting type: DIN rail according to EN 50022, 35 mm
Product Characteristics: Finish: Matte
Weight & Dimensions: Net weight: 55 g
Weight & Dimensions: Product dimensions: 88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units
Interfaces: KNX: max. 500 KNX group addresses; Cable distance to KNX power supply: max. 350 m / 1.148 ft; Cable distance to first KNX device: max. 700 m / 2.297 ft; Bus length: max. 1000 m / 3.281 ft

Datasheet

Electrical Specifications

Supply voltage	10 … 28 VDC
Power consumption	typ. 0.08 W
Power loss at max. load	0.15 W

Interfaces

LOXONE Link	Connection with Miniserver
KNX	max. 500 KNX group addresses Cable distance to KNX power supply: max. 350 m / 1.148 ft Cable distance to first KNX device: max. 700 m / 2.297 ft Bus length: max. 1000 m / 3.281 ft

Ambient Conditions

Temperature	-25 … 55 °C / -13 … 131 °F
Humidity	max. 95 % RH (non-condensing)
Ingress protection	IP20

Connection Terminals

Wire cross-section	0.25 … 0.8 mm² / AWG 23 … 18
Stripping length	5 mm / 0.2”
Temperature resistance	-40 … 105 °C / -40 … 221 °F

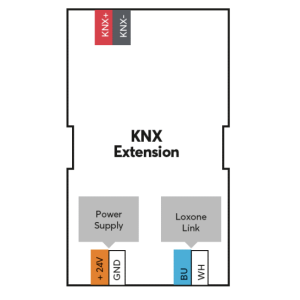

Connection Diagram

Connection Diagram

Product Characteristics

Mounting type	DIN rail according to EN 50022, 35 mm
Colours	Black: RAL 9005
Finish	Matte

Weight & Dimensions

Net weight	55 g
Total weight	74 g
Product dimensions	88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units

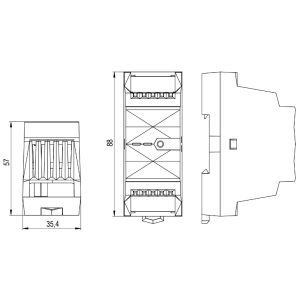

Product dimensions drawing
Pack size	121 x 38 x 62 mm / 4.76 x 1.50 x 2.44” (L x W x H)

Položka	Množství
Příbalový leták	1
