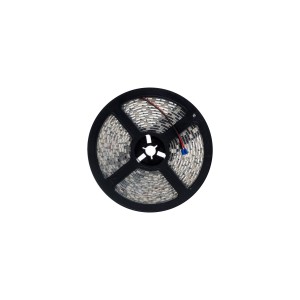

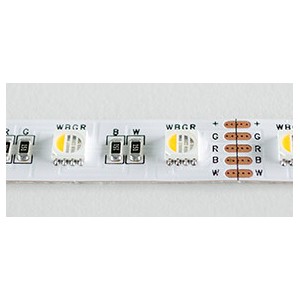

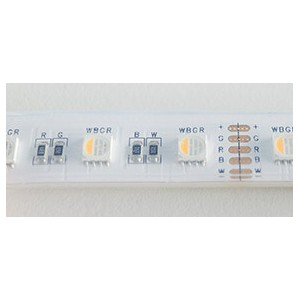

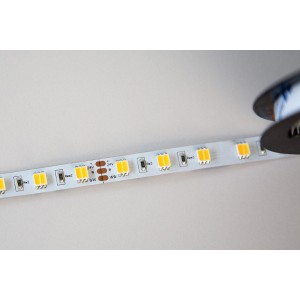

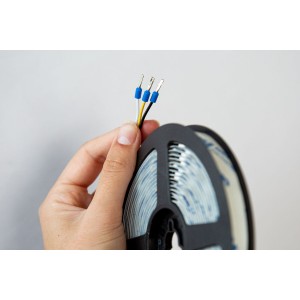

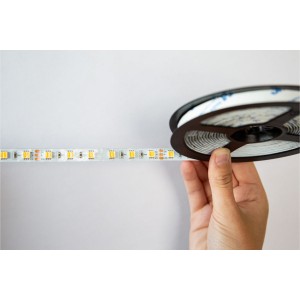

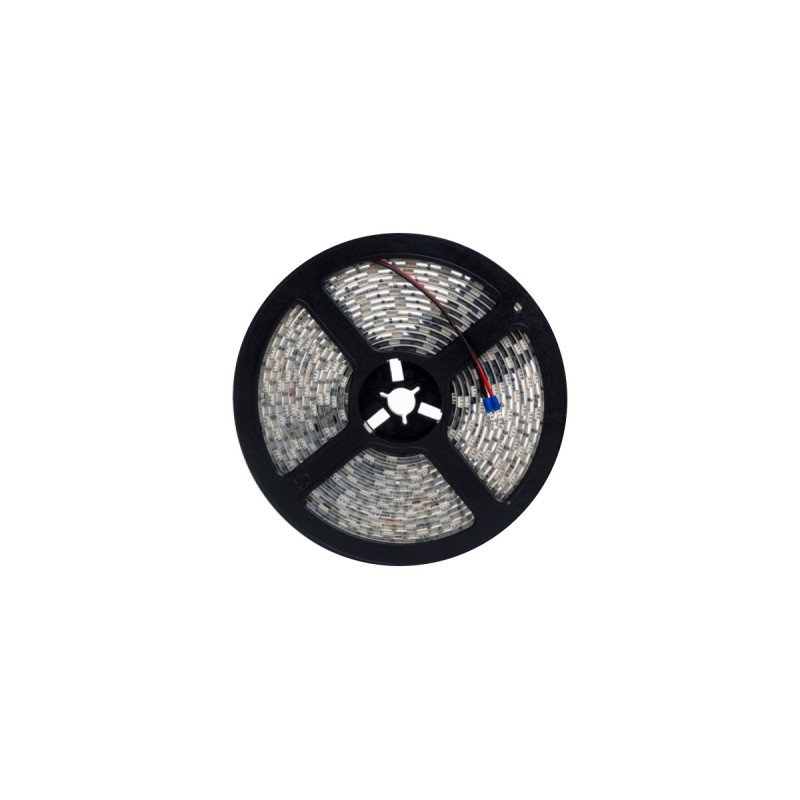

5m LED pásky (laditelná bílá) - IP65 (proti tryskající vodě)

Name: 5m LED pásky (laditelná bílá) - IP65 (proti tryskající vodě)
Brand: Loxone
SKU: 200409
Price: 3461 CZK
Availability: InStock

Reference 200409

Brand Loxone

Kč2,860

Tax excluded

Kč601 Tax

Kč3,461 Tax included

Quantity

In stock: 54 Items

Product Details

Reference 200409

In stock 54 Items

Data sheet

Ambient Conditions: Temperature: -25 … 50 °C / -13 … 122 °F
Weight & Dimensions: Net weight: 220g
Weight & Dimensions: Product dimensions: 5000x10x3mm - 196.85x0.39x0.12"
Connections: Wire cross-section: Connection Cables: 0.5mm² / AWG22; Connector: 0.5 … 1mm² / AWG22 … AWG18
Connections: Temperature resistance: Connection Cables: max. 70°C / 158°F; Connector: max. 70°C / 158°F
Technical Data: Power Supply: 24VDC constant voltage, PWM dimmable
Light Properties: Colour temperature: WW: 2900K (+/- 200K); CW: 6000K (+/- 200K)
Light Properties: Luminous flux: 720lm/m
Light Properties: Colour rendering index (CRI): 80+
Light Properties: Beam angle: 120°
Connections: Length: Connection Cables: 130mm / 5.12"; Connector: -
Connections: Connector type: Type of Connector: -; Connector: Hippo-M
Technical Data: Power consumption: Total: 60W, 12W/m; WW: 30W, 6W/m; CW: 30W, 6W/m
Technical Data: Energy efficiency (EU) 2017/1369: G
Technical Data: Humidity: 10 … 95 % RH (non-condensing)
Technical Data: Cuttable: Every 10cm / 3.94"
Technical Data: Max. LED strip length: 10m / 393.7"
Light Properties: Luminous Efficiency: 60lm/W
Connections: Wire colours: Black: Plus (+); Yellow: WW (-); White: CW (-)
Certifications & Standards: specification_name.safety_rating: IP65

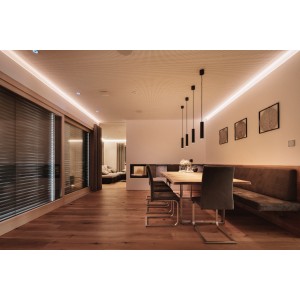

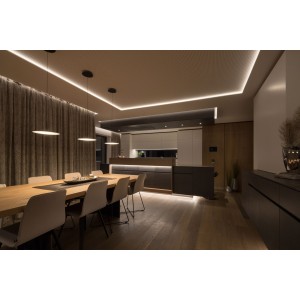

Jedinečné barevné akcenty s LED pásky

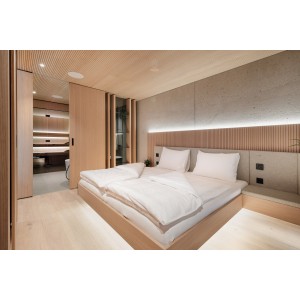

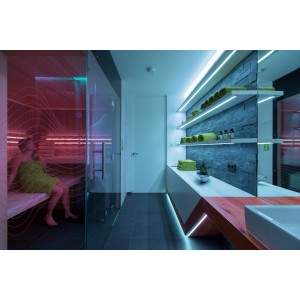

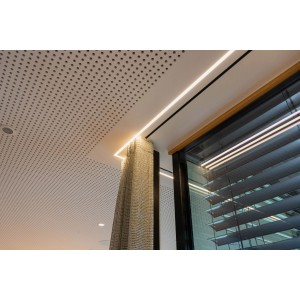

Ať už uvnitř, nebo venku – nepřímé osvětlení vždy upoutá pozornost. LED pásky můžete umístit například do polic, vitrín, šatních skříní, za TV skříňky, k rámu postele, na schody nebo k podlahovým či stropním lištám. Skvěle vyniknou i ve venkovním prostoru.

Datasheet

Technical Data

Power Supply	24VDC constant voltage, PWM dimmable
Power consumption	Total: 60W, 12W/m WW: 30W, 6W/m CW: 30W, 6W/m
Energy efficiency (EU) 2017/1369	G
Humidity	10 … 95 % RH (non-condensing)
Cuttable	Every 10cm / 3.94"
Max. LED strip length	10m / 393.7"

Ambient Conditions

Temperature	-25 … 50 °C / -13 … 122 °F

Light Properties

Colour temperature	WW: 2900K (+/- 200K) CW: 6000K (+/- 200K)
Luminous flux	720lm/m
Colour rendering index (CRI)	80+
Luminous Efficiency	60lm/W
Beam angle	120°

Connections

Wire cross-section	Connection Cables: 0.5mm² / AWG22 Connector: 0.5 … 1mm² / AWG22 … AWG18
Temperature resistance	Connection Cables: max. 70°C / 158°F Connector: max. 70°C / 158°F
Length	Connection Cables: 130mm / 5.12" Connector: -

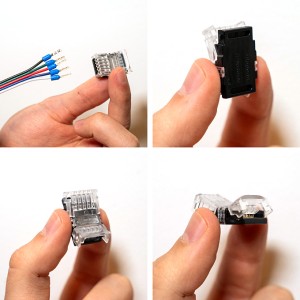

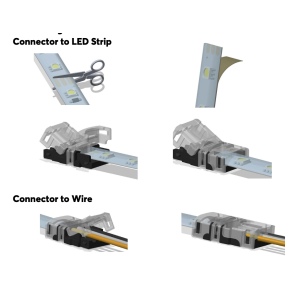

Connector type	Type of Connector: - Connector: Hippo-M
Wire colours	Black: Plus (+) Yellow: WW (-) White: CW (-)

Connection Diagram

Connection Diagram

Weight & Dimensions

Net weight	220g
Total weight	261g
Product dimensions	5000x10x3mm - 196.85x0.39x0.12"

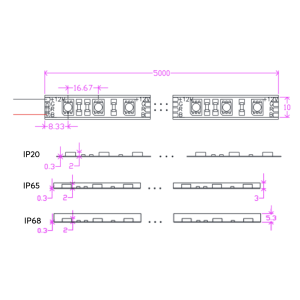

Product dimensions drawing
Pack size	160x160x25.5mm / 6.30x6.30x1" (LxWxH)
