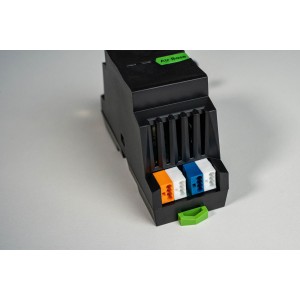

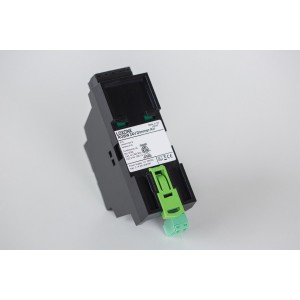

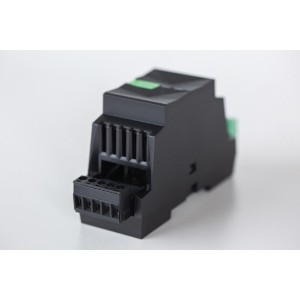

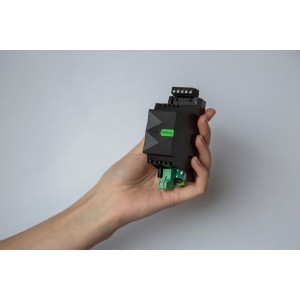

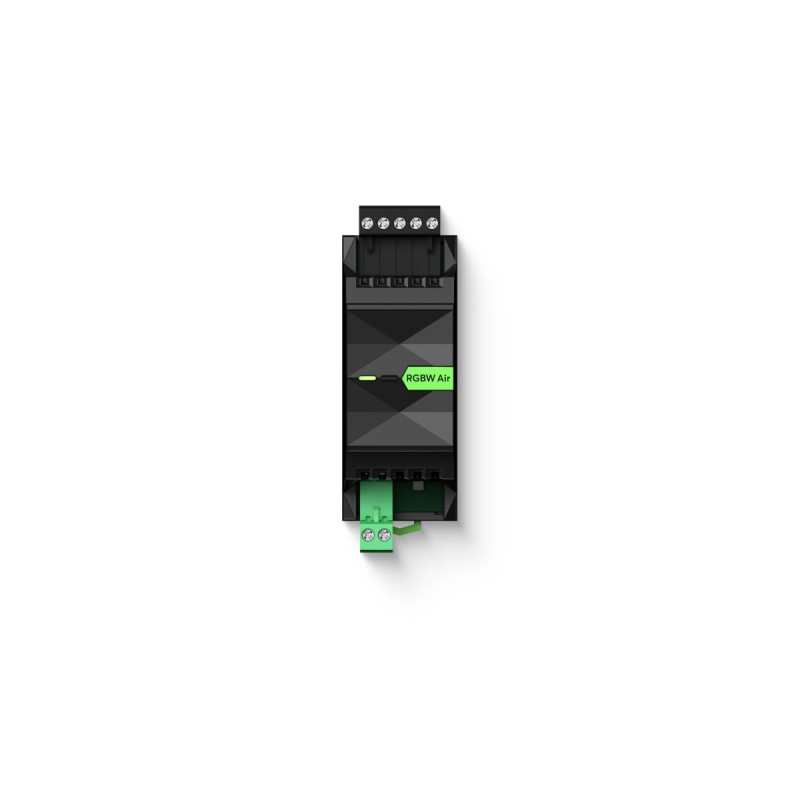

RGBW 24V Dimmer Air

Data sheet

Product Characteristics: Colours

Black: RAL 9005

Electrical Specifications: Supply voltage

12 … 28 VDC

Electrical Specifications: Power consumption

typ. 0.066 W, max. 0.163 W

Electrical Specifications: Power loss at max. load

3 W

Ambient Conditions: Temperature

-40 … 55 °C / -40 … 131 °F

Ambient Conditions: Humidity

max. 95 % RH (non-condensing)

Ambient Conditions: Ingress protection

IP20

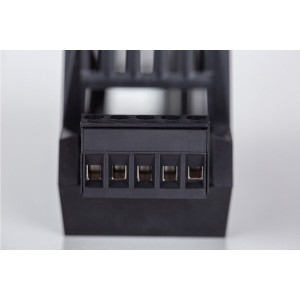

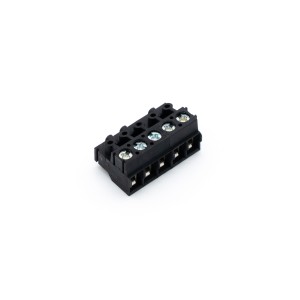

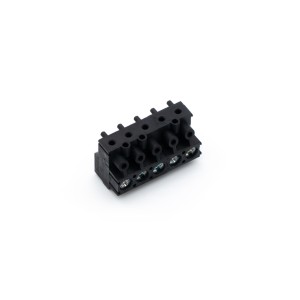

Connection Terminals: Wire cross-section

0.75 ... 2.5mm² / AWG18 ... 13

Connection Terminals: Stripping length

6 … 7.5 mm / 0.24 … 0.30”

Connection Terminals: Temperature resistance

min. 80°C / 176°F for IEC, min. 75°C / 167°F for UL

Product Characteristics: Mounting type

DIN rail according to EN 50022, 35 mm

Product Characteristics: Finish

Matte

Weight & Dimensions: Net weight

67g

Weight & Dimensions: Product dimensions

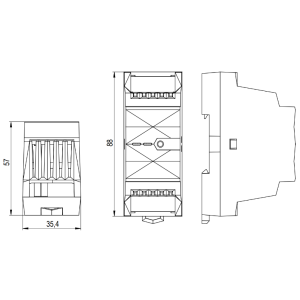

88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units

Connection Terminals: Tightening torque

0.5 … 0.6 Nm / 0.37 … 0.44 lbf·ft

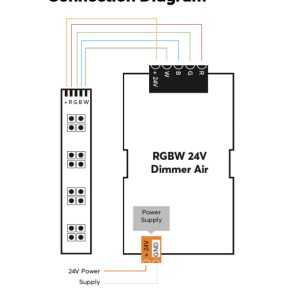

Electrical Specifications: Outputs

4 PWM outputs (max. 2.1A per channel) 100W at 12V 200W at 24V max. wire length to LED: 30m / 98ft

Electrical Specifications: PWM frequency

123Hz

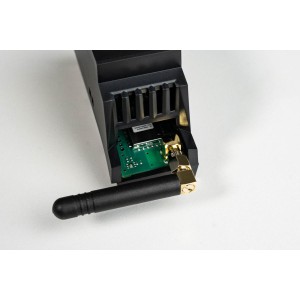

Electrical Specifications: Interfaces

LOXONE Air: 868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW
