| Supply voltage | 12 … 28 VDC |
|---|---|
| Power consumption | typ. 0.066 W, max. 0.163 W |
| Outputs |
4 PWM outputs (max. 2.1A per channel) 100W at 12V 200W at 24V max. wire length to LED: 30m / 98ft |
| Power loss at max. load | 3 W |
| PWM frequency | 123Hz |
| Interfaces |
LOXONE Air: 868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW |
| Temperature | -40 … 55 °C / -40 … 131 °F |
|---|---|
| Humidity | max. 95 % RH (non-condensing) |
| Ingress protection | IP20 |
| Wire cross-section | 0.2 ... 2.5mm² / AWG18 ... 13 |
|---|---|
| Torque of terminal blocks | 0.35 ... 0.4Nm / 0.26 ... 0.3 lbf ft |
| Temperature resistance |
min. 80°C / 176°F for IEC, min. 75°C / 167°F for UL |
| Stripping length | 5 mm / 0.2” |
|---|

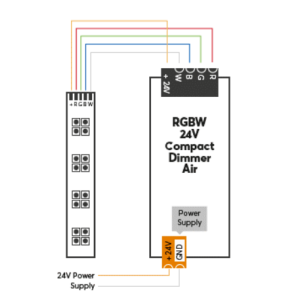

| Connection Diagram |
|
|---|
| Colours | Black: RAL 9005 |
|---|---|
| Finish | Matte |
| Net weight | 67g |
|---|---|
| Total weight | 83 g |
| Product dimensions | 136x36x22.6mm / 5.35x1.42x0.89” (LxWxH) |

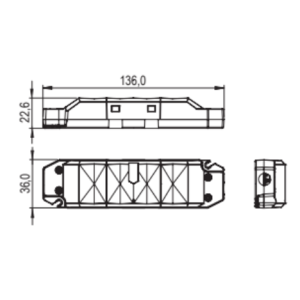

| Product dimensions drawing |
|
| Pack size | 152x45x25mm / 5.98x1.77x0.98” (LxWxH) |
| Safety class | IP20 |
|---|

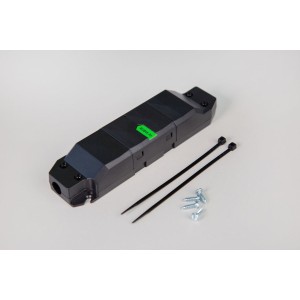

| Položka | Množství |
|---|---|
| Příbalový leták | 1 |
| Šrouby | 1 |
| Stahovací pásky | 1 |
