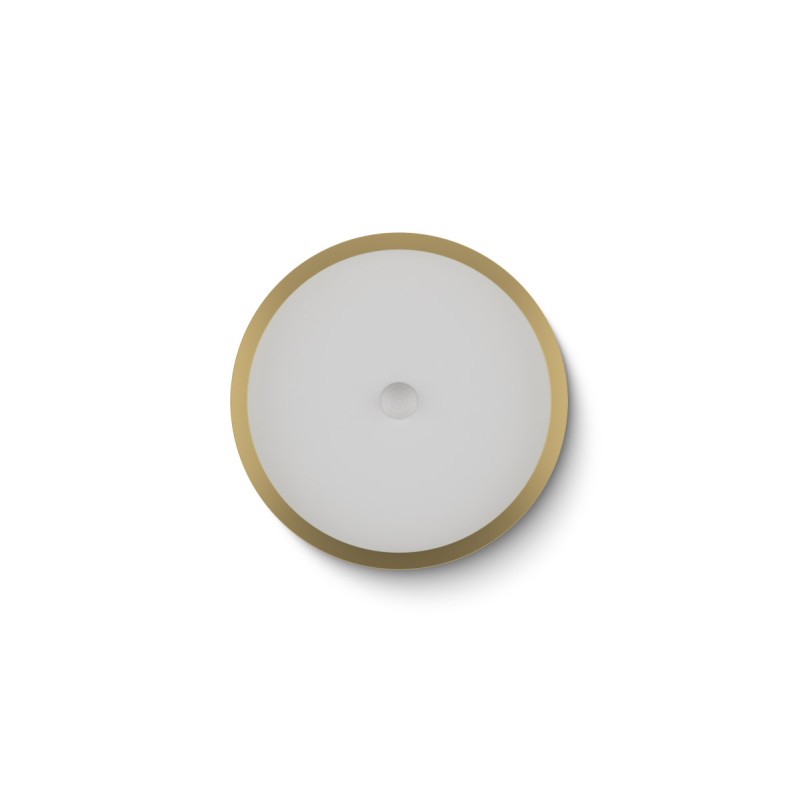

Stropní LED světlo RGBW Air zlatá

Data sheet

Product Characteristics: Colours

White: RAL 9003 - Part No. 100286; Anthracite: RAL 7021 - Part No. 100287; Gold: approx. RAL1036 - Part No. 100500

Electrical Specifications: Power consumption

Standby:

Ambient Conditions: Temperature

-40 ... 55°C / -40 ... 131°F

Ambient Conditions: Humidity

max. 95 % RH (non-condensing)

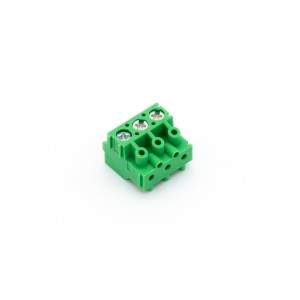

Connection Terminals: Wire cross-section

0.75 ... 2.5mm² / AWG18 ... 13

Connection Terminals: Stripping length

5 mm / 0.2”

Product Characteristics: Finish

Matte

Weight & Dimensions: Net weight

2600g

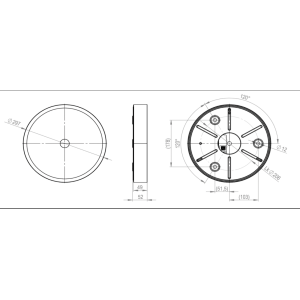

Weight & Dimensions: Product dimensions

D: 297mm / 11.69”; H: 52mm / 2.05”

Electrical Specifications: Power Supply

220 ... 240VAC, 50Hz

Certifications & Standards: Safety class

IP20

Electrical Specifications: PWM frequency

200Hz

Electrical Specifications: Interfaces

LOXONE Air:; 868MHz (SRD Band Europe), 4 channels available; 915MHz (ISM Band Region 2), 10 channels available; max. power 3.16mW

Connections: Temperature resistance

min. 80°C / 176°F for IEC,; min. 75°C / 167°F for UL

Product Characteristics: Material

Alu and Plastic

Connections: Tightening torque

0.35 ... 0.4Nm / 0.26 ... 0.3 lbf ft

Electrical Specifications: Dimming range

0 ... 100%

Electrical Specifications: Energy efficiency (EU) 2017/1369

G

Light Properties: Colour temperature

typ. 3000k (warm white)

Light Properties: Luminous flux

typ. 1350lm (warm white)

Light Properties: Colour rendering index (CRI)

min. 90, (R9 min. 50)

Light Properties: Beam angle

120°

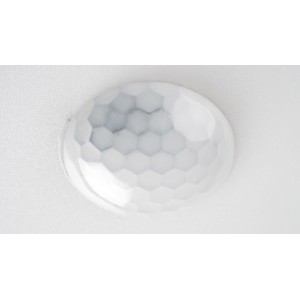

Electrical Specifications: Motion detection

passive infrared sensor

Electrical Specifications: Motion detection range

8m / 26.25ft; (at height of 3m / 9.84ft)

Electrical Specifications: Measuring range of brightness sensor

0.045 ... 188000lx

Electrical Specifications: Detection angle vertical

110°

Electrical Specifications: Detection angle horizontal

360°
