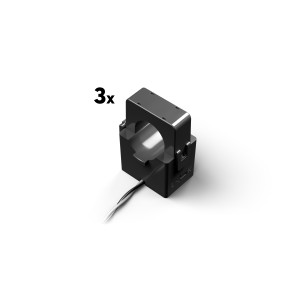

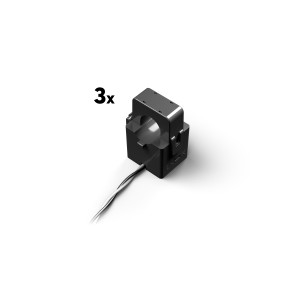

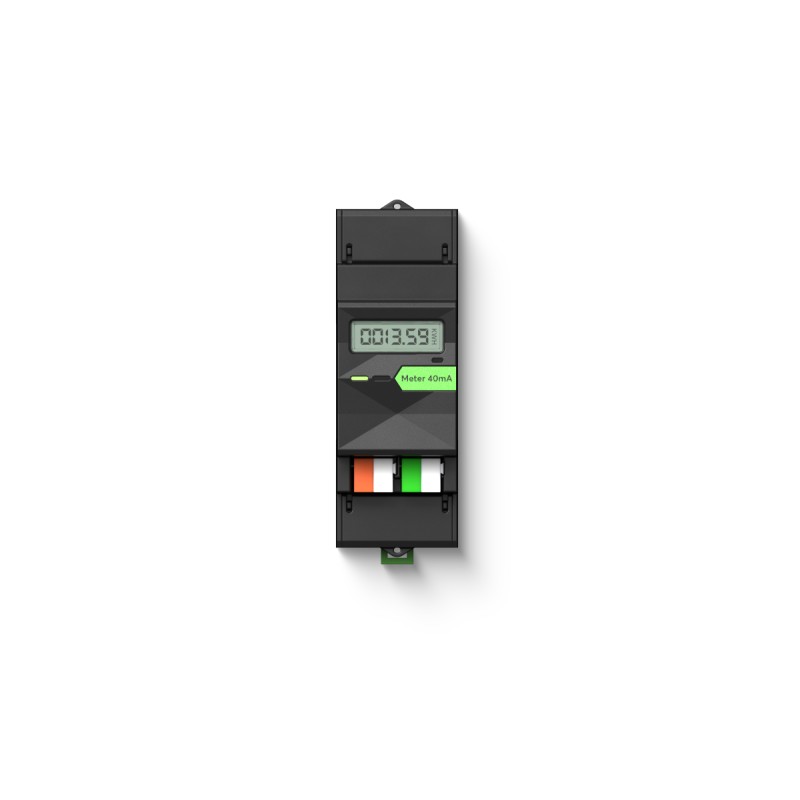

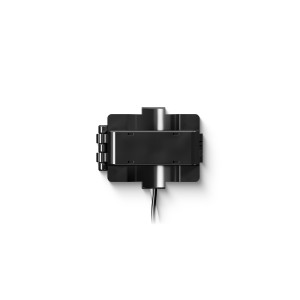

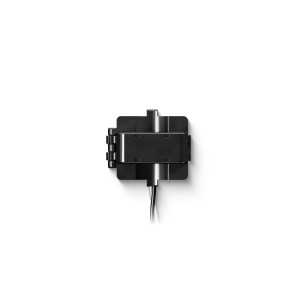

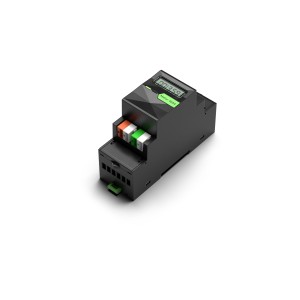

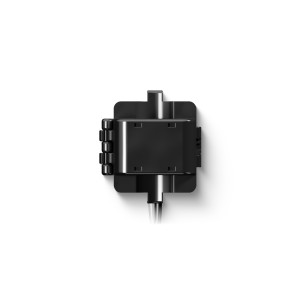

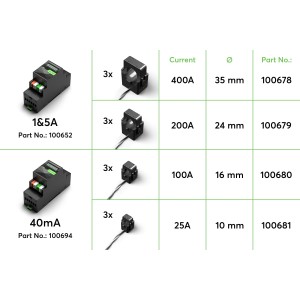

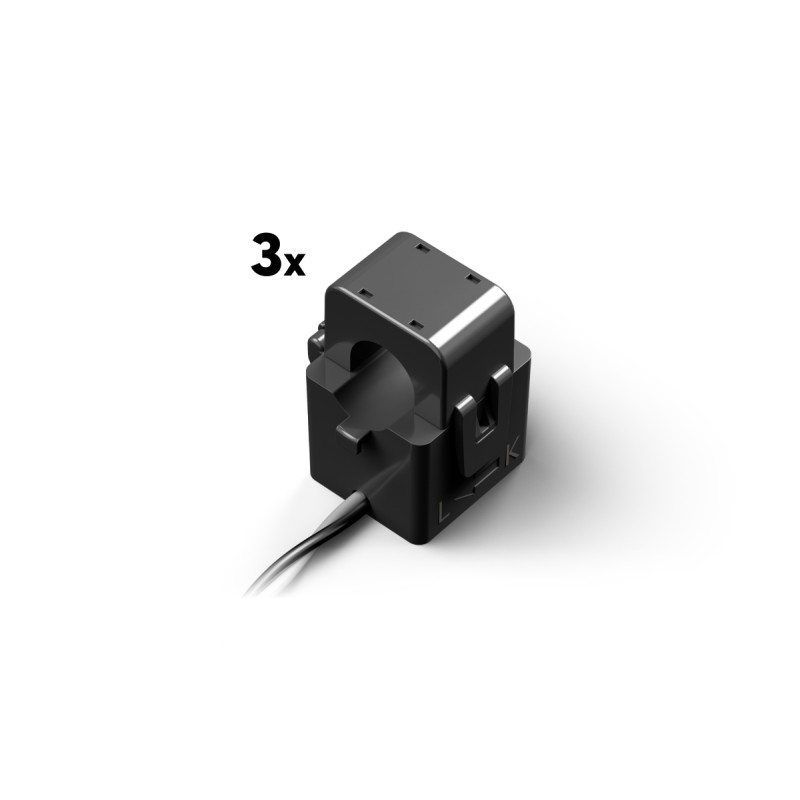

40mA Proudový transformátor 25 A 10 mm (3 ks.)
  • 40mA Proudový transformátor 25 A 10 mm (3 ks.)
  • 40mA Proudový transformátor 25 A 10 mm (3 ks.)
  • 40mA Proudový transformátor 25 A 10 mm (3 ks.)

40mA Proudový transformátor 25 A 10 mm (3 ks.)

100681
Loxone
Kč1,730
Tax excluded
Kč363 Tax
Kč2,093 Tax included
Quantity
3546 Items

Product Details
100681
3546 Items

Data sheet

Ambient Conditions: Temperature
-40 … 55 °C / -40 … 131 °F
Ambient Conditions: Humidity
max. 95 % RH (non-condensing)
Ambient Conditions: Ingress protection
IP40
Weight & Dimensions: Net weight
396 g
Certifications & Standards: Certifications
UL E549933
Ambient Conditions: Storage temperature
-40 … 85 °C / -40 … 185 °F
Electrical Specifications: Rated primary current
25 A
Electrical Specifications: Rated secondary current
40 mA
Electrical Specifications: Accuracy class
3
Electrical Specifications: Ratio error at rated primary
± 1.0%
Electrical Specifications: Rated load
3.9 Ohm
Electrical Specifications: Operating frequency
50/60 Hz
Electrical Specifications: Linear measurement range
5 ... 120 % of rated primary current
Insulation & Safety: Power frequency withstand voltage
4 000 V / 10 s, 1 mA
Insulation & Safety: Insulation resistance
100 MOhm @ 500 VDC
Insulation & Safety: Enclosure flame retardant rating
UL 94-V0
Ambient Conditions: Atmospheric pressure condition
70 … 106 kpa
Secondary Output Cable: Wire cross-section
0.5 mm² / AWG 22
Secondary Output Cable: Length
5 m (trimmable to 1 m)
Secondary Output Cable: Termination
tinned wire ends (5 … 10 mm)
Insulation & Safety: Open circuit protective voltage
6 ... 8 V
Datasheet

Electrical Specifications

Rated primary current 25 A
Rated secondary current 40 mA
Accuracy class 3
Rated load 3.9 Ohm
Operating frequency 50/60 Hz
Linear measurement range 5 ... 120 % of rated primary current
Ratio error at rated primary ± 1.0%
Phase error at rated primary —

Insulation & Safety

Power frequency withstand voltage 4 000 V / 10 s, 1 mA
Open circuit protective voltage 6 ... 8 V
Insulation resistance 100 MOhm @ 500 VDC
Enclosure flame retardant rating UL 94-V0

Ambient Conditions

Temperature -40 … 55 °C / -40 … 131 °F
Storage temperature -40 … 85 °C / -40 … 185 °F
Humidity max. 95 % RH (non-condensing)
Ingress protection IP40
Atmospheric pressure condition 70 … 106 kpa

Secondary Output Cable

Wire cross-section 0.5 mm² / AWG 22
Length 5 m (trimmable to 1 m)
Termination tinned wire ends (5 … 10 mm)

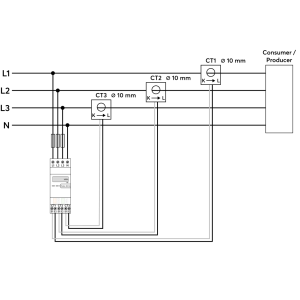

Connection Diagram

Connection Diagram Connection Diagram

Weight & Dimensions

Net weight 396 g

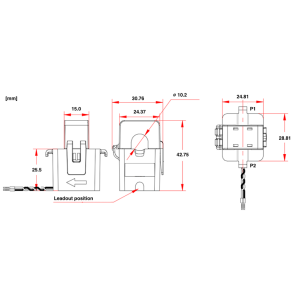

Product dimensions drawing Product dimensions drawing

Certifications & Standards

Certifications UL E549933
Položka Množství
Příbalový leták 1
Comments (0)
Grade
No customer reviews for the moment.
