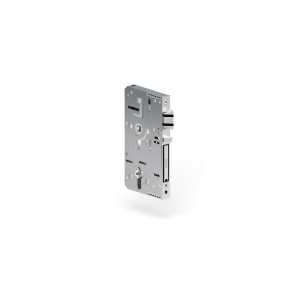

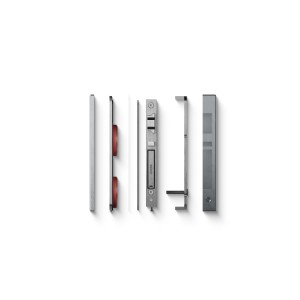

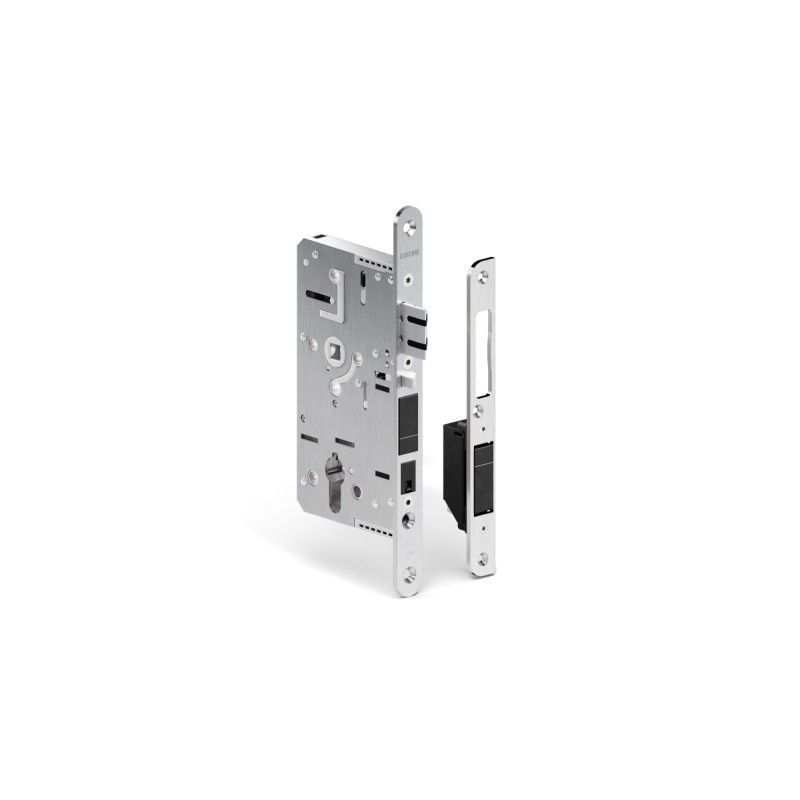

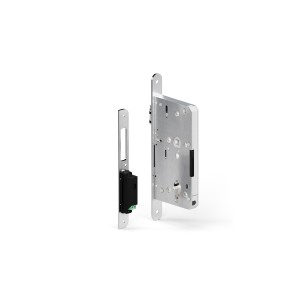

Data sheet
| General |

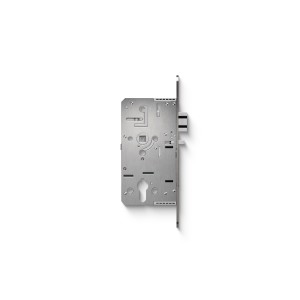

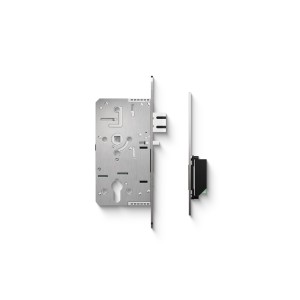

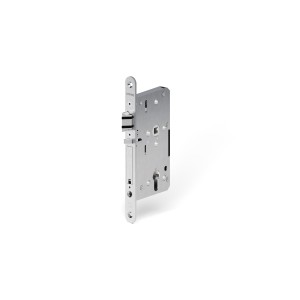

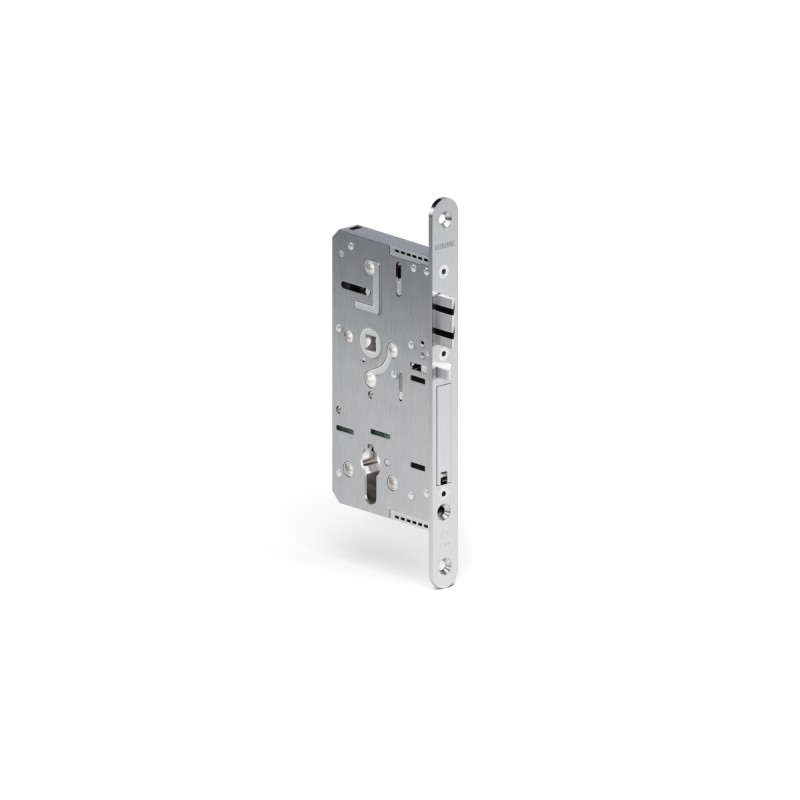

Automatically locking panic lock Latch bolt Auxiliary latch |
|---|---|
| Locking |
for profile cylinder (PZ) for round cylinders (RZ) |
| Battery Lifetime | up to 2 years |
|---|---|

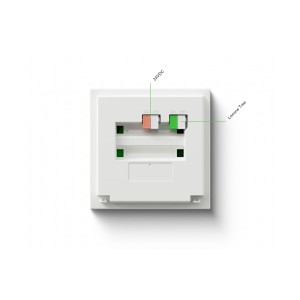

| Battery type |
2x 1.5 V AAA batteries or 1x 1/2 AA 3.6 V battery |
| Backset Options |
Full Leaf Tube Frame 50/55/60/65 mm 35 mm |
|---|---|
| Centres (distance between spindle and cylinder) |
PZ 72/88 mm RZ 78 mm PZ 92 mm |

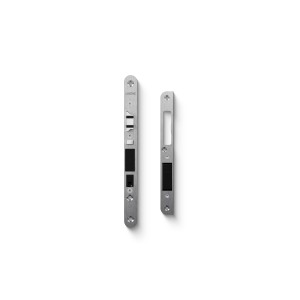

| Latch Bolt with Silent Insert | 20 mm projection |
| Spindle Square | 9 mm |
| Net weight | 744g |
| Total weight | 830g |
| Pack size | 260x150x45 mm |
| LOXONE Air | 868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW internal antenna |
|---|
| Temperature | -20 … 50 °C / -4 … 122 °F |
|---|---|
| Humidity | max. 80 % RH (non-condensing) |
| Ingress protection | IP20 |
| Colours | stainless steel |
|---|---|
| Finish | ground surface |
| Certifications |
EN 179 EN 1125 EN 14846 EN 1634 |
|---|
| Položka | Množství |
|---|---|
| Baterie | 1 |
