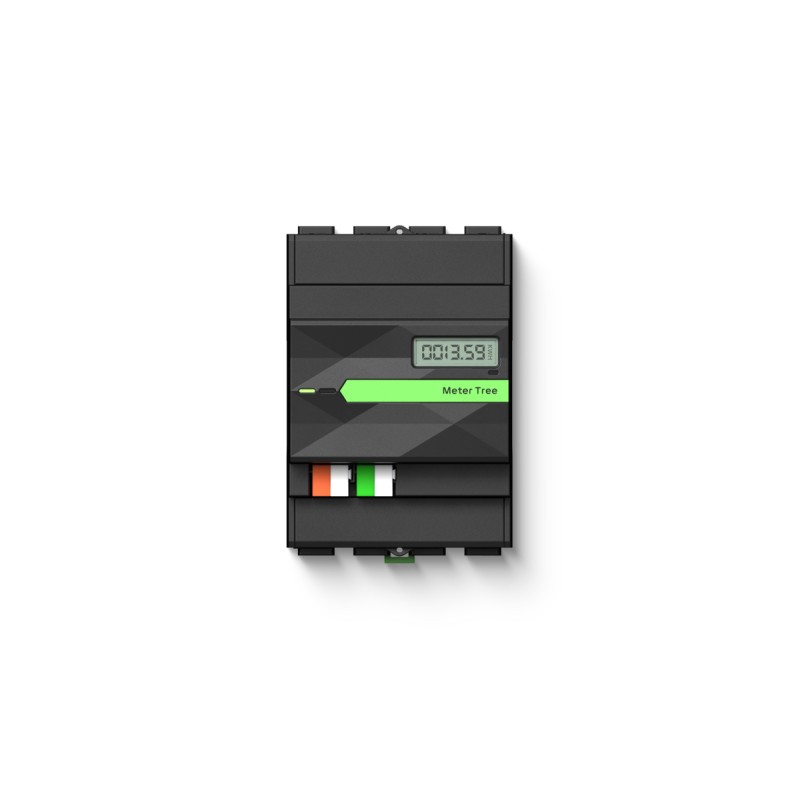

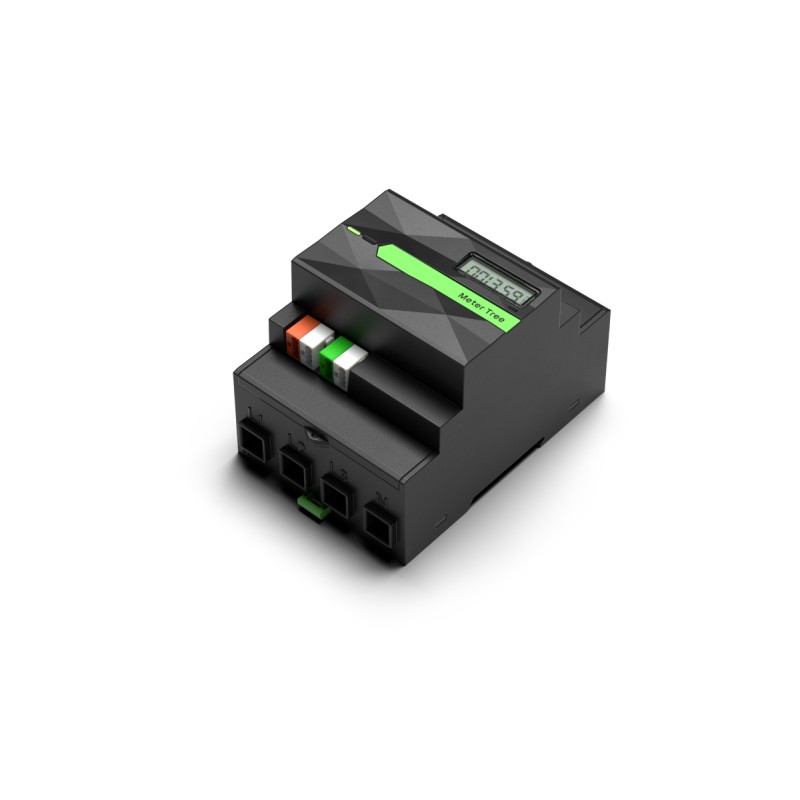

Elektroměr 3fázový Tree

100567
Loxone
Kč4,980
Tax excluded
Kč1,046 Tax
Kč6,026 Tax included
Quantity
9662 Items

Product Details
100567
9662 Items

Data sheet

Product Characteristics: Colours
Black: RAL 9005
Ambient Conditions: Temperature
-40 … 70 °C / -40 … 158 °F
Ambient Conditions: Humidity
max. 95 % RH (non-condensing)
Connection Terminals: Wire cross-section
AC Mains: ; 1.5...25mm² / AWG16...3 *; 24VDC & LOXONE Tree:; 0.28...0.8mm² / AWG23...18; * ferrules required for fine-stranded conductors
Connection Terminals: Stripping length
AC Mains: ; 14...15mm / 0.55...0.59” ; 24VDC & LOXONE Tree: ; 5...6mm / 0.2...0.24"
Connection Terminals: Temperature resistance
AC Mains: ; -40...70°C / -40…158°F; 24VDC & LOXONE Tree: ; -40...105 °C / -40...221°F
Product Characteristics: Mounting type
DIN rail according to EN 50022, 35 mm
Product Characteristics: Finish
Matte
Weight & Dimensions: Net weight
352g
Weight & Dimensions: Product dimensions
72x105x66mm / 2.83x4.13x2.60" (LxWxH), 4 division units
Connection Terminals: Tightening torque
AC Mains: ; 3 N.m / 2.21 lbf.ft; 24VDC & LOXONE Tree: -
Certifications & Standards: Safety class
IP20
Technical Data: Voltage
Range: 100…276VAC; Accuracy: ±0.5%
Technical Data: Power
Range: 0.01...99.9 kW / kVAr / kVA; Accuracy: ±1%
Technical Data: Power consumption
0.4W
Operating Conditions - according to MID 2014/32/EU Annex V: Voltage
Un: 3x230 / 400 VAC, ± 20 %
Operating Conditions - according to MID 2014/32/EU Annex V: Current
Imin: 0.5A / Iref: 10A / Imax: 100A
Operating Conditions - according to MID 2014/32/EU Annex V: Frequency
fn: 50 Hz, ± 2 %
Operating Conditions - according to MID 2014/32/EU Annex V: Power factor
cos: 0.5 inductive … 0.8 capacitive
Operating Conditions - according to MID 2014/32/EU Annex V: Accuracy (Energy)
Class B (2%, @ +5°C … +30°C)
Connection Terminals: Screw drive
AC Mains: ; Pozidriv 2 (PZ2); 24VDC & LOXONE Tree: -
Certifications & Standards: ANSI C12.1 compliant
Accuracy Class 0.5
Technical Data: Current
Range: 0.05...100A; Accuracy: ±0.5%
Technical Data: Power loss at max. load
2W per Phase (at 100A)
Technical Data: Energy
Range: 0...999999 kWh / kVArh; consumption and delivery; Accuracy: Class 1 IEC62053, Class B EN50470
Technical Data: Frequency
Range: 49...61 Hz; Accuracy: ±0.2%

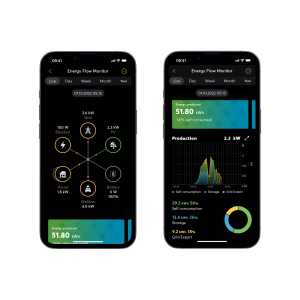

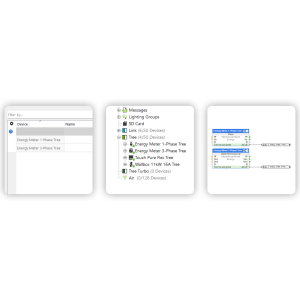

Monitorování energie, na které se můžete spolehnout

Dostupné hodnoty

Napětí mezi fází a nulou

Proud

Činný výkon

Odečet spotřeby měřiče

Odečet dodávky měřiče

Zdánlivý výkon

Jalový výkon

Odečet jalové spotřeby měřiče

Odečet jalové dodávky měřiče

Účiník

Fázový posuv

Frekvence

Datasheet

Technical Data

Voltage 100 ... 480 VAC, 50/60Hz
Current max. 100A (per phase)
Power consumption 0.4W
Power loss at max. load 2W per Phase (at 100A)
Power Range: 0.01...99.9 kW / kVAr / kVA
Accuracy: ±1%
Energy Range: 0...999999 kWh / kVArh
consumption and delivery
Accuracy: Class 1 IEC62053, Class B EN50470
Voltage Range: 100…276VAC
Accuracy: ±0.5%
Current Range: 0.05...100A
Accuracy: ±0.5%
Frequency Range: 49...61 Hz
Accuracy: ±0.2%

Operating Conditions - according to MID 2014/32/EU Annex V

Voltage Un: 3x230 / 400 VAC, ± 20 %
Current Imin: 0.5A / Iref: 10A / Imax: 100A
Frequency fn: 50 Hz, ± 2 %
Power factor cos: 0.5 inductive … 0.8 capacitive
Accuracy (Energy) Class B (2%, @ +5°C … +30°C)

Ambient Conditions

Temperature -40 … 70 °C / -40 … 158 °F
Humidity max. 95 % RH (non-condensing)

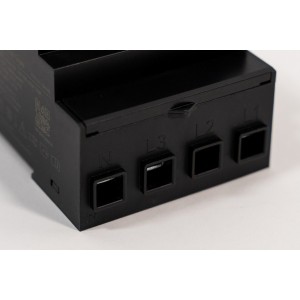

Connection Terminals

Wire cross-section AC Mains:
1.5...25mm² / AWG16...3 *
24VDC & LOXONE Tree:
0.28...0.8mm² / AWG23...18
* ferrules required for fine-stranded conductors
Stripping length AC Mains:
14...15mm / 0.55...0.59”
24VDC & LOXONE Tree:
5...6mm / 0.2...0.24"
Tightening torque AC Mains:
3 N.m / 2.21 lbf.ft
24VDC & LOXONE Tree: -
Temperature resistance AC Mains:
-40...70°C / -40…158°F
24VDC & LOXONE Tree:
-40...105 °C / -40...221°F
Screw drive AC Mains:
Pozidriv 2 (PZ2)
24VDC & LOXONE Tree: -

Connection Diagram

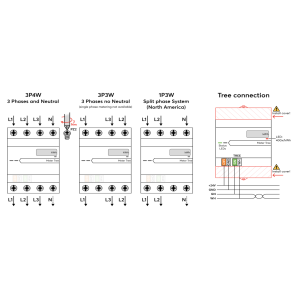

Connection Diagram Connection Diagram

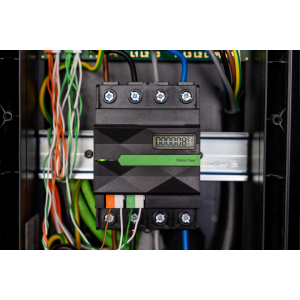

Product Characteristics

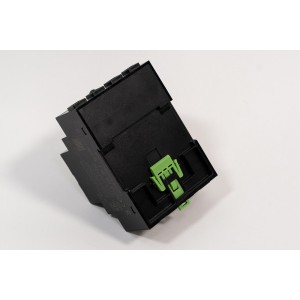

Mounting type DIN rail according to EN 50022, 35 mm
Colours Black: RAL 9005
Finish Matte

Weight & Dimensions

Net weight 352g
Total weight 390 g
Product dimensions 72x105x66mm / 2.83x4.13x2.60" (LxWxH), 4 division units

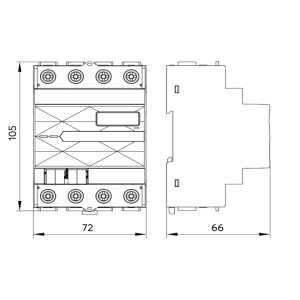

Product dimensions drawing Product dimensions drawing
Pack size 124x78x72mm / 4.88x3.07x2.83" (LxWxH)

Certifications & Standards

Safety class IP20
ANSI C12.1 compliant Accuracy Class 0.5
Položka Množství
Příbalový leták 1
