Touch & Grill Air

Name: Touch & Grill Air
Brand: Loxone
SKU: 100806
Price: 4538 CZK
Availability: InStock

Reference 100806

Brand Loxone

Kč3,750

Tax excluded

Kč788 Tax

Kč4,538 Tax included

Quantity

In stock: 167 Items

Product Details

Reference 100806

In stock 167 Items

Data sheet

Product Characteristics: Colours: Anthracite: RAL 7016
Electrical Specifications: Supply voltage: 5 VDC via Micro USB Power supply, integrated Li-Ion Battery
Electrical Specifications: Power consumption: typ. 0.150 W, max. 4 W
Ambient Conditions: Temperature: 0 … 40 °C / 32 … 104 °F
Ambient Conditions: Humidity: max. 95 % RH (non-condensing)
Ambient Conditions: Ingress protection: IP20
Product Characteristics: Finish: Matte
Weight & Dimensions: Net weight: 418 g
Weight & Dimensions: Product dimensions: 121 x 121 x 97 mm / 4.76 x 4.76 x 3.82” (L x W x H)
Interfaces: LOXONE Air: 868 MHz (SRD Band Europe), 4 channels, max. 15.1 mW e.r.p. ; 915 MHz (ISM Band Region 2), 10 channels, max. 13.2 mW ; internal antenna
Electrical Specifications: Power loss: max. 4 W
Electrical Specifications: Battery Lifetime: Stand-by mode - without connected sensors: max. 1 450 h (max. 2 months) ; ; Continuous operation - with connected sensors: max. 170 h (max. 7 days) ; ; Battery life with active display: max. 7 h
Functional Specifications: Click feedback: Yes
Functional Specifications: Touch points (7): capacitive touch detection
Functional Specifications: Display: time, alarm time, temperature
Functional Specifications: Timer function: adjustable on the device; built-in alarm signal or playback via Audioserver
Functional Specifications: Temperature alarm: built-in alarm signal or via Audioserver when target temperature is reached
Functional Specifications: Temperature sensors (2): Temperature range: -15 ... 300 °C / 5 ... 572 °F,; Cable length: 1 500 mm

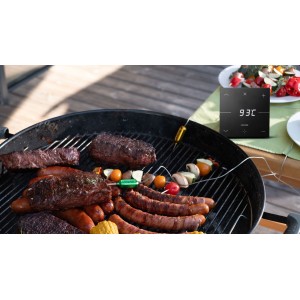

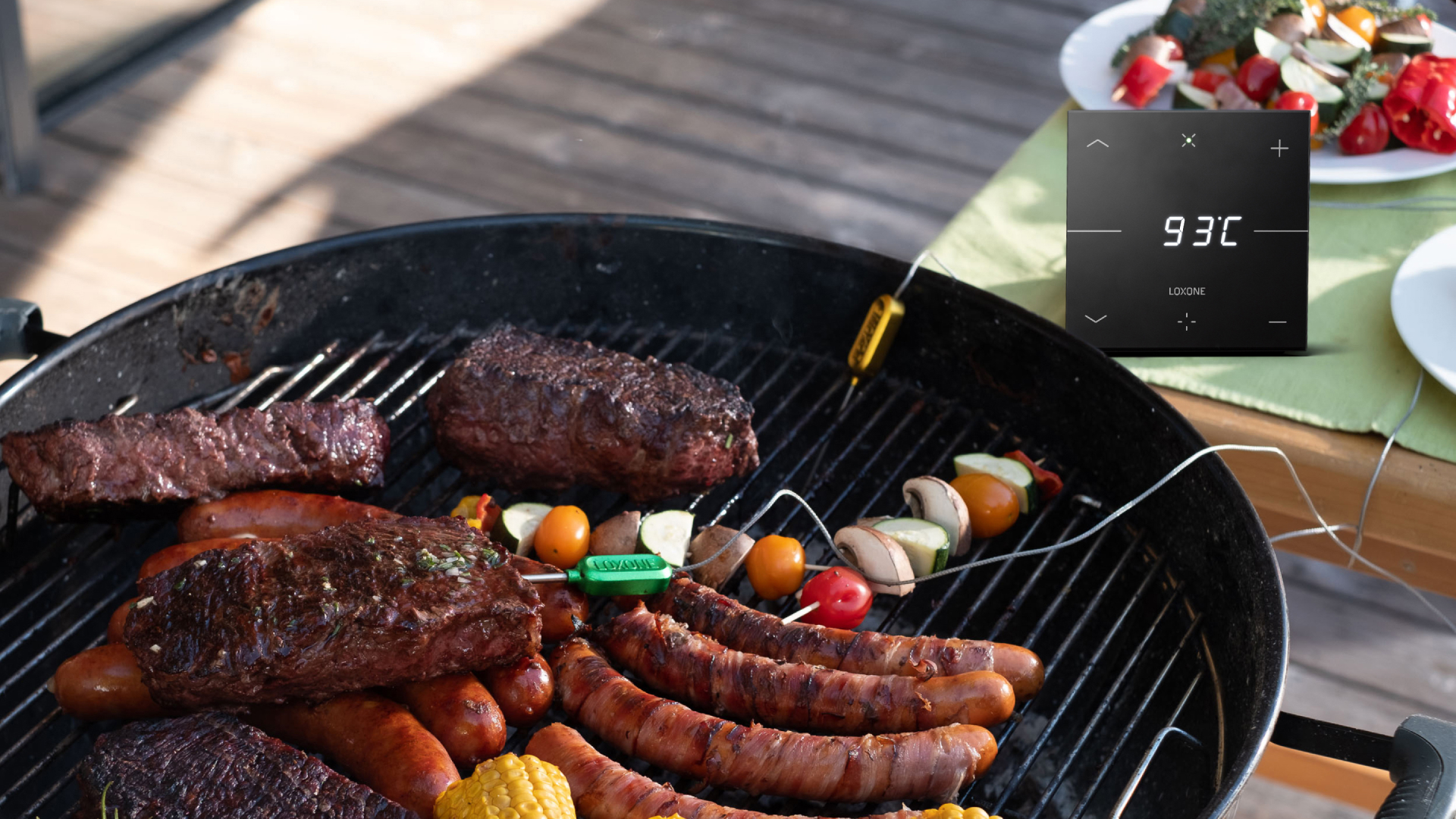

Perfektní teplota? Žádný problém!

Dvě teplotní sondy prvku Touch & Grill umožňují měřit paralelně dvě teploty. Zobrazit je můžete na integrovaném displeji nebo v aplikaci LOXONE.

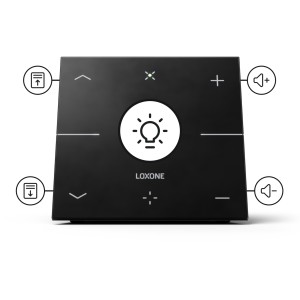

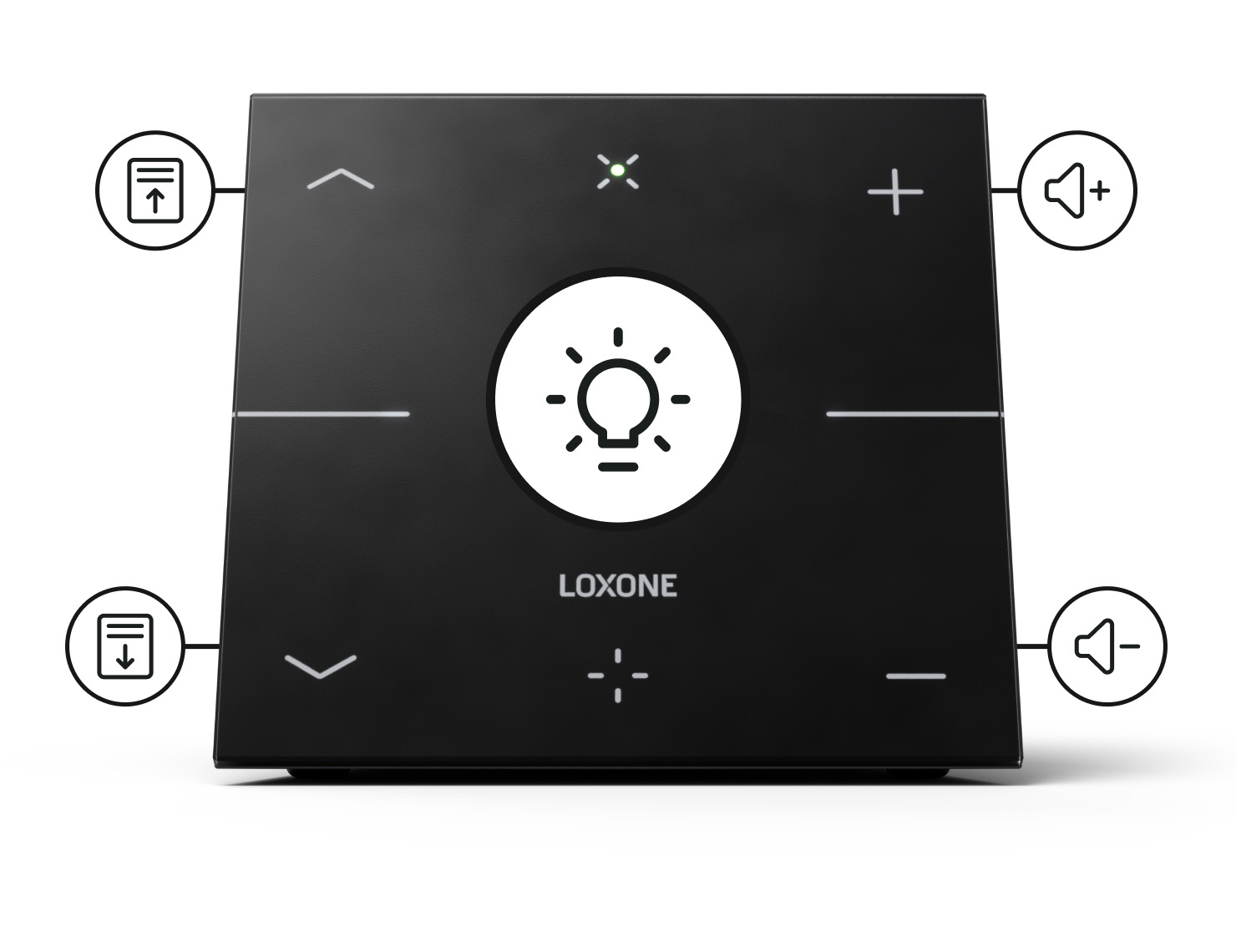

Tlačítko Touch Pure součástí

Doporučujeme využívat dle našeho tlačítkového standardu:

Velké centrální tlačítko pro světlo, malé plochy po stranách pro stínění a hudbu.
Jedno kliknutí: Obsluha nejdůležitějších funkcí v místnosti.
Dvojitý / trojitý dotyk: Ovládání dalších funkcí místnosti, jako je opuštění místnosti nebo opuštění domu.

Datasheet

Electrical Specifications

Supply voltage	5 VDC via Micro USB Power supply, integrated Li-Ion Battery
Power consumption	typ. 0.150 W, max. 4 W
Power loss	max. 4 W
Battery Lifetime	Stand-by mode - without connected sensors: max. 1 450 h (max. 2 months) Continuous operation - with connected sensors: max. 170 h (max. 7 days) Battery life with active display: max. 7 h

Functional Specifications

Touch points (7)	capacitive touch detection
Click feedback	Yes
Display	time, alarm time, temperature
Timer function	adjustable on the device; built-in alarm signal or playback via Audioserver
Temperature alarm	built-in alarm signal or via Audioserver when target temperature is reached
Temperature sensors (2)	Temperature range: -15 ... 300 °C / 5 ... 572 °F, Cable length: 1 500 mm

Interfaces

LOXONE Air	868 MHz (SRD Band Europe), 4 channels, max. 15.1 mW e.r.p. 915 MHz (ISM Band Region 2), 10 channels, max. 13.2 mW internal antenna

Ambient Conditions

Temperature	0 … 40 °C / 32 … 104 °F
Humidity	max. 95 % RH (non-condensing)
Ingress protection	IP20

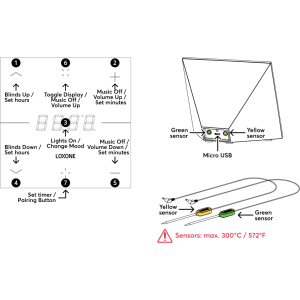

Connection Diagram

Connection Diagram

Product Characteristics

Colours	Anthracite: RAL 7016
Finish	Matte

Weight & Dimensions

Net weight	418 g
Total weight	790 g
Product dimensions	121 x 121 x 97 mm / 4.76 x 4.76 x 3.82” (L x W x H)

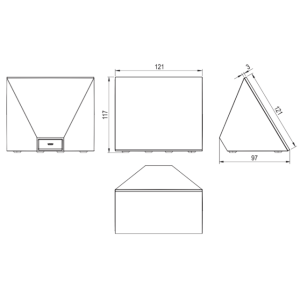

Product dimensions drawing
Pack size	190 x 215 x 91 mm / 7.48 x 8.46 x 3.58” (L x W x H)
