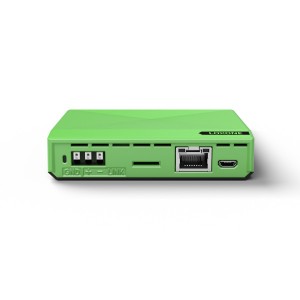

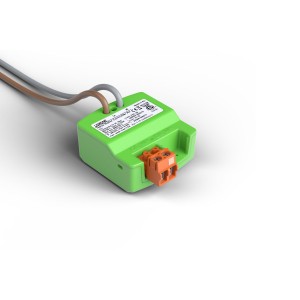

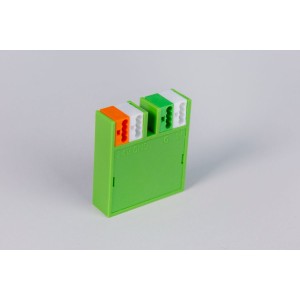

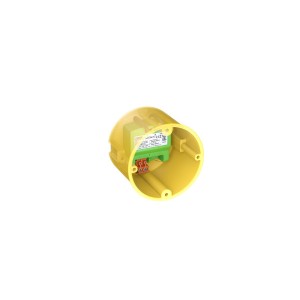

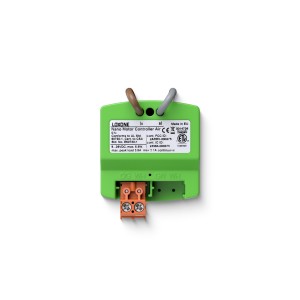

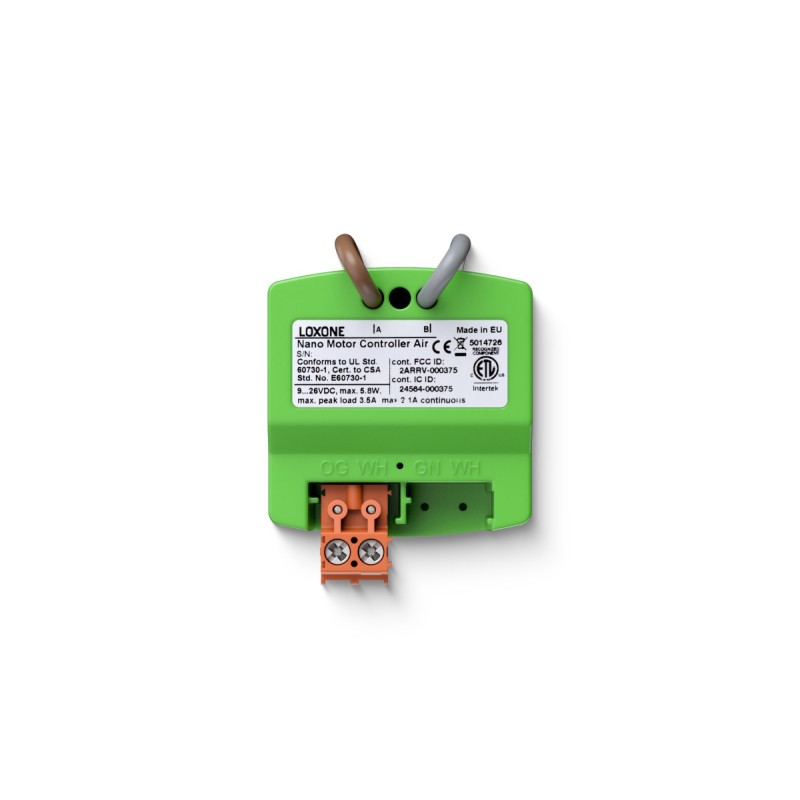

Nano Motor Controller Air

Data sheet

Product Characteristics: Colours

Green: RAL 6018

Electrical Specifications: Supply voltage

9 … 26 VDC

Electrical Specifications: Power consumption

typ. 0.22 W, max. 0.28 W

Electrical Specifications: Power loss at max. load

5.8W; 1.7W

Ambient Conditions: Humidity

max. 95% r.H. (non condensing)

Product Characteristics: Finish

Matte

Weight & Dimensions: Net weight

37g

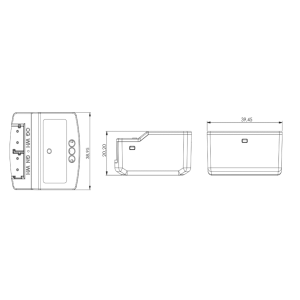

Weight & Dimensions: Product dimensions

39.45x38.95x20.20mm / 1.55x1.53x0.80” (LxWxH)

Electrical Specifications: Temperature

-20...50°C / -4...122°F

Certifications & Standards: Safety class

IP20

Electrical Specifications: PWM frequency

1 ... 10kHz; 400Hz

Connections: Wire cross-section

Connection Cables (Output): 1.5mm² / AWG18; Power Supply: 0.75 ... 2.5mm² / AWG18 ... 13

Connections: Stripping length

Connection Cables (Output): 10mm / 0.4"; Power Supply: 5mm / 0.2”

Connections: Temperature resistance

Connection Cables (Output): min. 80°C / 176°F for IEC, min. 75°C / 167°F for UL; Power Supply: -40 … 105°C / -40 … 221°F

Connections: Tightening torque

Connection Cables (Output): -; Power Supply: 0.35 ... 0.4Nm / 0.26 ... 0.3 lbf ft

Connections: Length

Connection Cables (Output): 150mm / 5.91"; Power Supply: -

Electrical Specifications: Current detection setting range

100 ... 3500mA

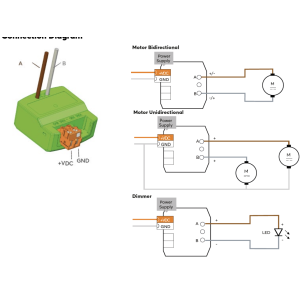

Electrical Specifications: Operating mode

Motor Bidirectional 1 output; Motor Unidirectional 2 outputs; Dimmer 1 output

Electrical Specifications: Maximum total load of outputs

2.1A continuous; 5A peak (

Electrical Specifications: Overcurrent detection setting range

100 ... 3500mA

Interfaces: Interfaces

LOXONE Air: 868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW internal antenna
