| Supply voltage | 9 … 28 V DC |
|---|---|
| Power consumption | typ. 0.18 W |
| Power loss at max. load | 0.60 W |
| LOXONE Link | Connection with Miniserver |
|---|---|
| RS485 |
max. 32 devices max. 1200 m wire length Adjustable baud rate & parity Only 8 data bits are supported. |
| Temperature | -40 … 70 °C / -40 … 158 °F |
|---|---|
| Humidity | max. 95 % RH (non-condensing) |
| Ingress protection | IP20 |
| Terminal type |
24 VDC & LOXONE Link Interface DG220B - |
|---|---|
| Wire cross-section |
0.25 … 0.8 mm² / AWG 23 … 18 0.14 … 0.5 mm² / AWG 26 … 20 |
| Stripping length |
5 mm / 0.2" 7 mm / 0.28" |
| Temperature resistance |
-40 … 105 °C / -40 … 221 °F -40 … 70 °C / -40 … 158 °F |

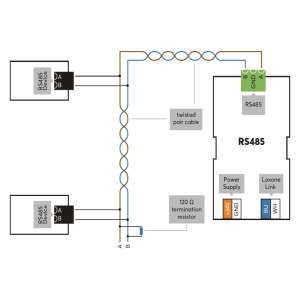

| Connection Diagram |
|
|---|
| Mounting type | DIN rail according to EN 50022, 35 mm |
|---|---|
| Colours | Black: RAL 9005 |
| Finish | Matte |
| Net weight | 65 g |
|---|---|
| Total weight | 85 g |
| Product dimensions | 88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units |

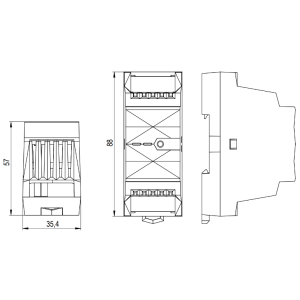

| Product dimensions drawing |
|
| Pack size | 121 x 38 x 62 mm / 4.76 x 1.50 x 2.44” (L x W x H) |
| Certifications |
UL 62368-1 CSA C22.2#62368-1 |
|---|
| Položka | Množství |
|---|---|
| Zakončovací rezistor 120 ohmů | 1 |
| Příbalový leták | 1 |
