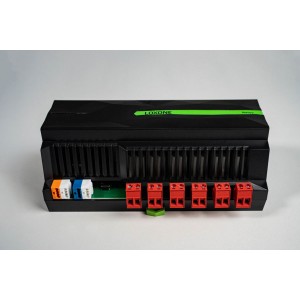

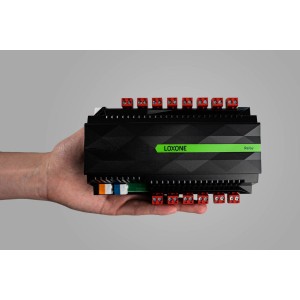

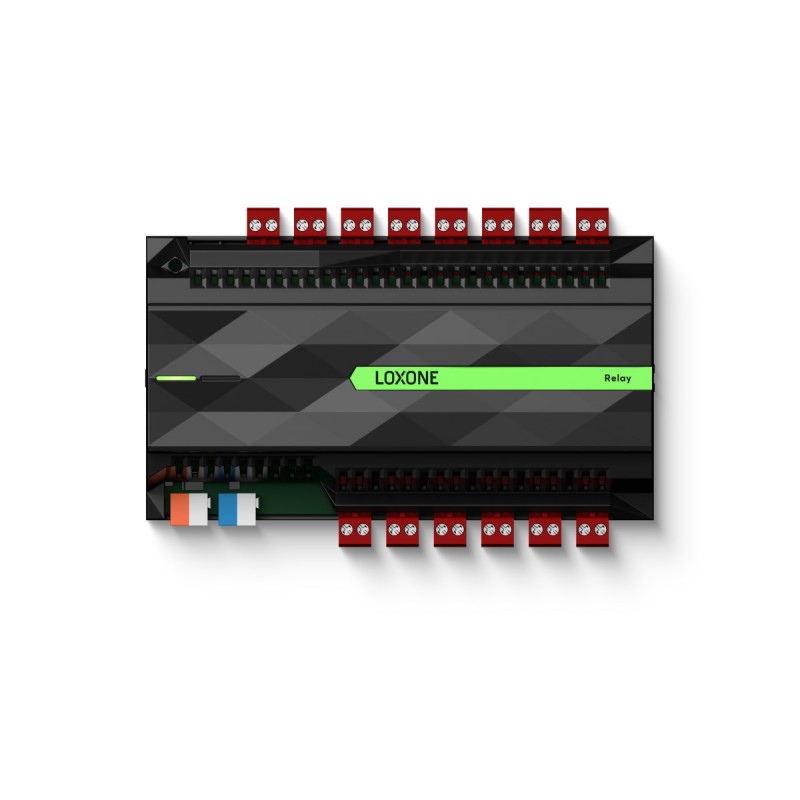

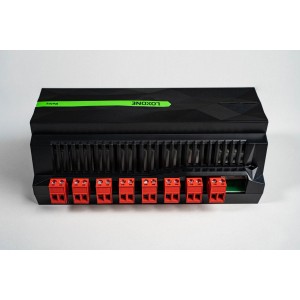

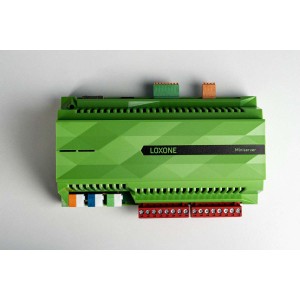

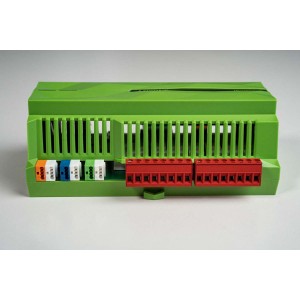

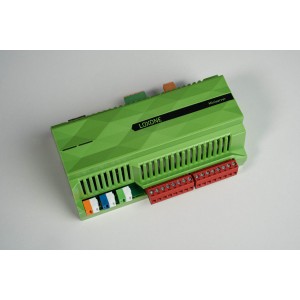

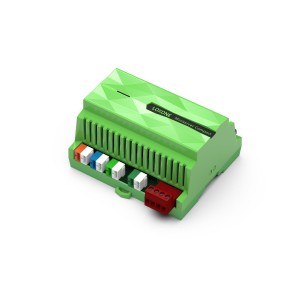

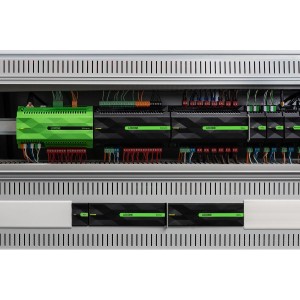

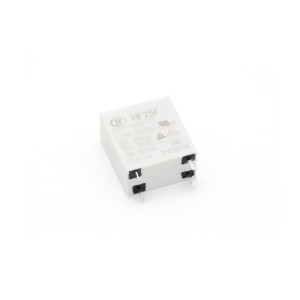

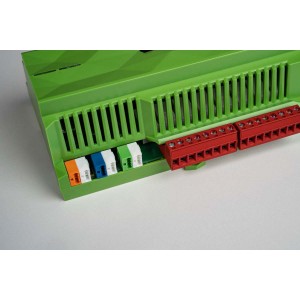

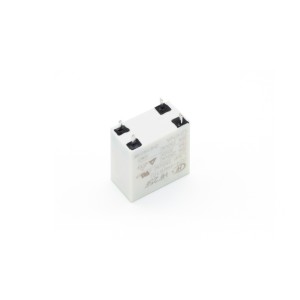

Relay Extension
  • Relay Extension
  • Relay Extension
  • Relay Extension
  • Relay Extension

Relay Extension

100038
Loxone
Kč10,222
Kč10,222 Kč8,448 Kč10,222 Kč8,448
Tax included Tax included Tax excluded Tax included Tax excluded
Kč8,448 Tax excluded
Kč10,222 Tax included
Kč1,774 Tax
Kč8,448 Tax excluded
Kč1,774 Tax
Kč10,222 Tax included
Quantity
Out-of-Stock

Product Details
100038
Datasheet

Electrical Specifications

Supply voltage 18 … 28 VDC
Power consumption typ. 0.7 W (all relays off),
max. 3.8 W (all relays on)
Power loss at max. load 11 W
Max. inrush current 24 A
Outputs 14 digital outputs (Relays), dry contact
250VAC 16A at cos =1 (IEC) total load
whole Extension max. 48A (IEC)
250VAC 15A at cos =1 (UL) total load
whole Extension max. 45A (UL)
max. 30VDC 16A

Interfaces

LOXONE Link connection with Miniserver

Ambient Conditions

Temperature -40 … 40 °C / -40 … 104 °F
Humidity max. 95 % RH (non-condensing)
Ingress protection IP20

Connection Terminals

Terminal type 24 VDC & LOXONE Link
Outputs
DG220B
-
Wire cross-section 0.25 … 0.8 mm² / AWG 23 … 18
0.05 … 2.5 mm² / AWG 30 … 12
Load > 12 A: min. 2.5 mm² / AWG 12
Stripping length 5 mm / 0.2"
6 … 7.5 mm / 0.24 … 0.30”
Tightening torque -
0.5 … 0.6 Nm / 0.37 … 0.44 lbf·ft
Temperature resistance -40 … 105 °C / -40 … 221 °F
min. 80 °C / 176 °F for IEC,
min. 75 °C / 167 °F for UL

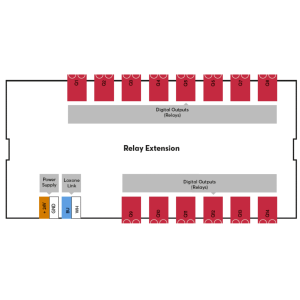

Connection Diagram

Connection Diagram Connection Diagram

Product Characteristics

Mounting type DIN rail according to EN 50022, 35 mm
Colours Black: RAL 9005
Finish Matte

Weight & Dimensions

Net weight 445 g
Total weight 501 g
Product dimensions 158 x 88 x 59 mm / 6.22 x 3.46 x 2.32” (L x W x H)

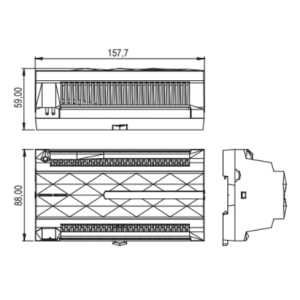

Product dimensions drawing Product dimensions drawing
Pack size 180 x 110 x 65 mm / 7.08 x 4.33 x 2.56” (L x W x H)

Certifications & Standards

Operation Type 1 (UL 60730-1, CSA E 60730-1)
Rated impulse voltage for digital output 2.5 kV (UL 60730-1, max. altitude 2000 m)
Degree of pollution 2
Software class A
Standards UL 60730-1
IEC 60730-1
