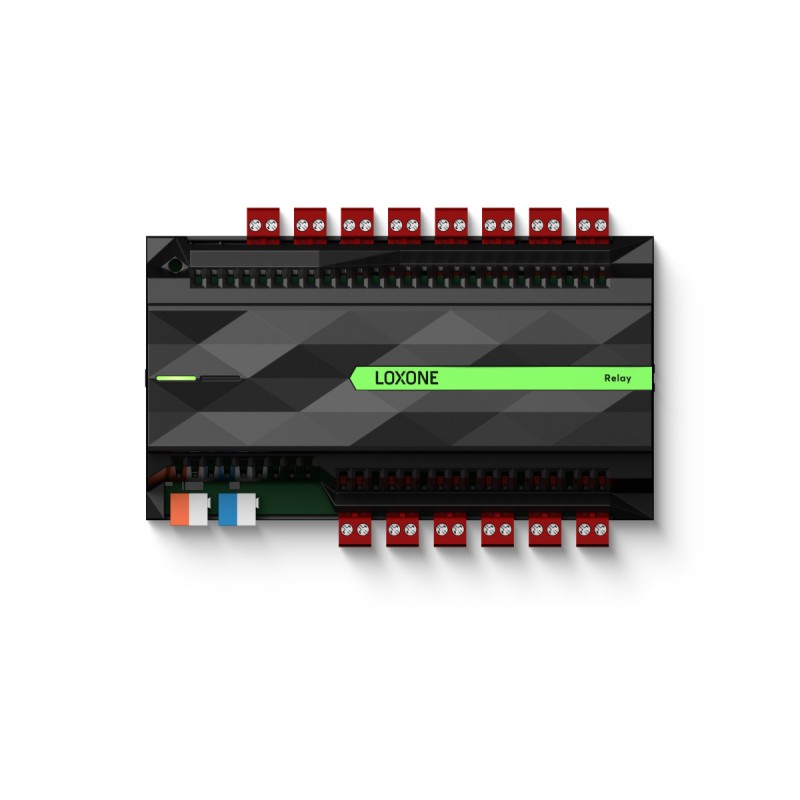

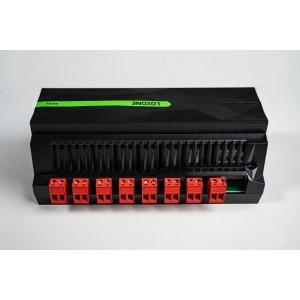

Relay Extension

Parametry

Product Characteristics: Colours

Black: RAL 9005

Electrical Specifications: Supply voltage

18 … 28 VDC

Electrical Specifications: Power consumption

typ. 0.7 W (all relays off), ; max. 3.8 W (all relays on)

Electrical Specifications: Power loss at max. load

11 W

Interfaces: LOXONE Link

Connection with Miniserver

Ambient Conditions: Temperature

-40 … 40 °C / -40 … 104 °F

Ambient Conditions: Humidity

max. 95 % RH (non-condensing)

Ambient Conditions: Ingress protection

IP20

Connection Terminals: Terminal type

24 VDC & LOXONE Link; Outputs; DG220B; -

Connection Terminals: Stripping length

5 mm / 0.2"; 6 … 7.5 mm / 0.24 … 0.30”

Connection Terminals: Temperature resistance

-40 … 105 °C / -40 … 221 °F; min. 80 °C / 176 °F for IEC, ; min. 75 °C / 167 °F for UL

Product Characteristics: Mounting type

DIN rail according to EN 50022, 35 mm

Product Characteristics: Finish

Matte

Weight & Dimensions: Net weight

445 g

Weight & Dimensions: Product dimensions

158 x 88 x 59 mm / 6.22 x 3.46 x 2.32” (L x W x H)

Connection Terminals: Tightening torque

-; 0.5 … 0.6 Nm / 0.37 … 0.44 lbf·ft

Certifications & Standards: Operation

Type 1 (UL 60730-1, CSA E 60730-1)

Certifications & Standards: Degree of pollution

2

Certifications & Standards: Software class

A

Certifications & Standards: Standards

UL 60730-1; IEC 60730-1

Electrical Specifications: Max. inrush current

24 A

Electrical Specifications: Outputs

14 digital outputs (Relays), dry contact; 250VAC 16A at cos =1 (IEC) total load; whole Extension max. 48A (IEC); 250VAC 15A at cos =1 (UL) total load; whole Extension max. 45A (UL); max. 30VDC 16A

Certifications & Standards: Rated impulse voltage for digital output

2.5 kV (UL 60730-1, max. altitude 2000 m)
