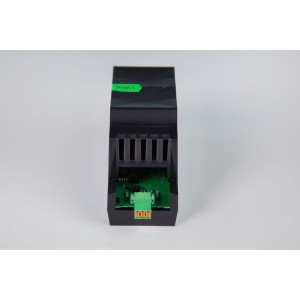

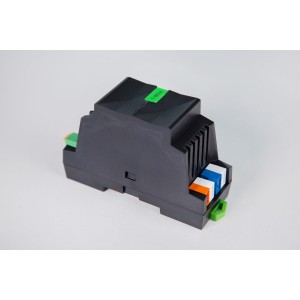

1-Wire Extension
  • 1-Wire Extension
  • 1-Wire Extension
  • 1-Wire Extension
  • 1-Wire Extension
  • 1-Wire Extension
  • 1-Wire Extension

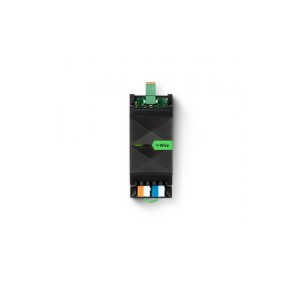

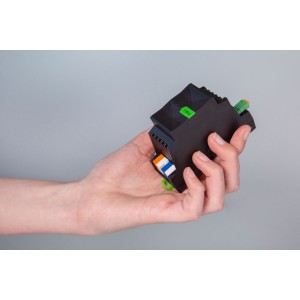

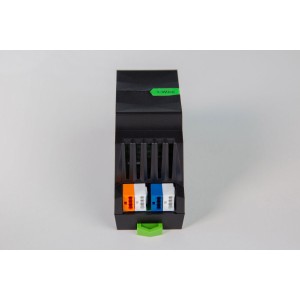

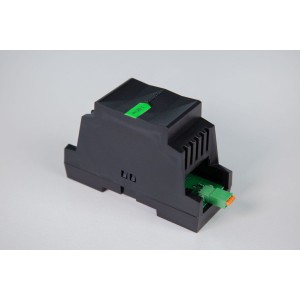

1-Wire Extension

100014
Loxone
Kč4,636
Tax excluded
Kč974 Tax
Kč5,609 Tax included
Quantity
3385 Items

Product Details
100014
3385 Items

Data sheet

Product Characteristics: Colours
Black: RAL 9005
Electrical Specifications: Supply voltage
9 … 28 V DC
Electrical Specifications: Power consumption
typ. 0.28 W
Electrical Specifications: Power loss at max. load
0.31 W
Interfaces: LOXONE Link
Connection with Miniserver
Ambient Conditions: Temperature
-40 … 70 °C / -40 … 158 °F
Ambient Conditions: Humidity
max. 95 % RH (non-condensing)
Ambient Conditions: Ingress protection
IP20
Connection Terminals: Terminal type
24 VDC & LOXONE Link; Interface; DG220B; -
Connection Terminals: Wire cross-section
0.25 … 0.8 mm² / AWG 23 … 18; 0.14 … 0.5 mm² / AWG 26 … 20
Connection Terminals: Stripping length
5 mm / 0.2"; 7 mm / 0.28"
Connection Terminals: Temperature resistance
-40 … 105 °C / -40 … 221 °F; -40 … 70 °C / -40 … 158 °F
Product Characteristics: Mounting type
DIN rail according to EN 50022, 35 mm
Product Characteristics: Finish
Matte
Weight & Dimensions: Net weight
65 g
Weight & Dimensions: Product dimensions
88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units
Certifications & Standards: Certifications
UL 62368-1; CSA C22.2#62368-1
Interfaces: 1-Wire

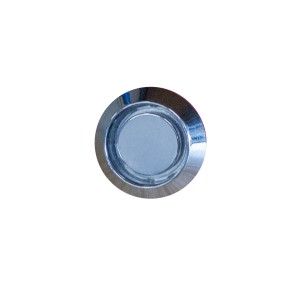

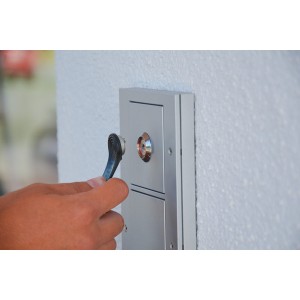

max. 20 sensors, max. 50 mA; or 1 iButton key reader; max. 100 ... 300 m wire length (depending on wiring topology)

Topologie kabeláže

  • Topologie sběrnice bez odboček: Tato topologie je pro kabeláž nejvhodnější. Umožňuje dosáhnout dosahu až 350 m.
  • Topologie sběrnice s krátkými odbočkami: Touto topologií lze dosáhnout podobného výsledku jako u sběrnice bez odboček. Maximální dosah činí až 300 m.
  • Topologie sběrnice s dlouhými odbočkami: Instalaci 1-Wire ve formě sběrnicové topologie s dlouhými odbočkami doporučujeme jen omezeně. Umožňuje délku vedení do 100 m.
  • Hvězdicová topologie: Hvězdicová topologie se hodí pouze pro menší instalace, protože všechny senzorové kabely jsou svedeny do jednoho bodu. Celková délka přitom může dosáhnout max. 100 m.

Podporované 1-Wire senzory

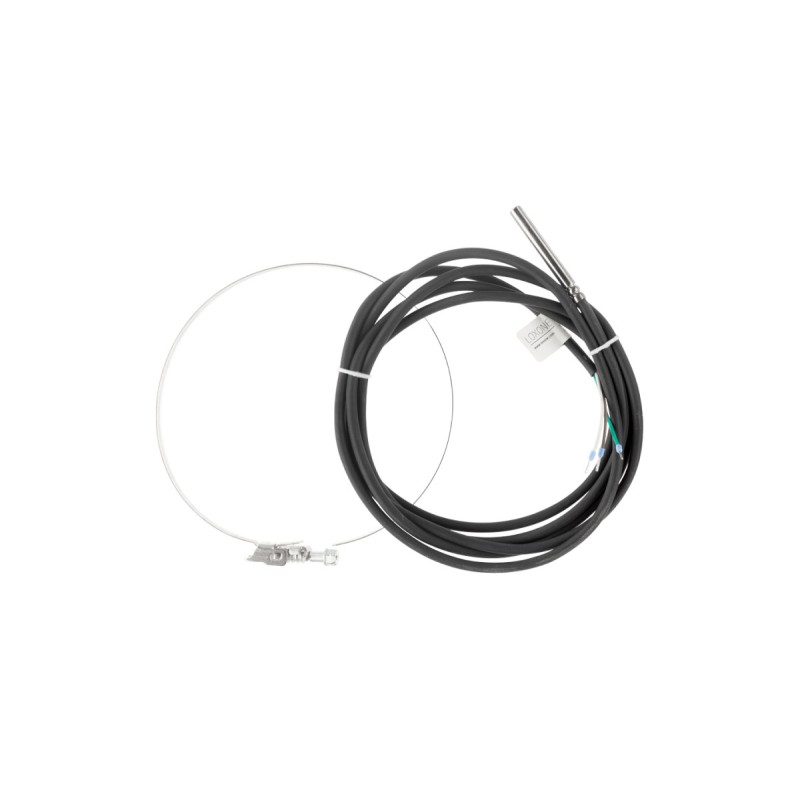

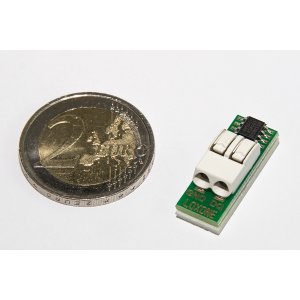

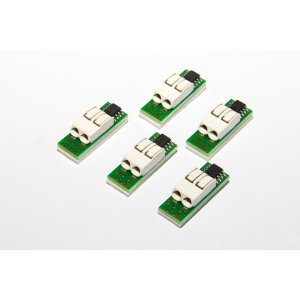

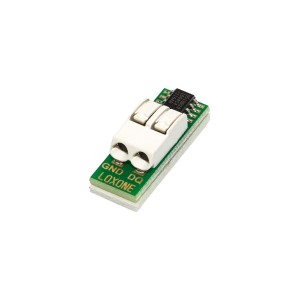

  • DS1822 – Econo 1-Wire Digitální teploměr (Family Code 22)
  • DS18B20 – Programovatelný 1-Wire Digitální teploměr (Family Code 28)
  • DS18S20 – Parasite Power Digitální teploměr (Family Code 20)

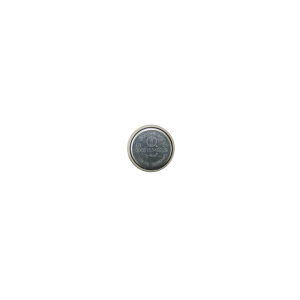

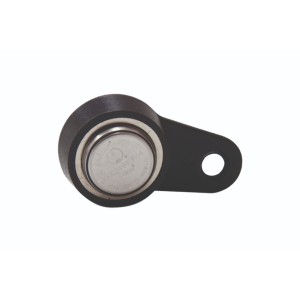

  • DS1963S – iButton (SHA) (Family Code 18)

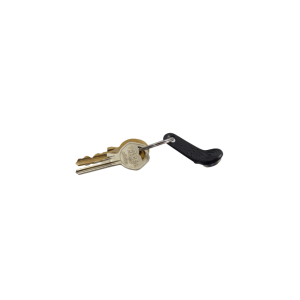

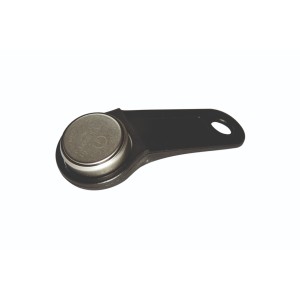

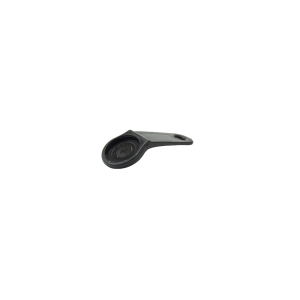

  • DS1990 – iButton (Family Code 01)
  • DS2438 – Smart Battery Monitor (Family Code 26)
Datasheet

Electrical Specifications

Supply voltage 9 … 28 V DC
Power consumption typ. 0.28 W
Power loss at max. load 0.31 W

Interfaces

LOXONE Link Connection with Miniserver
1-Wire max. 20 sensors, max. 50 mA
or 1 iButton key reader
max. 100 ... 300 m wire length (depending on wiring topology)

Ambient Conditions

Temperature -40 … 70 °C / -40 … 158 °F
Humidity max. 95 % RH (non-condensing)
Ingress protection IP20

Connection Terminals

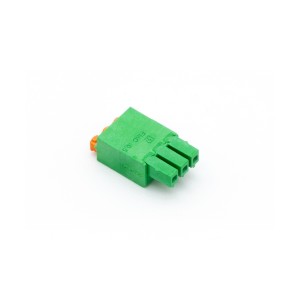

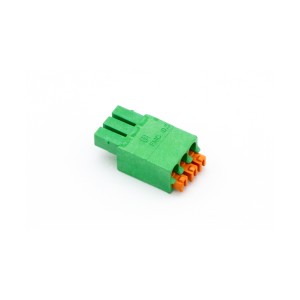

Terminal type 24 VDC & LOXONE Link
Interface
DG220B
-
Wire cross-section 0.25 … 0.8 mm² / AWG 23 … 18
0.14 … 0.5 mm² / AWG 26 … 20
Stripping length 5 mm / 0.2"
7 mm / 0.28"
Temperature resistance -40 … 105 °C / -40 … 221 °F
-40 … 70 °C / -40 … 158 °F

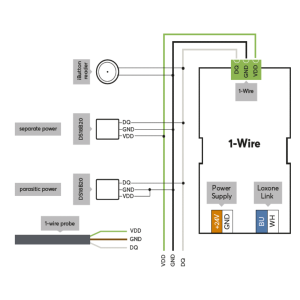

Connection Diagram

Connection Diagram Connection Diagram

Product Characteristics

Mounting type DIN rail according to EN 50022, 35 mm
Colours Black: RAL 9005
Finish Matte

Weight & Dimensions

Net weight 65 g
Total weight 85 g
Product dimensions 88 x 35.4 x 57 mm / 3.46 x 1.39 x 2.24” (L x W x H), 2 division units

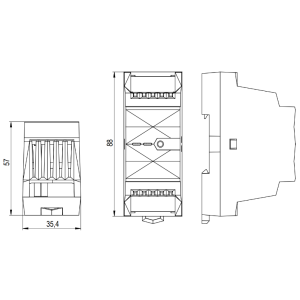

Product dimensions drawing Product dimensions drawing
Pack size 121 x 38 x 62 mm / 4.76 x 1.50 x 2.44” (L x W x H)

Certifications & Standards

Certifications UL 62368-1
CSA C22.2#62368-1
Položka Množství
Příbalový leták 1
